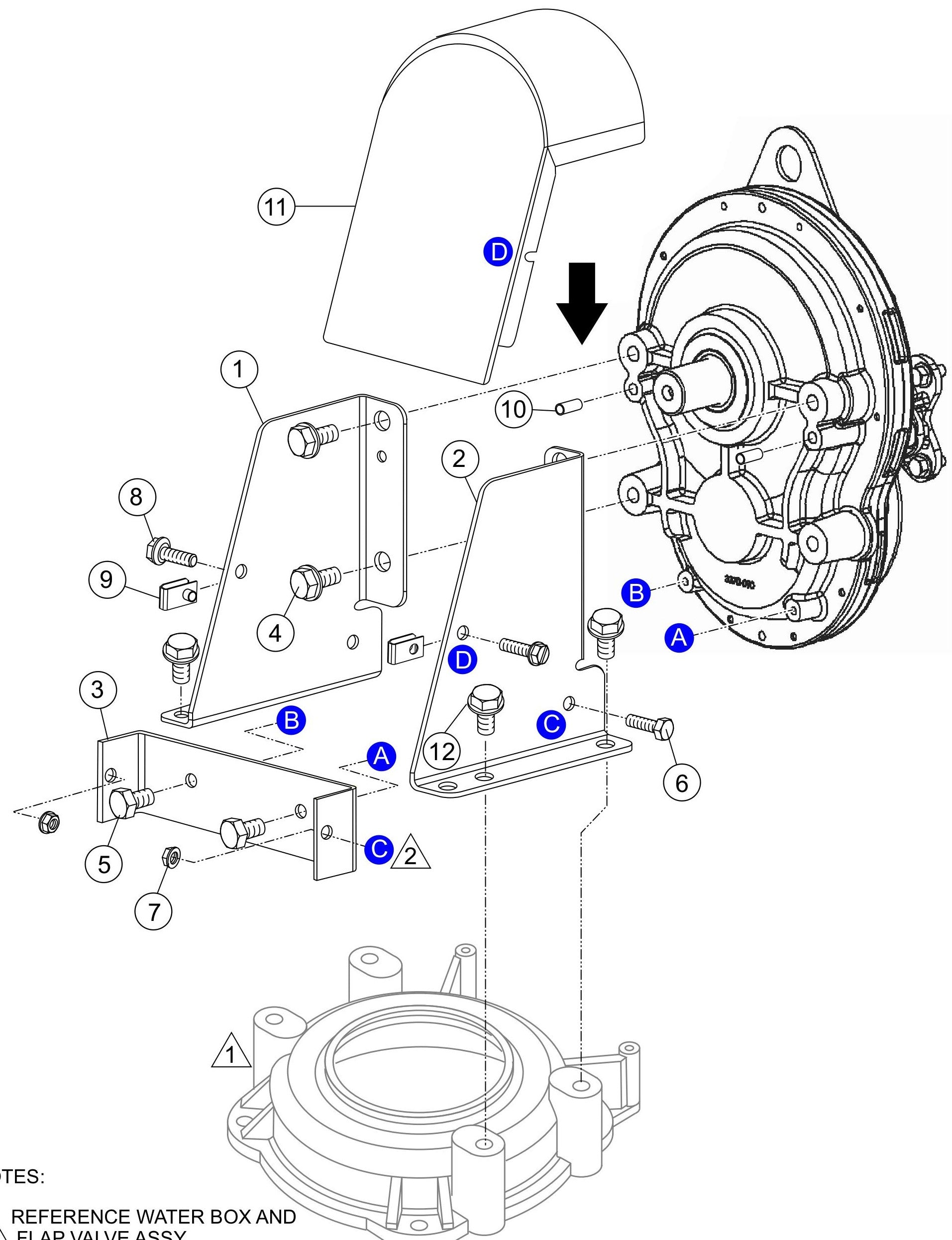

MQ MQD2HA / MQD3HA Gearbox Support Bracket Assembly Parts By Multiquip

MQ MQD2HA / MQD3HA Gearbox Support Bracket Assembly Parts By Multiquip

  • MQ MQD2HA / MQD3HA Gearbox Support Bracket Assembly Parts By Multiquip
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
337010100 Steel Leg, Left for Multiquip MQD2HA MQD3HA Diaphragm Pump
$4.39
2
337010000 Steel Leg, Right for Multiquip MQD2HA MQD3HA Diaphragm Pump
$4.39
3
337010200 C Guard for Multiquip MQD2HA MQD3HA Diaphragm Pump
$4.39
4
176606500 Hex, Flange Screw, 1/2"-13 X 3/4" for Multiquip MQD2HA MQD3HA Diaphragm Pump
$4.39
12
176606500 Hex, Flange Screw, 1/2"-13 X 3/4" for Multiquip MQD2HA MQD3HA Diaphragm Pump
$4.39
5
171500100 Screw, 1/4"-20 X 1/2" for Multiquip MQD2HA MQD3HA Diaphragm Pump
$4.39
6
171900000 Screw, 1/4"-20 X 3/4" for Multiquip MQD2HA MQD3HA Diaphragm Pump
$4.39
7
177600000 Hex Nut, 1/4"-20 for Multiquip MQD2HA MQD3HA Diaphragm Pump
$4.39
8
172200000 Hex Flange Screw, 1/4"-20 X 3/4" for Multiquip MQD2HA MQD3HA Diaphragm Pump
$4.39
9
176901100 Clip Nut, 1/4"-20 for Multiquip MQD2HA MQD3HA Diaphragm Pump
$4.39
10
176901000 Spring Pin, 5/16" X 3/4" for Multiquip MQD2HA MQD3HA Diaphragm Pump
$4.39
11
337010292 Plunger Guard for Multiquip MQD2HA MQD3HA Diaphragm Pump
$4.39
