MQ MQD2HA / MQD3HA Pump Assembly Parts

MQ MQD2HA / MQD3HA Pump Assembly Parts

  • MQ MQD2HA / MQD3HA Pump Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
336019100 Internal Retaining Ring 1-1/2 for Multiquip MQD2HA MQD3HA Diaphragm Pump
$13.85
1
335019000 Internal Retaining Ring for Multiquip MQD2HA MQD3HA Diaphragm Pump
$11.87
2
336019090 Plunger Bearing for Multiquip MQD2HA MQD3HA Diaphragm Pump
$4.39
2
213800090 Plunger Bearing for Multiquip MQD2HA MQD3HA Diaphragm Pump
$170.65
3
336009002 Plunger Arm for Multiquip MQD2HA MQD3HA Diaphragm Pump
$4.39
3
213400002 Plunger Arm for Multiquip MQD2HA MQD3HA Diaphragm Pump
$4.39
5
336009490 Crank Assembly Kit for Multiquip MQD2HA MQD3HA Diaphragm Pump
$4.39
5
214000090 Crank Assembly Kit for Multiquip MQD2HA MQD3HA Diaphragm Pump
$4.39
9
214800000 Oil Seal 1-1/4" X 1-3/4" X 1/4" for Multiquip MQD2HA MQD3HA Diaphragm Pump
$40.65
10
337009001 Gear Box Output Half for Multiquip MQD2HA MQD3HA Diaphragm Pump
$4.39
23
337009001 Gear Box Output Half for Multiquip MQD2HA MQD3HA Diaphragm Pump
$4.39
11
335419000 Output Ball Bearing #6307 for Multiquip MQD2HA MQD3HA Diaphragm Pump
$60.79
12
171700200 Dowel Pin, 1/4" X 1" for Multiquip MQD2HA MQD3HA Diaphragm Pump
$11.88
13
335419100 Intermed. Ball Bearing #6304, 20X52X15 for Multiquip MQD2HA MQD3HA Diaphragm Pump
$20.78
14
335430000 Gasket for Multiquip MQD2HA MQD3HA Diaphragm Pump
$20.83
15
335412100 Idler Pinion Shaft for Multiquip MQD2HA MQD3HA Diaphragm Pump
$72.13
16
215700000 Woodruff Key #406 1/8" X 3/4" for Multiquip MQD2HA MQD3HA Diaphragm Pump
$11.87
17
335414100 Output Shaft for Multiquip MQD2HA MQD3HA Diaphragm Pump
$4.39
17
335414000 Output Shaft for Multiquip MQD2HA MQD3HA Diaphragm Pump
$149.54
18
214100000 Woodruff Key #1008 5/16" X 1" for Multiquip MQD2HA MQD3HA Diaphragm Pump
$13.85
19
335412000 Output Gear for Multiquip MQD2HA MQD3HA Diaphragm Pump
$498.78
20
214900000 Internal Spur Gear for Multiquip MQD2HA MQD3HA Diaphragm Pump
$260.39
21
180606400 External Retaining Ring 1-1/8" for Multiquip MQD2HA MQD3HA Diaphragm Pump
$11.87
22
335419200 Idler Ball Bearing #6302, 15X42X13 for Multiquip MQD2HA MQD3HA Diaphragm Pump
$40.65
24
337009101 Gear Box Input Half for Multiquip MQD2HA MQD3HA Diaphragm Pump
$4.39
25
176700200 Npt Pipe Plug 1/4" for Multiquip MQD2HA MQD3HA Diaphragm Pump
$4.75
26
335410600 Lift Bracket for Multiquip MQD2HA MQD3HA Diaphragm Pump
$15.83
28
171800700 Bolt 1/4"-20 X 1" for Multiquip MQD2HA MQD3HA Diaphragm Pump
$4.39
29
176700900 Npt Pipe Plug 1/4" for Multiquip MQD2HA MQD3HA Diaphragm Pump
$4.39
30
335419400 Bearing, Needle 30X37X12 for Multiquip MQD2HA MQD3HA Diaphragm Pump
$59.81
31
3SXB17090 Npt Plug And O-Ring, 1/2" for Multiquip MQD2HA MQD3HA Diaphragm Pump
$4.39
33
337012200 Input Pinion Ball Bearing Keyed for Multiquip MQD2HA MQD3HA Diaphragm Pump
$4.39
34
171100100 Set Screw, 1/4-20" X 1/4" for Multiquip MQD2HA MQD3HA Diaphragm Pump
$4.39
35
214800100 Oil Seal for Multiquip MQD2HA MQD3HA Diaphragm Pump
$45.75
37
337009301 Adapter, Gasoline Engine for Multiquip MQD2HA MQD3HA Diaphragm Pump
$4.39
38
174500200 Flange Screw, 5/16"-18 X 3/4" for Multiquip MQD2HA MQD3HA Diaphragm Pump
$4.27
39
338040290 Gearbox Assy., Complete 2-Inch for Multiquip MQD2HA MQD3HA Diaphragm Pump
$4.39
39
337040290 Gearbox Assy., Complete 3-Inch for Multiquip MQD2HA MQD3HA Diaphragm Pump
$4.39
39
 337009096 3″ Gas Engine Gearbox Assembly for MQ Diaphragm Pumps 337040290
$1,350.00
27
Call for Price call for price call for price
View full details

Frequently asked questions

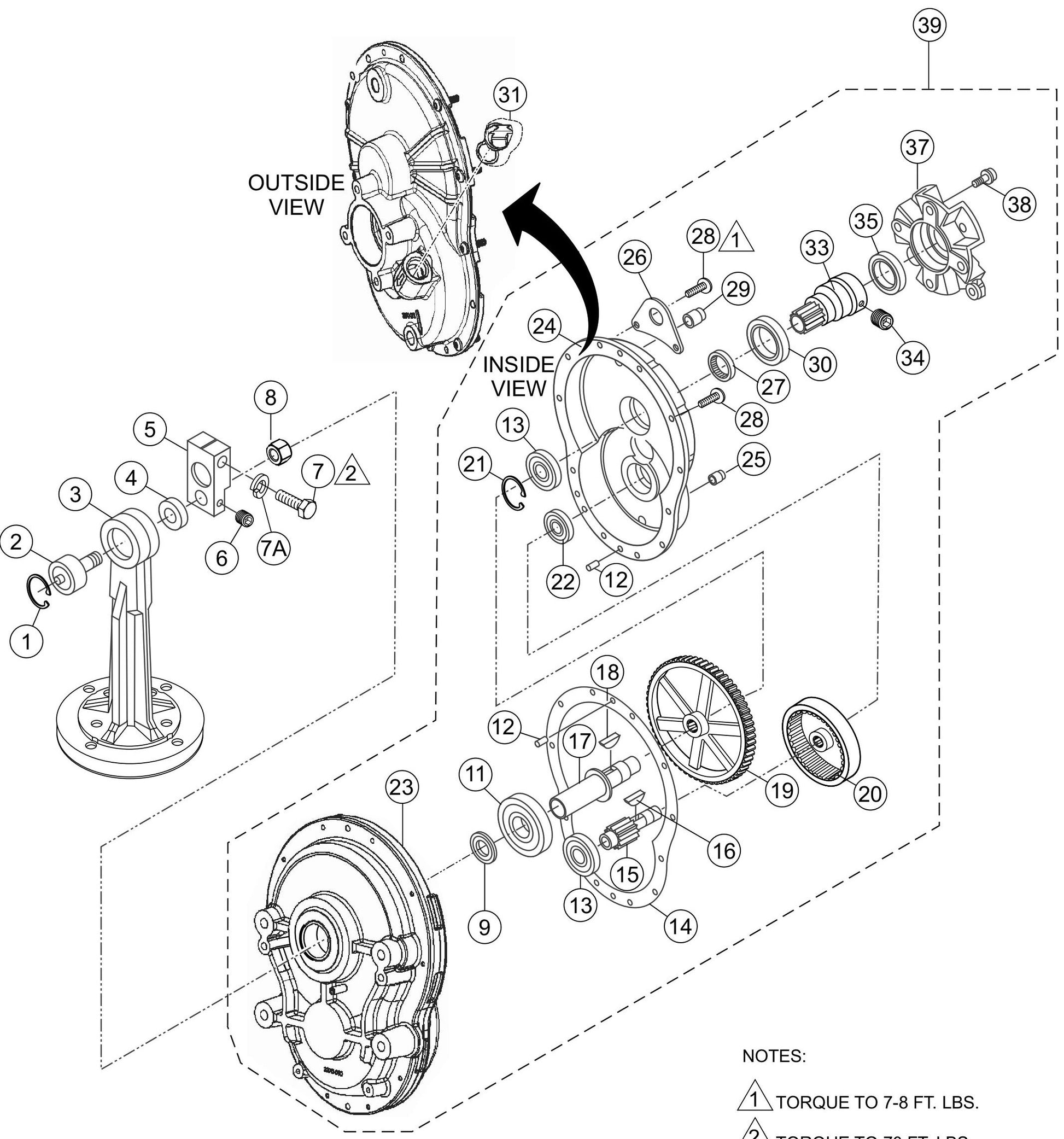

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
