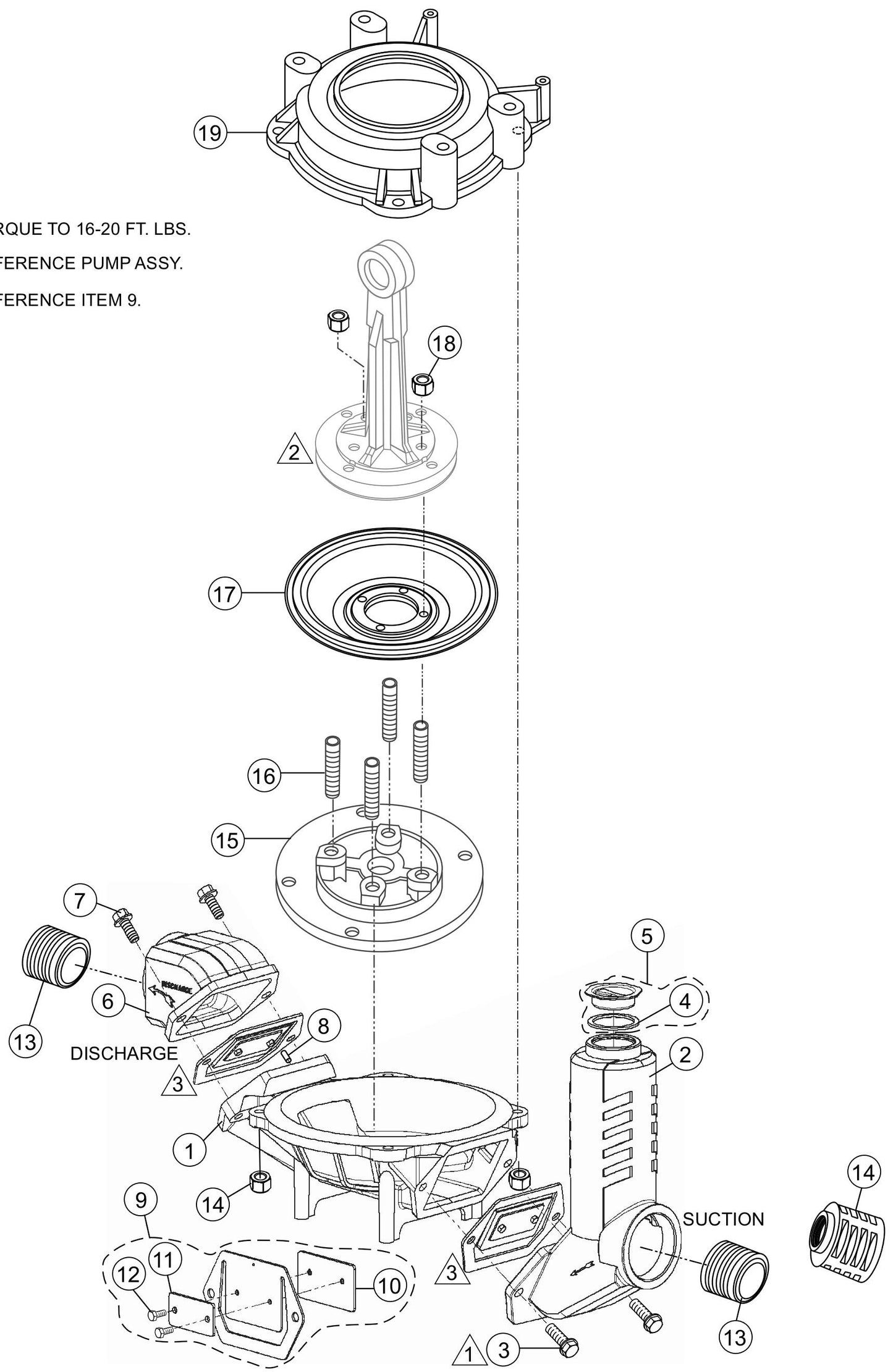

MQ MQD2HA / MQD3HA Waterbox And Flap Valve Assembly Parts

MQ MQD2HA / MQD3HA Waterbox And Flap Valve Assembly Parts

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
336000100 Well for Multiquip MQD2HA MQD3HA Diaphragm Pump
$4.39
1
212000100 Well for Multiquip MQD2HA MQD3HA Diaphragm Pump
$717.75
2
336005000 Suction Plate for Multiquip MQD2HA MQD3HA Diaphragm Pump
$4.39
2
212300000 Suction Plate for Multiquip MQD2HA MQD3HA Diaphragm Pump
$4.39
3
175700700 Hex Flange Screw, 3/8"-16 X 1-1/4" Grd. 5. for Multiquip MQD2HA MQD3HA Diaphragm Pump
$4.39
7
175700700 Hex Flange Screw, 3/8"-16 X 1-1/4" Grd. 5. for Multiquip MQD2HA MQD3HA Diaphragm Pump
$4.39
3
176601000 Hex Flange Screw, 1/2"-13 X 1-1/4" Grd. 5 for Multiquip MQD2HA MQD3HA Diaphragm Pump
$4.39
7
176601000 Hex Flange Screw, 1/2"-13 X 1-1/4" Grd. 5 for Multiquip MQD2HA MQD3HA Diaphragm Pump
$4.39
5
212400000 Plug, 2 & 3-Inch Fill for Multiquip MQD2H MQD3H Diaphragm Pump
$14.22
6
336005201 Discharge Plate for Multiquip MQD2H MQD3H Diaphragm Pump
$135.49
8
212100000 Retainer Pin 1/8" X 3/8" for Multiquip MQD2H MQD3H Diaphragm Pump
$11.86
9
336007090 Flap Valve 2-Inch for Multiquip MQD2H MQD3H Diaphragm Pump
$68.62
9
335407090 Flap Valve 3-Inch for Multiquip MQD2H MQD3H Diaphragm Pump
$71.14
13
C36699990 Npt Pipe Nipples (Pack Of Two) for Multiquip MQD2HA MQD3HA Diaphragm Pump
$4.39
13
327017390 Npt Pipe Nipples (Pack Of Two) for Multiquip MQD2HA MQD3HA Diaphragm Pump
$4.39
14
C23017000 Strainer 2-Inch for Multiquip MQD2H MQD3H Diaphragm Pump
$43.98
14
168000000 Strainer 3-Inch for Multiquip MQD2H MQD3H Diaphragm Pump
$72.96
15
338009200 Diaphragm Retainer Plate for Multiquip MQD2HA MQD3HA Diaphragm Pump
$4.39
15
337002000 Diaphragm Retainer Plate for Multiquip MQD2HA MQD3HA Diaphragm Pump
$4.39
16
176001200 Stud, 3/8"-16 X 2" for Multiquip MQD2HA MQD3HA Diaphragm Pump
$4.39
16
176600700 Stud, 3/8"-16 X 2" for Multiquip MQD2HA MQD3HA Diaphragm Pump
$4.39
17
338030000 Diaphragm 2-Inch for Multiquip MQD2HA MQD3HA Diaphragm Pump
$4.39
17
337030000 Diaphragm 3-Inch for Multiquip MQD2HA MQD3HA Diaphragm Pump
$170.50
18
178000000 Nut, Hex 3/8"-16 for Multiquip MQD2H MQD3H Diaphragm Pump
$4.39
18
176603600 Nut, Hex Heavy 7/16" for Multiquip MQD2HA MQD3HA Diaphragm Pump
$4.39
19
336002001 Base for Multiquip MQD2HA MQD3HA Diaphragm Pump
$419.61
19
335400100 Base for Multiquip MQD2HA MQD3HA Diaphragm Pump
$4.39
