MQ MQD2H/MQD3H Water box And Flap Valve Assembly Parts By Multiquip

MQ MQD2H/MQD3H Water box And Flap Valve Assembly Parts By Multiquip

  • MQ MQD2H/MQD3H Water box And Flap Valve Assembly Parts By Multiquip
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
336005001 Suction Priming Chamber for Multiquip MQD2H MQD3H Diaphragm Pump
$233.99
1
212300001 Suction Priming Chamber for Multiquip MQD2H MQD3H Diaphragm Pump
$292.70
2
212400000 Plug, 2 & 3-Inch Fill for Multiquip MQD2H MQD3H Diaphragm Pump
$14.22
3
212500000 Priming Plug Gasket, 2 & 3-Inch for Multiquip MQD2H MQD3H Diaphragm Pump
$11.87
4
316017000 Npt Pipe Nipples (Pack Of Two) for Multiquip MQD2H MQD3H Diaphragm Pump
$44.46
4
327017000 Npt Pipe Nipples (Pack Of Two) for Multiquip MQD2H MQD3H Diaphragm Pump
$87.96
5
175900100 Hex Flange Screw, 3/8"-16 X 1-1/2" Grd.5 for Multiquip MQD2H MQD3H Diaphragm Pump
$4.39
5
176601300 Hex Flange Screw, 1/2"-13 X 1-1/2" Grd.5 for Multiquip MQD2H MQD3H Diaphragm Pump
$6.59
5
176601300 Hex Flange Screw, 1/2"-13 X 1-1/2" Grd.5 for Multiquip MQD2H MQD3H Diaphragm Pump
$6.59
6
212100000 Retainer Pin 1/8" X 3/8" for Multiquip MQD2H MQD3H Diaphragm Pump
$11.86
7
336002001 Pump Base for Multiquip MQD2H MQD3H Diaphragm Pump
$419.61
7
335400101 Pump Base for Multiquip MQD2H MQD3H Diaphragm Pump
$509.85
8
336007090 Flap Valve 2-Inch for Multiquip MQD2H MQD3H Diaphragm Pump
$68.62
8
335407090 Flap Valve 3-Inch for Multiquip MQD2H MQD3H Diaphragm Pump
$71.14
11
336000101 Pump Well for Multiquip MQD2H MQD3H Diaphragm Pump
$506.70
11
212000001 Pump Well for Multiquip MQD2H MQD3H Diaphragm Pump
$664.83
12
336005201 Discharge Plate for Multiquip MQD2H MQD3H Diaphragm Pump
$135.49
12
213100001 Discharge Plate for Multiquip MQD2H MQD3H Diaphragm Pump
$181.96
13
176001100 Carriage Bolt 3/8"-16 X 2-1/4" for Multiquip MQD2H MQD3H Diaphragm Pump
$4.39
13
176601500 Carriage Bolt 1/2"-13 X 2" for Multiquip MQD2H MQD3H Diaphragm Pump
$19.65
14
336009200 Diaphragm Retainer Plate for Multiquip MQD2H MQD3H Diaphragm Pump
$91.45
14
213300000 Diaphragm Retainer Plate for Multiquip MQD2H MQD3H Diaphragm Pump
$150.74
15
336030000 Diaphragm 2-Inch for Multiquip MQD2H MQD3H Diaphragm Pump
$152.91
15
213200000 Diaphragm 3-Inch for Multiquip MQD2H MQD3H Diaphragm Pump
$153.05
16
C23017000 Strainer 2-Inch for Multiquip MQD2H MQD3H Diaphragm Pump
$43.98
16
168000000 Strainer 3-Inch for Multiquip MQD2H MQD3H Diaphragm Pump
$72.96
17
178000000 Nut, Hex 3/8"-16 for Multiquip MQD2H MQD3H Diaphragm Pump
$4.39
17
178200100 Nut, Hex 1/2"-13 for Multiquip MQD2H MQD3H Diaphragm Pump
$4.39
21
178200100 Nut, Hex 1/2"-13 for Multiquip MQD2H MQD3H Diaphragm Pump
$4.39
21
178200100 Nut, Hex 1/2"-13 for Multiquip MQD2H MQD3H Diaphragm Pump
$4.39
18
176601600 Bolt 1/2"-13 X 2-1/4" for Multiquip MQD2H MQD3H Diaphragm Pump
$4.39
18
176601600 Bolt 1/2"-13 X 2-1/4" for Multiquip MQD2H MQD3H Diaphragm Pump
$4.39
19
179800200 Flat Washer 1/2" for Multiquip MQD2H MQD3H Diaphragm Pump
$4.39
19
179800200 Flat Washer 1/2" for Multiquip MQD2H MQD3H Diaphragm Pump
$4.39
20
179800100 Split Lockwasher 1/2" for Multiquip MQD2H MQD3H Diaphragm Pump
$11.87
20
179800100 Split Lockwasher 1/2" for Multiquip MQD2H MQD3H Diaphragm Pump
$11.87
20
179300100 Split Lockwasher 3/8" for Multiquip MQD2H MQD3H Diaphragm Pump
$4.27
View full details

Frequently asked questions

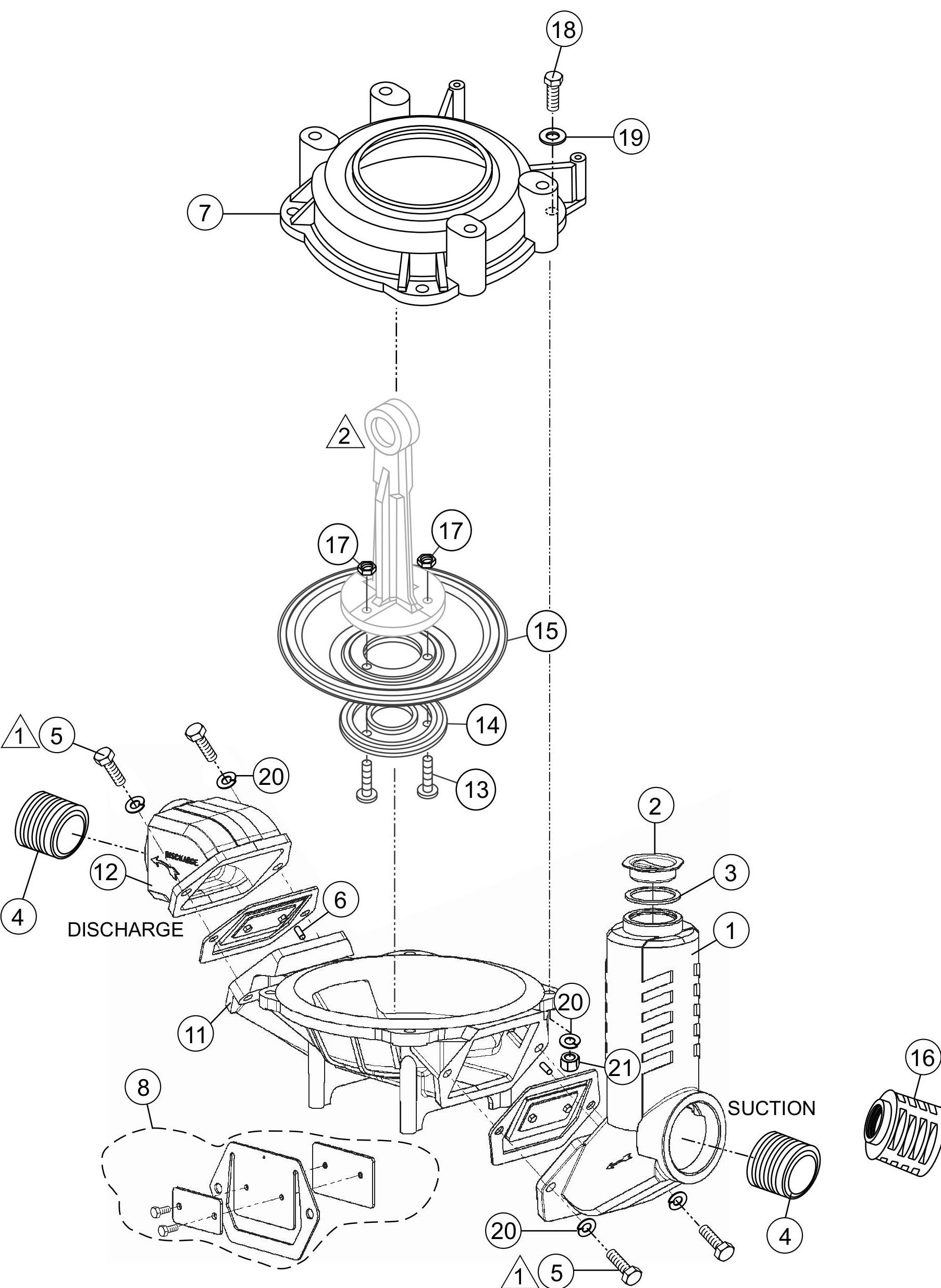

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
