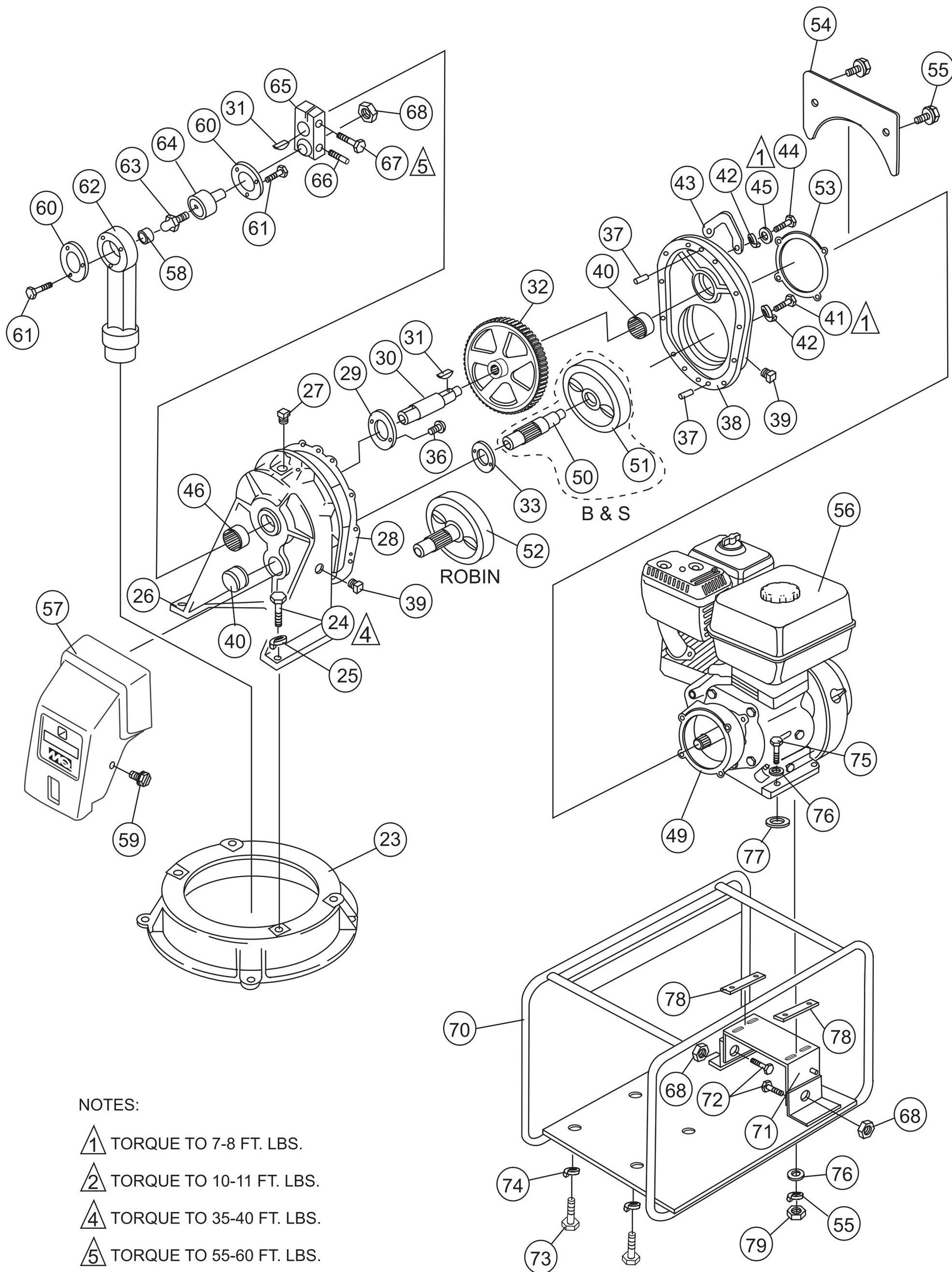

MQ MQD305B D305R Pump Assembly Parts By Multiquip

MQ MQD305B D305R Pump Assembly Parts By Multiquip

  • MQ MQD305B D305R Pump Assembly Parts By Multiquip
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
24
3051213 Screw Hex 1/2"X1-3/4" 13 Uncx for Multiquip MQD305 MQD306 Diaphragm Pump
$2.21
67
3051213 Screw Hex 1/2"X1-3/4" 13 Uncx for Multiquip MQD305 MQD306 Diaphragm Pump
$2.21
23
3054928 NLA Pump Frame for Multiquip MQD305 MQD306 Diaphragm Pump
Call for Price call for price call for price
25
3051200 Washer, Lock 1/2" for Multiquip MQD305 MQD306 Diaphragm Pump
$4.39
26
3053302 Gear Case for Multiquip MQD305 MQD306 Diaphragm Pump
$4.39
27
305454A Plug Pipe Vented 3/8" Plastic for Multiquip MQD305 MQD306 Diaphragm Pump
$6.22
28
3053304 Gasket, Gear Case for Multiquip MQD305 MQD306 Diaphragm Pump
$14.39
29
3053316 Thrust Washer for Multiquip MQD305 MQD306 Diaphragm Pump
$17.22
30
3053314 Gear Shaft for Multiquip MQD305 MQD306 Diaphragm Pump
$4.39
31
3057080 Key Woodruff #807 for Multiquip MQD305 MQD306 Diaphragm Pump
$4.39
32
3053300 Gear 79T for Multiquip MQD305 MQD306 Diaphragm Pump
$389.26
33
3053326 Thrust Washer for Multiquip MQD305 MQD306 Diaphragm Pump
$29.54
36
3058032 Screw, Mach., 8-32" Nc 1/2" Fl. Hd. for Multiquip MQD305 MQD306 Diaphragm Pump
$4.39
37
3051434 Pin Dowel 1/4 Dia.X3/4" for Multiquip MQD305 MQD306 Diaphragm Pump
$4.39
38
3053303 Cover, Gear Case for Multiquip MQD305 MQD306 Diaphragm Pump
$276.68
39
3051827 Pipe Plug 1/8"-27 Npt Sq.Hd. for Multiquip MQD305 MQD306 Diaphragm Pump
$4.39
40
3051212 Needle Bearing 3/4" for Multiquip MQD305 MQD306 Diaphragm Pump
$13.14
41
3051421 Screw Hex 1/4"-20X1 for Multiquip MQD305 MQD306 Diaphragm Pump
$4.39
42
2021421 Washer Lock 1/4" for Multiquip MQD305 MQD306 Diaphragm Pump
$4.39
43
3054945 Lifting Hook for Multiquip MQD305 MQD306 Diaphragm Pump
$60.89
44
3051420 Screw Hex Head Plated for Multiquip MQD305 MQD306 Diaphragm Pump
$4.39
45
2021402 Washer, Flat 1/4" for Multiquip MQD305 MQD306 Diaphragm Pump
$2.49
46
3052014 Needle Bearing 1-1/4" for Multiquip MQD305 MQD306 Diaphragm Pump
$35.48
49
3054850 Gear Case for Multiquip MQD305 MQD306 Diaphragm Pump
$436.52
50
3053301 11 T Pinion for Multiquip MQD305 MQD306 Diaphragm Pump
$140.00
51
3053417 85 T Internal Gear for Multiquip MQD305 MQD306 Diaphragm Pump
$152.91
52
3054473 Pinion Internal for Multiquip MQD305 MQD306 Diaphragm Pump
$4.39
53
3054946 Gasket Engine To Cover for Multiquip MQD305 MQD306 Diaphragm Pump
$28.57
54
3054965 Backplate, Guard for Multiquip MQD305 MQD306 Diaphragm Pump
$13.66
55
3053238 8-32 Unc X 3/8 Slotted Hex Washer for Multiquip MQD305 MQD306 Diaphragm Pump
$4.39
56
912320035 Engine, Briggs & Stratton, 3.0 Hp for Multiquip MQD305 MQD306 Diaphragm Pump
$603.65
56
EY150WR1070 Engine, Robin, 3.5 Hp for Multiquip MQD305 MQD306 Diaphragm Pump
$802.35
57
3054953 Guard for Multiquip MQD305 MQD306 Diaphragm Pump
$78.03
58
3054964 Cap, Grease Plastic for Multiquip MQD305 MQD306 Diaphragm Pump
$4.39
59
3051012 Washer, Slotted Hex 10X1/2 for Multiquip MQD305 MQD306 Diaphragm Pump
$4.39
60
3053317 Washer, Retaining for Multiquip MQD305 MQD306 Diaphragm Pump
$37.84
61
3051032F Screw, Machine Flt Hd 10-32X1/2 for Multiquip MQD305 MQD306 Diaphragm Pump
$4.39
62
3054847B Connecting Rod Top for Multiquip MQD305 MQD306 Diaphragm Pump
$304.84
63
2020316 Fitting, Grease 3/16 Str for Multiquip MQD305 MQD306 Diaphragm Pump
$4.39
64
3051913 Connecting Rod Bearing for Multiquip MQD305 MQD306 Diaphragm Pump
$80.35
65
3053315 Crank Arm for Multiquip MQD305 MQD306 Diaphragm Pump
$395.09
66
3055016 Screw Socket Set 5/16"-18X5/16" L.G. for Multiquip MQD305 MQD306 Diaphragm Pump
$2.43
68
3053416 Nut Hex Jam Lock Nylon 3/4-16"Unf for Multiquip MQD305 MQD306 Diaphragm Pump
$9.30
70
3054927A Mounting Cage for Multiquip MQD305 MQD306 Diaphragm Pump
$4.39
71
3055031 Bracket Engine Support for Multiquip MQD305 MQD306 Diaphragm Pump
$229.36
72
3053401 Screw, Hex 3/4"X1" 16Unf for Multiquip MQD305 MQD306 Diaphragm Pump
$4.56
73
3053858 Screw, Hex 3/8"X5/8" 16Unf for Multiquip MQD305 MQD306 Diaphragm Pump
$4.39
74
2023800 Washer, Lock for Multiquip MQD305 MQD306 Diaphragm Pump
$4.39
75
3055161 Screw, Hex 5/16"-18 Unc X1-1/2" for Multiquip MQD305 MQD306 Diaphragm Pump
$4.39
75
3055634 Screw, Hex 5/16"-18 Unc X1-3/4" for Multiquip MQD305 MQD306 Diaphragm Pump
$4.39
76
3055160 Washer, Flat 5/16" for Multiquip MQD305 MQD306 Diaphragm Pump
$4.39
77
2022676C Washer, Slotted Hole 1/32 Thk. for Multiquip MQD305 MQD306 Diaphragm Pump
$4.39
78
3054763 Spacer 3/16" Thk. for Multiquip MQD305 MQD306 Diaphragm Pump
$33.65
79
2025111 Nut, Hex 5/16" 18 Unc for Multiquip MQD305 MQD306 Diaphragm Pump
$4.39
