MQ MQD306H Pump Assembly Parts By Multiquip

MQ MQD306H Pump Assembly Parts By Multiquip

  • MQ MQD306H Pump Assembly Parts By Multiquip
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
23
3054928 NLA Pump Frame for Multiquip MQD305 MQD306 Diaphragm Pump
Call for Price call for price call for price
24
3051213 Screw Hex 1/2"X1-3/4" 13 Uncx for Multiquip MQD305 MQD306 Diaphragm Pump
$2.21
25
3051200 Washer, Lock 1/2" for Multiquip MQD305 MQD306 Diaphragm Pump
$4.39
26
3054850 Gear Case for Multiquip MQD305 MQD306 Diaphragm Pump
$436.52
27
305454A Plug Pipe Vented 3/8" Plastic for Multiquip MQD305 MQD306 Diaphragm Pump
$6.22
27
2024540 Plug Pipe Vented 3/8" Plastic for Multiquip MQD305 MQD306 Diaphragm Pump
$5.18
28
3054858 Gasket, Gear Case for Multiquip MQD305 MQD306 Diaphragm Pump
$19.24
29
2063070 Bearing Ball for Multiquip MQD305 MQD306 Diaphragm Pump
$27.10
30
2024853 Gear Shaft for Multiquip MQD305 MQD306 Diaphragm Pump
$225.90
31
3057080 Key Woodruff #807 for Multiquip MQD305 MQD306 Diaphragm Pump
$4.39
31
2020807 Key Woodruff #807 for Multiquip MQD305 MQD306 Diaphragm Pump
$1.23
32
2025058 Gear 79T for Multiquip MQD305 MQD306 Diaphragm Pump
$389.26
33
2063040 Bearing Ball for Multiquip MQD305 MQD306 Diaphragm Pump
$11.08
34
2024852 Pinion 11T for Multiquip MQD305 MQD306 Diaphragm Pump
$265.91
35
2023417 Gear Internal 85T for Multiquip MQD305 MQD306 Diaphragm Pump
$304.64
36
2023020 Bearing Ball for Multiquip MQD305 MQD306 Diaphragm Pump
$18.21
37
2021434 Pin Dowel 1/4 Dia.X3/4" for Multiquip MQD305 MQD306 Diaphragm Pump
$4.39
38
2064851 Cover, Gear Case for Multiquip MQD305 MQD306 Diaphragm Pump
$505.87
39
2021827 Pipe Plug 1/8" Npt Sq.Hd. for Multiquip MQD305 MQD306 Diaphragm Pump
$4.39
40
2061880 Needle Bearing for Multiquip MQD305 MQD306 Diaphragm Pump
$22.12
41
3051421 Screw Hex 1/4"-20X1 for Multiquip MQD305 MQD306 Diaphragm Pump
$4.39
42
2021421 Washer Lock 1/4" for Multiquip MQD305 MQD306 Diaphragm Pump
$4.39
43
2024945 Lifting Hook for Multiquip MQD305 MQD306 Diaphragm Pump
$5.98
44
3051420 Screw Hex Head Plated for Multiquip MQD305 MQD306 Diaphragm Pump
$4.39
45
2021402 Washer, Flat 1/4" for Multiquip MQD305 MQD306 Diaphragm Pump
$2.49
46
2024854 Pinion 14T 3/4 Bore for Multiquip MQD305 MQD306 Diaphragm Pump
$441.18
47
2029106 Bearing Ball for Multiquip MQD305 MQD306 Diaphragm Pump
$18.24
48
2025100 Ring Retaining External for Multiquip MQD305 MQD306 Diaphragm Pump
$1.35
49
2024859 O Ring for Multiquip MQD305 MQD306 Diaphragm Pump
$4.54
50
2024856 Engine Adapter for Multiquip MQD305 MQD306 Diaphragm Pump
$141.56
51
2025160 Screw 8W Hdcp 5/16" 18Uncx1" for Multiquip MQD305 MQD306 Diaphragm Pump
$4.39
52
2025165 Washer, Tooth Lock for Multiquip MQD305 MQD306 Diaphragm Pump
Call for Price call for price call for price
53
2025601 Key 3/16" Sq.X1" for Multiquip MQD305 MQD306 Diaphragm Pump
$5.54
54
2025162 Screw, Hex 5/16" 24Unfx1" for Multiquip MQD305 MQD306 Diaphragm Pump
$4.39
55
2025167 Washer, Lock 5/16" for Multiquip MQD305 MQD306 Diaphragm Pump
$4.39
56
GX120K1QX2 Engine Honda Gx120K1 3/4" Keyed Shaft for Multiquip MQD306HA Diaphragm Pump
Call for Price call for price call for price
57
3054953A Guard for Multiquip MQD305 MQD306 Diaphragm Pump
$568.30
58
3054964 Cap, Grease Plastic for Multiquip MQD305 MQD306 Diaphragm Pump
$4.39
58
2024964 Cap, Grease Plastic for Multiquip MQD305 MQD306 Diaphragm Pump
$4.39
59
2021012 Washer Slotted Hex 10X1/2 for Multiquip MQD305 MQD306 Diaphragm Pump
$4.39
60
3053317 Washer, Retaining for Multiquip MQD305 MQD306 Diaphragm Pump
$37.84
61
2023212 Screw, Machine Flt Hd 10-32X1/2 for Multiquip MQD305 MQD306 Diaphragm Pump
$4.39
62
3054847B Connecting Rod Top for Multiquip MQD305 MQD306 Diaphragm Pump
$304.84
63
2020316 Fitting, Grease 3/16 Str for Multiquip MQD305 MQD306 Diaphragm Pump
$4.39
64
3065581 Connecting Rod Bearing for Multiquip MQD305 MQD306 Diaphragm Pump
$360.68
65
3065583 Crank Arm for Multiquip MQD305 MQD306 Diaphragm Pump
$154.08
66
2025656 Screw, Socket Set 5/16"-18X5/16" L.G. for Multiquip MQD305 MQD306 Diaphragm Pump
$4.39
67
2021211 Screw, Hex 1/2"X1-1/2" 13Unc for Multiquip MQD305 MQD306 Diaphragm Pump
$4.39
68
3053416 Nut Hex Jam Lock Nylon 3/4-16"Unf for Multiquip MQD305 MQD306 Diaphragm Pump
$9.30
69
2021232 Oil Seal for Multiquip MQD305 MQD306 Diaphragm Pump
$11.20
70
3065585 Mounting Cage for Multiquip MQD305 MQD306 Diaphragm Pump
$378.20
71
3065586 Bracket Engine Support for Multiquip MQD305 MQD306 Diaphragm Pump
$96.06
72
3053401 Screw, Hex 3/4"X1" 16Unf for Multiquip MQD305 MQD306 Diaphragm Pump
$4.56
73
3053858 Screw, Hex 3/8"X5/8" 16Unf for Multiquip MQD305 MQD306 Diaphragm Pump
$4.39
74
2023800 Washer, Lock for Multiquip MQD305 MQD306 Diaphragm Pump
$4.39
75
3055613 Screw, Hex 5/16"X1-3/4" 18Unc for Multiquip MQD305 MQD306 Diaphragm Pump
$4.39
76
3055160 Washer, Flat 5/16" for Multiquip MQD305 MQD306 Diaphragm Pump
$4.39
77
2022676C Washer, Slotted Hole 1/32 Thk. for Multiquip MQD305 MQD306 Diaphragm Pump
$4.39
78
3054763 Spacer 3/16" Thk. for Multiquip MQD305 MQD306 Diaphragm Pump
$33.65
78
3054764 Spacer 1/18" Thk. for Multiquip MQD305 MQD306 Diaphragm Pump
$33.65
79
2025111 Nut, Hex 5/16" 18 Unc for Multiquip MQD305 MQD306 Diaphragm Pump
$4.39
View full details

Frequently asked questions

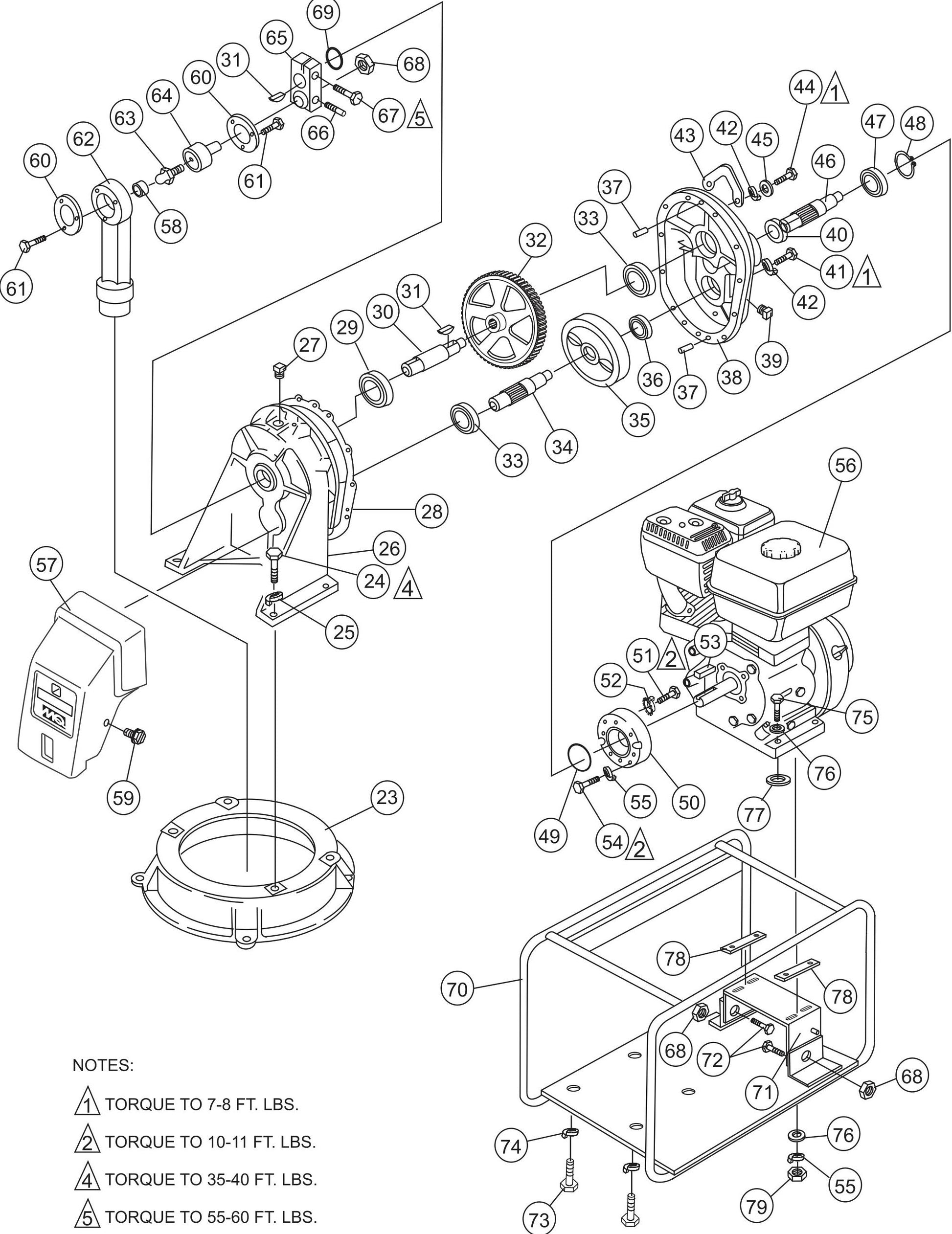

How do I use this diagram?
