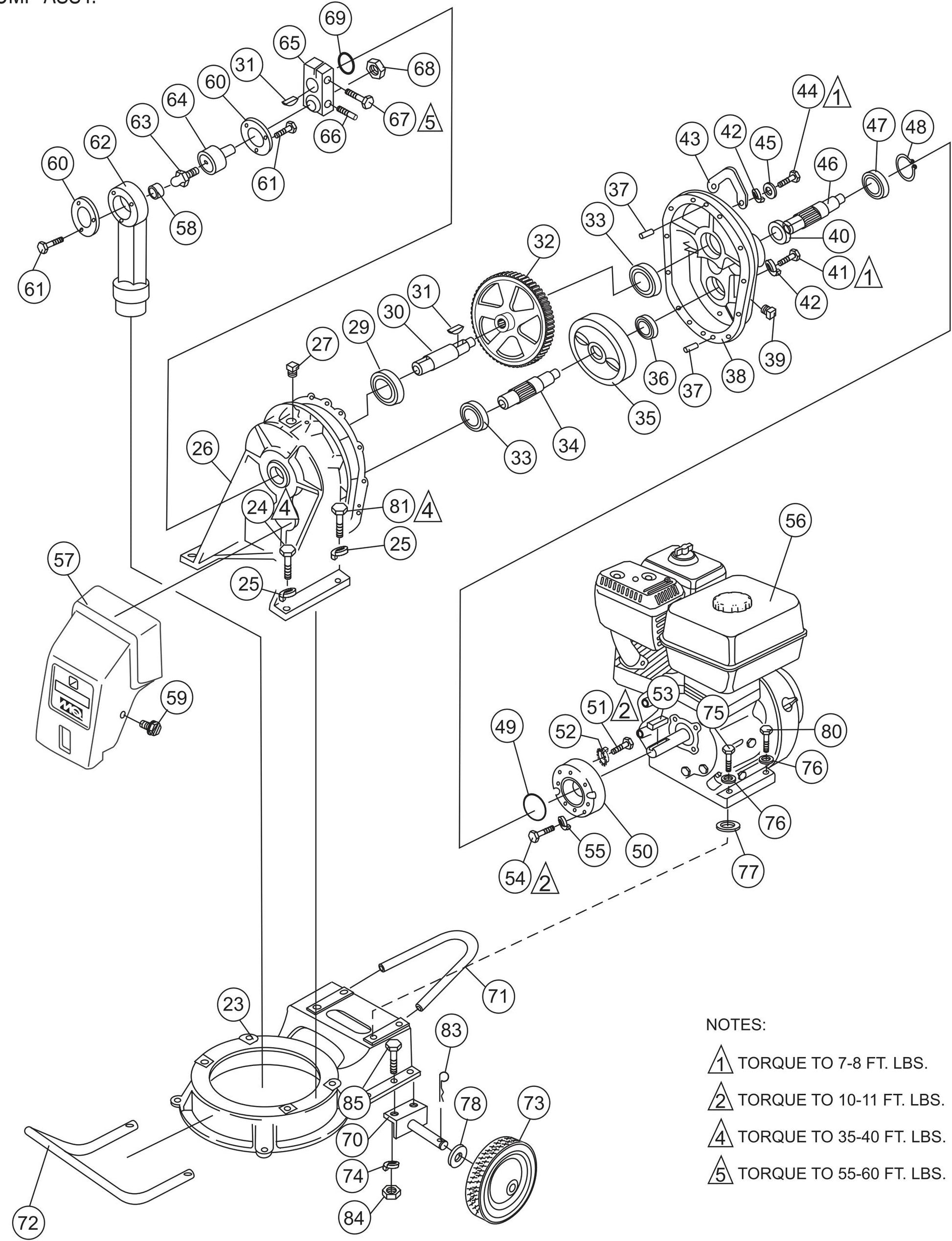

MQ MQD306HA Pump Assembly Parts By Multiquip

MQ MQD306HA Pump Assembly Parts By Multiquip

  • MQ MQD306HA Pump Assembly Parts By Multiquip
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
23
3064771 Pump Frame for Multiquip MQD306HA Diaphragm Pump
$736.30
24
3051213 Screw Hex 1/2"X1-3/4" 13 Uncx for Multiquip MQD306HA Diaphragm Pump
$2.21
25
3051200 Washer, Washer 1/2" for Multiquip MQD306HA Diaphragm Pump
$4.39
26
3054850 Gear Case for Multiquip MQD306HA Diaphragm Pump
$436.52
27
2024540 Plug Pipe Vented 3/8" Plastic for Multiquip MQD306HA Diaphragm Pump
$5.18
28
3054858 Gasket, Gear Case for Multiquip MQD306HA Diaphragm Pump
$19.24
29
2063070 Bearing Ball for Multiquip MQD306HA Diaphragm Pump
$27.10
30
2024853 Gear Shaft for Multiquip MQD306HA Diaphragm Pump
$225.90
31
2020807 Key Woodruff #807 for Multiquip MQD306HA Diaphragm Pump
$1.23
32
2025058 Gear 79T for Multiquip MQD306HA Diaphragm Pump
$389.26
33
2063040 Bearing Ball for Multiquip MQD306HA Diaphragm Pump
$11.08
34
2024852 Pinion 11T for Multiquip MQD306HA Diaphragm Pump
$265.91
35
2023417 Gear Internal 85T for Multiquip MQD306HA Diaphragm Pump
$304.64
36
2023020 Bearing Ball for Multiquip MQD306HA Diaphragm Pump
$18.21
37
2021434 Pin Dowel 1/4 Dia.X3/4" for Multiquip MQD306HA Diaphragm Pump
Call for Price call for price call for price
38
2064851 Cover, Gear Case for Multiquip MQD206H Diaphragm Pump
$505.87
39
2021827 Pipe Plug 1/8" Npt Sq.Hd. for Multiquip MQD306HA Diaphragm Pump
$4.39
40
2061880 Needle Bearing for Multiquip MQD206H Diaphragm Pump
$22.12
41
3051421 Screw, Hex 1/4"-20X1 for Multiquip MQD306HA Diaphragm Pump
$4.39
42
2021421 Washer, Lock 1/4" for Multiquip MQD306HA Diaphragm Pump
$4.39
43
2024945 Lifting Hook for Multiquip MQD306HA Diaphragm Pump
$5.98
44
3051420 Screw, Hex Head Plated for Multiquip MQD306HA Diaphragm Pump
$4.39
45
2021402 Washer, Flat 1/4" for Multiquip MQD306HA Diaphragm Pump
$2.49
46
2024854 Pinion 14T 3/4 Bore for Multiquip MQD306HA Diaphragm Pump
$441.18
47
2029106 Bearing Ball for Multiquip MQD306HA Diaphragm Pump
$18.24
48
2025100 Ring Retaining External for Multiquip MQD306HA Diaphragm Pump
$1.35
49
2024859 “O” Ring for Multiquip MQD306HA Diaphragm Pump
$4.54
50
2024856 Enginer Adapter for Multiquip MQD306HA Diaphragm Pump
$141.56
51
2025160 Screw 8W Hdcp 5/16" 18Uncx1" for Multiquip MQD306HA Diaphragm Pump
$4.39
52
2025165 Washer, Tooth Lock for Multiquip MQD306HA Diaphragm Pump
$4.39
53
2025601 Key 3/16" Sq.X1" for Multiquip MQD306HA Diaphragm Pump
$5.54
54
2025162 Screw Hex 5/16" 24Unfx1" for Multiquip MQD306HA Diaphragm Pump
$4.39
55
2025167 Washer, Lock 5/16" for Multiquip MQD306HA Diaphragm Pump
$4.39
56
GX120K1QX2 Engine, Honda Gx120K1 3/4" Keyed Shaft for Multiquip MQD305 MQD306 Diaphragm Pump
$4.39
57
3054953A Guard for Multiquip MQD306HA Diaphragm Pump
$568.30
58
2024964 Cap, Grease Plastic for Multiquip MQD306HA Diaphragm Pump
$4.39
59
3051012 Washer,Slotted Hex 10 X1/2 for Multiquip MQD306HA Diaphragm Pump
$4.39
60
3053317 Washer, Retaining for Multiquip MQD306HA Diaphragm Pump
$37.84
61
2023212 Screw, Machine Flt Hd 10-32X1/2 for Multiquip MQD306HA Diaphragm Pump
$4.39
62
3054847B Connecting Rod Top for Multiquip MQD306HA Diaphragm Pump
$304.84
63
2020316 Fitting, Grease 3/16 Str for Multiquip MQD306HA Diaphragm Pump
$4.39
64
3065581 Connecting Rod Bearing for Multiquip MQD306HA Diaphragm Pump
$360.68
65
3065583 Crank Arm for Multiquip MQD306HA Diaphragm Pump
$154.08
66
2025656 Screw, Socket Set 5/16"-18X5/16" L.G. for Multiquip MQD305 MQD306 Diaphragm Pump
$4.39
67
2021211 Screw Hex 1/2"X1-1/2" 13Unc for Multiquip MQD306HA Diaphragm Pump
$4.39
68
3053416 Nut, Hex Jam Lock Nylon 3/4-16"Unf for Multiquip MQD306HA Diaphragm Pump
$9.30
69
2021232 Oil Seal for Multiquip MQD306HA Diaphragm Pump
$11.20
70
3064779 Stub Axle for Multiquip MQD306HA Diaphragm Pump
$57.87
71
3063327 Bumper for Multiquip MQD306HA Diaphragm Pump
$14.01
72
3063320A Towing Pole for Multiquip MQD306HA Diaphragm Pump
$102.57
73
306W274A Wheel 8 X 1.75 Semi-Pneumatic for Multiquip MQD306HA Diaphragm Pump
$4.39
74
2023800 Washer, Lock 3/8" for Multiquip MQD306HA Diaphragm Pump
$4.39
75
306A0100310200 Screw, Hex 5/16"-18 X 2, Hn, Lw for Multiquip MQD306HA Diaphragm Pump
$4.39
76
3055160 Washer, Flat 5/16" for Multiquip MQD306HA Diaphragm Pump
$4.39
77
2022676C Washer, Slotted Hole 1/32” Thk. for Multiquip MQD306HA Diaphragm Pump
$4.39
78
306606075Y Washer, Flat 3/8 Sae for Multiquip MQD306HA Diaphragm Pump
$4.39
79
2025111 Nut, Hex 5/16" 18 Unc for Multiquip MQD306HA Diaphragm Pump
$4.39
80
306A0100310225 5/16-18 X 2-1/4, Screw, Hex, Hn, Lw for Multiquip MQD306HA Diaphragm Pump
Call for Price call for price call for price
81
306A0100500250 Screw, Hex 1/2" 12 X 2-1/2”, Lw for Multiquip MQD306HA Diaphragm Pump
$1.98
83
306H7200180125Z Cotter Pin 3/16” O.D. X 1-1/4” for Multiquip MQD306HA Diaphragm Pump
$4.39
84
306EC400037 Nut, 3/8"-16 for Multiquip MQD306HA Diaphragm Pump
$4.39
85
306A0100370125 Screw, Hex 3/8”-16 X 1-1/4” for Multiquip MQD306HA Diaphragm Pump
$4.39
