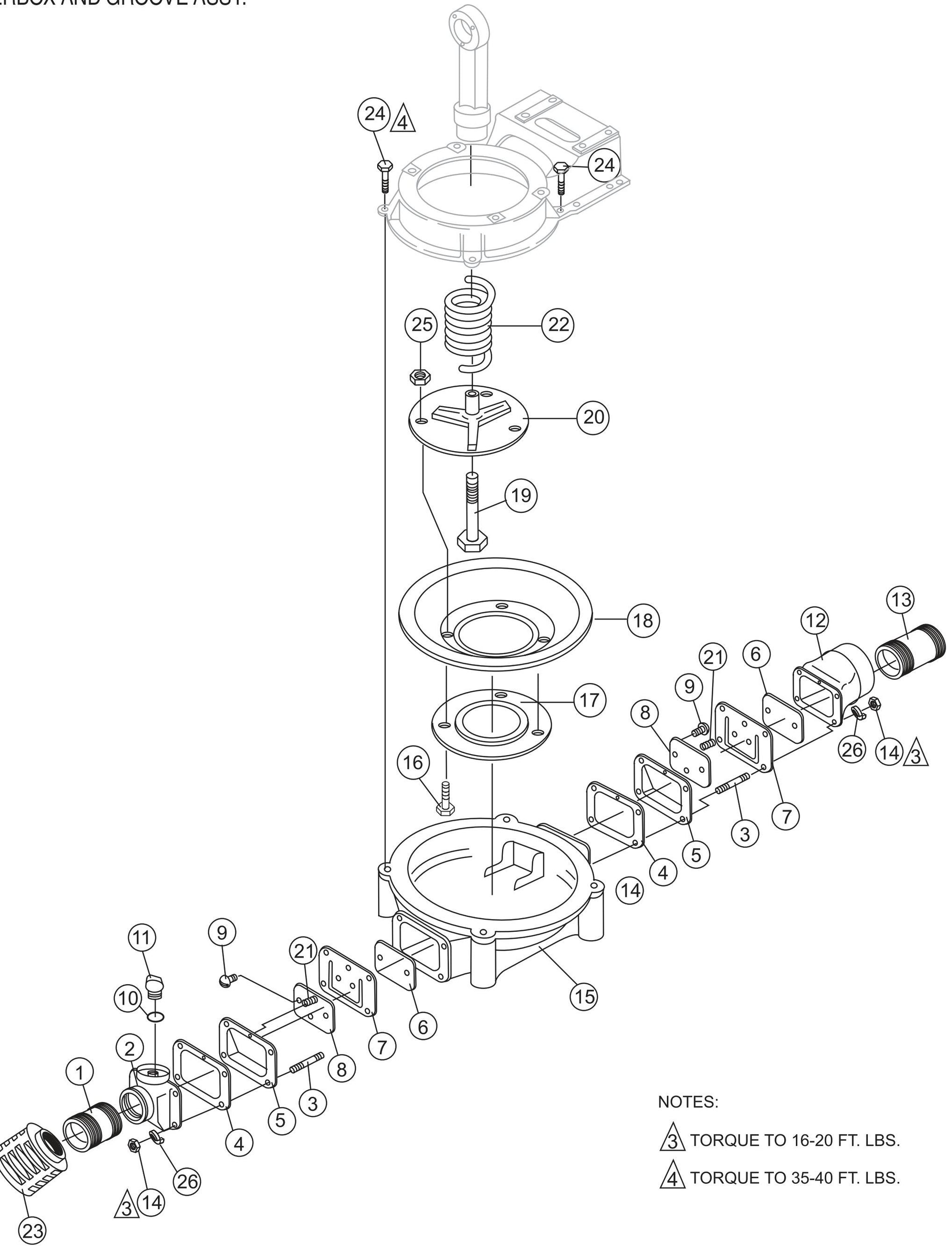

MQ MQD306HA Waterbox And Groove Assembly Parts By Multiquip

MQ MQD306HA Waterbox And Groove Assembly Parts By Multiquip

  • MQ MQD306HA Waterbox And Groove Assembly Parts By Multiquip
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
3053041 Nipple, Suction And Discharge for Multiquip MQD306HA Diaphragm Pump
$69.78
2
3054932 Suction Connection for Multiquip MQD306HA Diaphragm Pump
$4.39
3
3065985 Stud 3/8”-16 X 2-1/8”, H.N., L.W. for Multiquip MQD306HA Diaphragm Pump
$7.92
4
3054935 Gasket, Suction And Discharge for Multiquip MQD306HA Diaphragm Pump
$7.91
5
3054936 Flap Valve Seat With Spring Pin for Multiquip MQD306HA Diaphragm Pump
$320.86
6
3054938 Valve Weight for Multiquip MQD306HA Diaphragm Pump
$30.81
7
3054937 Flap Valve for Multiquip MQD306HA Diaphragm Pump
$33.78
8
3054939 Valve Binder for Multiquip MQD306HA Diaphragm Pump
$40.30
9
2021032 Screw Machine Rnd Head 10-32X1/2 for Multiquip MQD306HA Diaphragm Pump
$4.39
10
1506064 O-Ring for Multiquip MQD306HA Diaphragm Pump
$4.39
11
1506060 Plug, Fill Plastic for Multiquip MQD306HA Diaphragm Pump
$4.39
12
3054933 Discharge Connection for Multiquip MQD306HA Diaphragm Pump
$4.39
14
306EC400037 Nut, 3/8"-16 for Multiquip MQD306HA Diaphragm Pump
$4.39
15
3054929 Waterbox for Multiquip MQD306HA Diaphragm Pump
$398.81
16
306A0200500200ZC 1/2” -13 X2” Carriage Bolt, H.N. for Multiquip MQD306HA Diaphragm Pump
$1.39
17
3052724 Diaphragm Bottom for Multiquip MQD306HA Diaphragm Pump
$178.39
18
3052726 Diaphragm for Multiquip MQD306HA Diaphragm Pump
$208.35
19
3055026 Connecting Rod, Carriage Bold for Multiquip MQD306HA Diaphragm Pump
$3.96
20
3054992 Diaprhagm Top for Multiquip MQD306HA Diaphragm Pump
$293.27
21
3051812 Spring Pin (1/8" Dia.X1/2') for Multiquip MQD306HA Diaphragm Pump
$4.39
22
3054944 Spring Compression for Multiquip MQD306HA Diaphragm Pump
$4.39
23
0742304080 Strainer for Multiquip MQD306HA Diaphragm Pump
$19.06
24
3051213 Screw Hex 1/2"X1-3/4" 13 Uncx for Multiquip MQD306HA Diaphragm Pump
$2.21
25
306EC400050 Nut, Hex 1/2"-13 for Multiquip MQD306HA Diaphragm Pump
$4.39
26
2023800 Washer, Lock 3/8" for Multiquip MQD306HA Diaphragm Pump
$4.39
View full details
