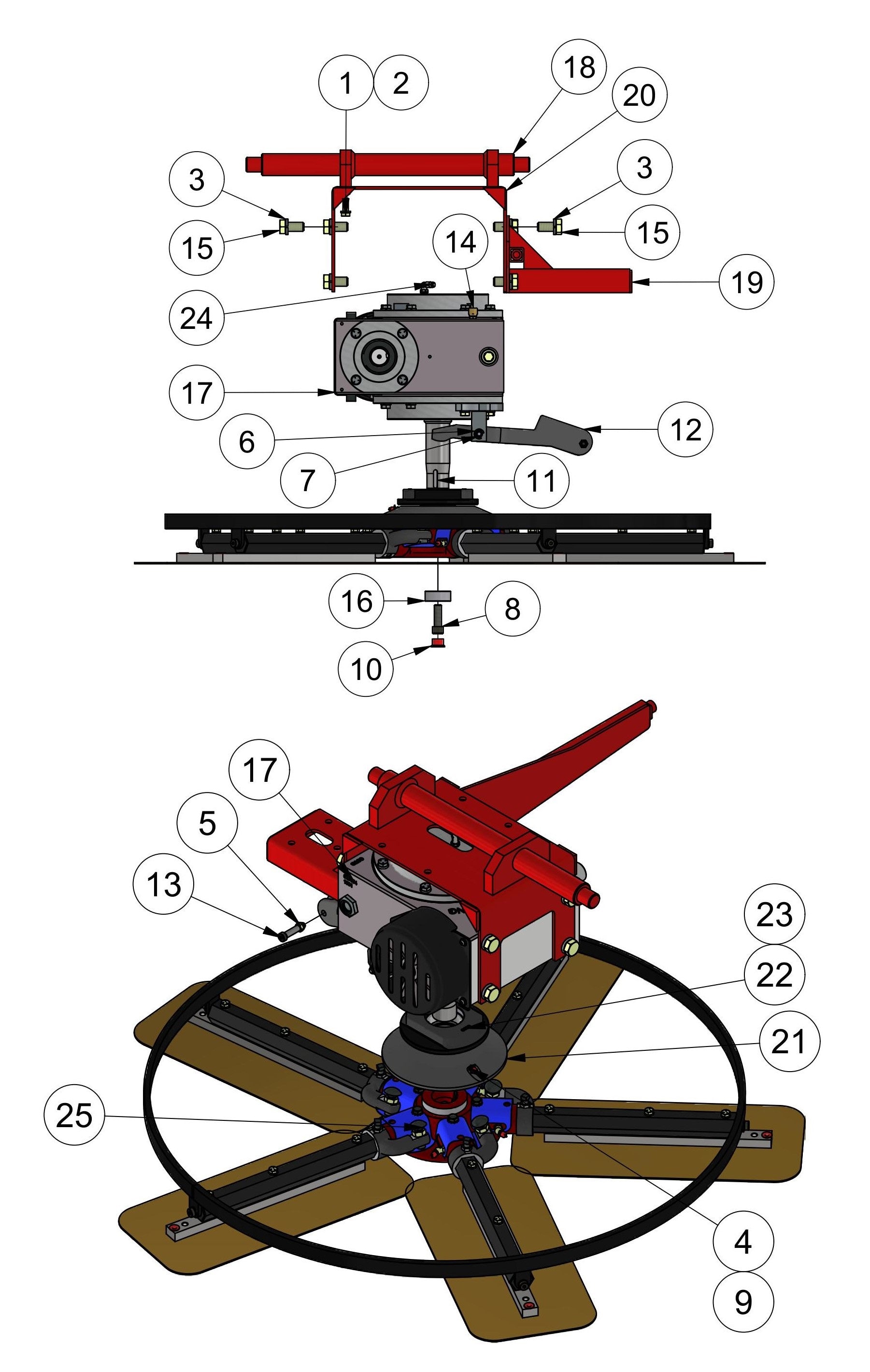

MSP445 Left Hand Rotor Assembly Parts by Allen Engineering

MSP445 Left Hand Rotor Assembly Parts by Allen Engineering

  • MSP445 Left Hand Rotor Assembly Parts by Allen Engineering
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
010036 Fstn, Hhcs 3/8-16 X 1 Grd8 by Allen Enginnering
$4.95
2
010091 Fstn, Lw 3/8 Grd8 by Allen Enginnering
$4.95
3
010095 Fstn, Lw 5/8 Grd8 by Allen Enginnering
$4.95
4
010513 Fitting, 1/4-28 Straight Grease by Allen Enginnering
$2.99
5
012612 Fstn, Nut Hex Nylock 5/16-18 Gr by Allen Enginnering
$4.95
6
015677 Fstn, Ring, Ø7/16 E-Style Retaining by Allen Enginnering
$2.99
7
015678 Fstn, Pin Yoke Arm 7-3/8X7/16 by Allen Enginnering
$17.16
8
015691 Fstn, Shcs 1/2-13 X 1-1/2, Right Hand Thread by Allen Enginnering
$25.20
9
015692 Cap, Ø1/4 Red Grease by Allen Enginnering
$2.99
10
015693 Plug, Plastic Cap Ec12 by Allen Enginnering
$2.99
11
015696 Key, .25" X 1.25"Lg Hard Rad. by Allen Enginnering
$9.00
12
026215 Yoke, Arm by Allen Enginnering
$207.29
13
026504 Fstn, Shld Blt 3/8 X 1-1/4 by Allen Enginnering
$7.20
14
029529 Valve,Relief 1/8-27Npt (Air V) by Allen Enginnering
$22.41
15
036787 FSTN, HHCS 5/8-11 X 1 1/4 GRD8 by Allen Engineering
$5.99
16
037652 Washer, Retaining Hd by Allen Enginnering
$27.00
17
037654 Gearbox, Shd Lh (Som) by Allen Enginnering
$5,602.50
18
048966 Weldment, 2 Way Crosshead Msp425 by Allen Enginnering
$500.86
19
064210 Weldment, Steering Arm Lh 105/445 by Allen Enginnering
$682.38
20
064632 WLDMNT, CROSSHEAD GEARBOX MOUNT by Allen Engineering
$157.20
21
073522 PLATE, SHD PRESSURE by Allen Engineering
$494.40
22
073523 CAP, SHD PRESSURE PLATE, 6010-2RD BEARING by Allen Engineering
$388.80
23
073524 BEARING, BALL THRUST EW2, 50MM DEEP, 6010-2RS by Allen Engineering
$346.80
24
074094 FTG, 4MM TUBE X 1/4-28 MALE SWIVEL ELBOW by Allen Engineering
$42.00
View full details
