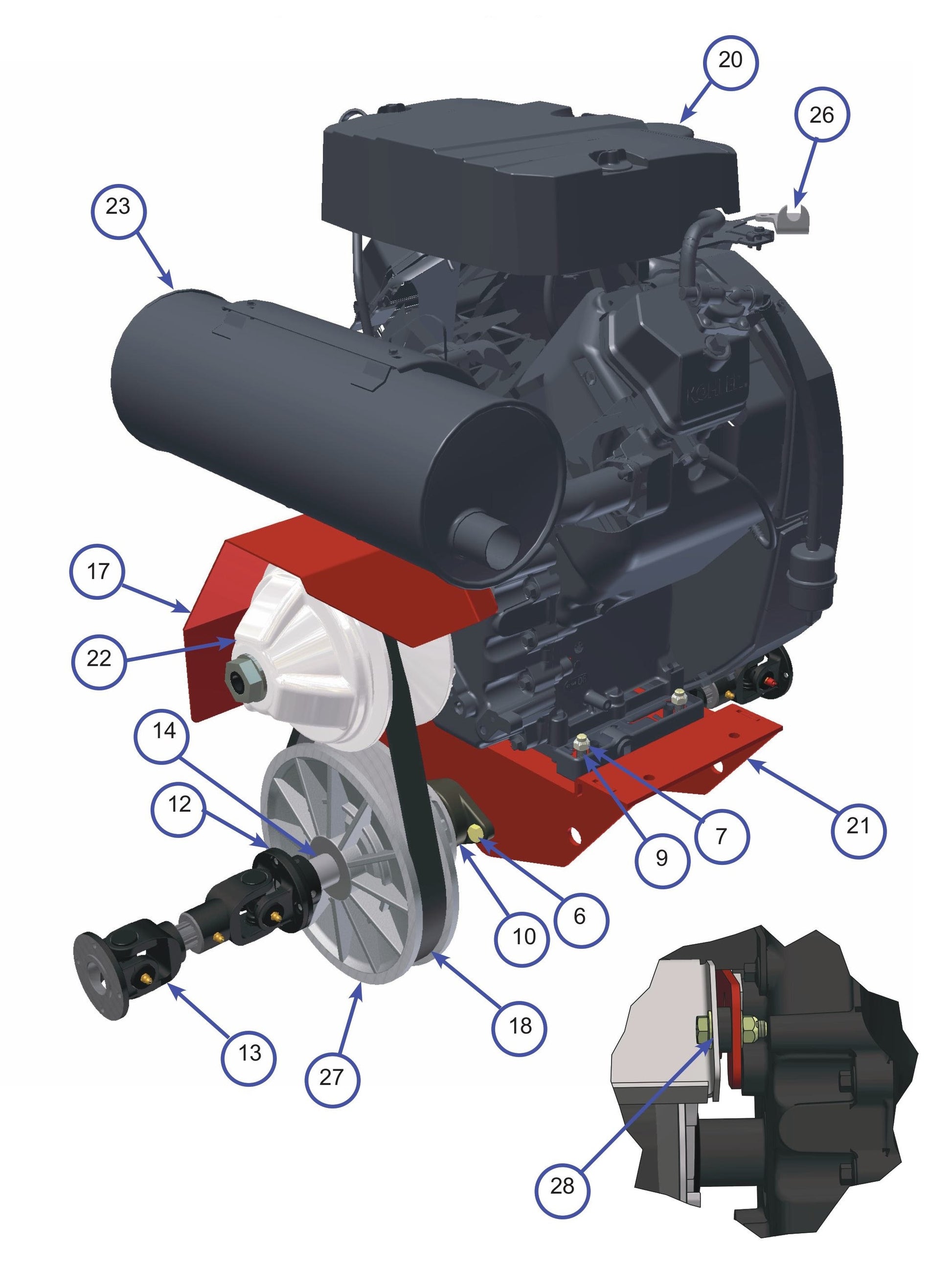

MSP445 (Pre 2021) Engine Mounting System Assembly Parts

MSP445 (Pre 2021) Engine Mounting System Assembly Parts

  • MSP445 (Pre 2021) Engine Mounting System Assembly Parts
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
010089 Fstn, Lw 1/4 by Allen Enginnering
$4.95
2
010096 Fstn, Fw Hardened Y-Zinc 7/16 by Allen Enginnering
$2.99
3
015692 Cap, Ø1/4 Red Grease by Allen Enginnering
$2.99
4
015696 Key, .25" X 1.25"Lg Hard Rad. by Allen Enginnering
$9.00
5
017314 Fstn, Shcs 1/4-20 X 5/8 by Allen Enginnering
$2.99
6
017898 Fstn, Hhcs 7/16-20 X 1-1/2 Gr8 by Allen Enginnering
$5.40
7
020514 Fstn, Nut Stover Lock 3/8-16 by Allen Enginnering
$4.95
8
033661 PLATE, BELT GUARD BRACKET by Allen Engineering
$51.60
10
046904 Bearing, Ø1 Id Rcjt-1 Flange(Fafnir) Use 039136 by Allen Enginnering
$256.59
11
047477 Fstn, 7/16-20 Yz Gr "C" Stover Nut by Allen Enginnering
$4.95
12
047635 Hub, Ø1 Bore U-Joint Center Shaft by Allen Enginnering
$265.56
13
047637 Assy, U-Joint Telescoping by Allen Enginnering
$639.81
14
053193 Spacer, Bearing 1-3/8" - All Mps by Allen Enginnering
$38.60
15
048810 Spacer, Driven Pulley Positioning by Allen Enginnering
$62.75
16
048845 Shaft, Drive Msp425 4140 Pht G&P (Use 071546) by Allen Enginnering
$174.80
17
053136 Guard, Clutch Mp215 by Allen Enginnering
$207.29
18
051332 Belt, Cvtech Pn52-3210-C by Allen Enginnering
$408.98
19
053223 Key, 3/16 X 1/4 X 3 by Allen Enginnering
$9.00
20
053306 Engine, Kohler 37 Hp Ch-1000 by Allen Enginnering
$10,084.50
21
053308 PLATE, ENGINE MSP445 WELDED by Allen Engineering
$268.80
22
065967 Clutch, Driver, Msp445 & Hp205 by Allen Enginnering
$1,456.65
23
053328 Muffler, Msp445 F/ 40Hp Kohler by Allen Enginnering
$817.97
24
053334 Hose, Oil Drain F/ Msp445 by Allen Enginnering
$182.64
26
053385 Bracket, Throttle by Allen Enginnering
$33.62
27
053389 Pulley Driven Mp & Msp Rider by Allen Enginnering
$933.38
28
056470 Bushing, Nitrile Hdx750 Cooler Moun by Allen Enginnering
$4.95
