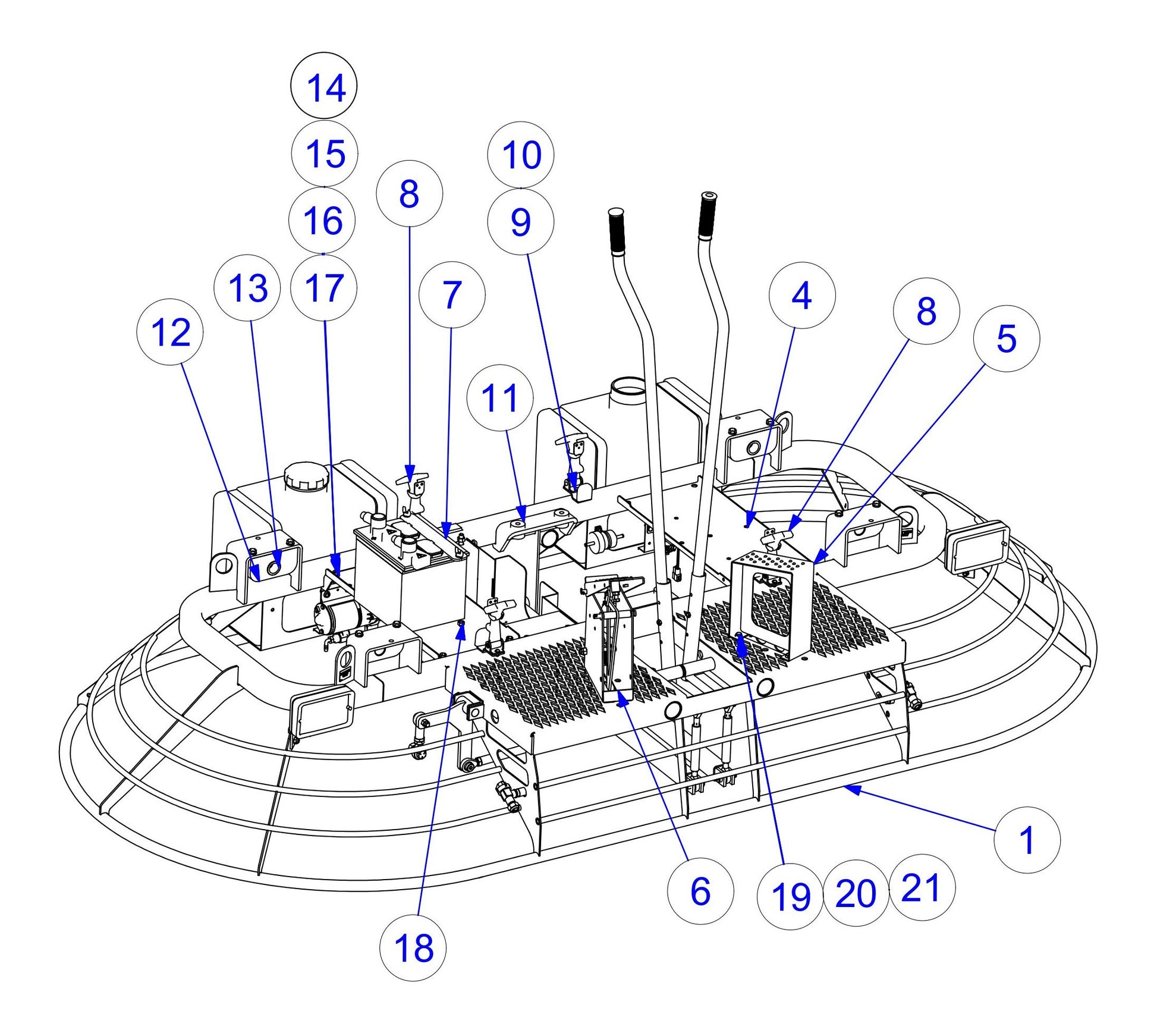

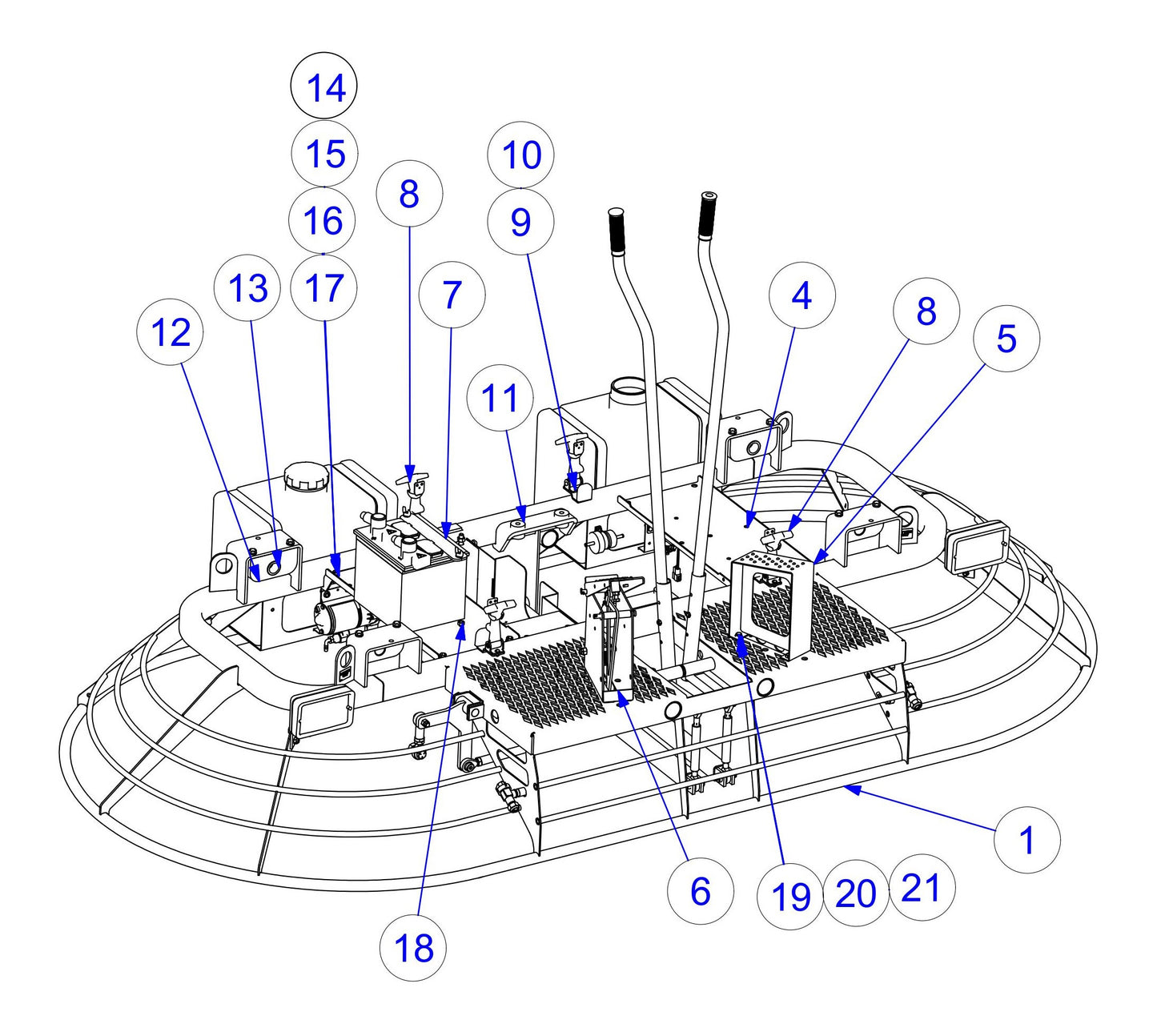

MSP445 (Pre 2021) Front View Lower Frame Unit Assembly Parts

MSP445 (Pre 2021) Front View Lower Frame Unit Assembly Parts

  • MSP445 (Pre 2021) Front View Lower Frame Unit Assembly Parts
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
048838 FRAME, MAIN by Allen Engineering
$2,952.00
4
048906 PLATE, BATT & DRIVELINE COVER-MSP41 by Allen Engineering
$103.20
5
048946 FOOT REST, MSP425 by Allen Engineering
$114.00
6
049666 Assy, Throttle Pedal - Msp460 by Allen Enginnering
$616.28
7
048932 Bar, Battery Hold Down by Allen Enginnering
$62.04
8
042260 Latch, Flex Draw Lrg Rubber Sp400B by Allen Enginnering
$52.66
9
010568 Fstn, Rhms 10-32 X 1/2 Gr 8 by Allen Enginnering
$4.95
10
032358 Fstn, No. 10 External-Tooth Washer by Allen Enginnering
$4.95
11
048901 Mount, 250Lb Motor Isolator 65A by Allen Enginnering
$49.30
12
048559 Bar, Bearing Housing Alum X1 by Allen Enginnering
$77.31
13
048560 Bearing, I-Glide Flanged T500 by Allen Enginnering
$14.40
14
047547 Fstn, 5/16-18 Pal Snap Nut by Allen Enginnering
$4.95
15
010082 Fstn, Fw 5/16 Gr8 by Allen Enginnering
$2.99
16
010090 Fstn, Lw 5/16 Grd8 by Allen Enginnering
$4.95
17
010019 Fstn, Hhcs 5/16-18 X 3/4 Gr8 by Allen Enginnering
$4.95
18
010100 Fstn, Nut Hex 5/16-18 Grd8 by Allen Enginnering
$4.95
19
010002 Fstn, Hhcs 1/4-20 X 3/4 Gr8 by Allen Enginnering
$2.99
20
010081 Fstn, Fw 1/4 Grd8 by Allen Enginnering
$4.95
21
020542 Fstn, Nut Stover Lock 1/4-20 by Allen Enginnering
$4.95
22
028243 Cable, Throttle 52" Hd by Allen Enginnering
$201.69
24
012612 Fstn, Nut Hex Nylock 5/16-18 Gr by Allen Enginnering
$4.95
25
010523 KEY, 3/16" SQ X 1-1/4" LG by Allen Engineering
$3.99
