MSP455 Power Unit Assembly Parts by Allen Engineering

MSP455 Power Unit Assembly Parts by Allen Engineering

Skip to product information
1 of 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
010039 Fstn, Hhcs 3/8-16 X 1-3/4 Gr8 by Allen Enginnering
$4.95
2
017751 Fstn, Fw 3/8 Hard A325 Grade 8 by Allen Enginnering
$2.99
3
020514 Fstn, Nut Stover Lock 3/8-16 by Allen Enginnering
$4.95
4
024984 Pivot, Foot Speed Control by Allen Enginnering
$18.68
5
026992 Key, 1/4" Sq X 3-1/8" Lg by Allen Enginnering
$9.00
6
032875 Fstn, Hhcs 3/8-16 X 1 1/4 Gr 8 by Allen Enginnering
$3.99
7
033638 Bracket, Clutch Guard F/ Khlr by Allen Enginnering
$73.95
8
046550 Pulley, Ak30 X 1/2 Bore W/2Ss by Allen Enginnering
$125.40
9
046738 Pump, Gear 3.2Cc 1200C by Allen Enginnering
$1,120.50
10
048908 Spcr, 1.125 Lg Drvn Pul Posn by Allen Enginnering
$32.37
11
051332 Belt, Cvtech Pn52-3210-C by Allen Enginnering
$408.98
12
053136 Guard, Clutch Mp215 by Allen Enginnering
$207.29
13
053210 Key, 3/16 X 1/4 X 2 by Allen Enginnering
$16.20
14
053308 PLATE, ENGINE MSP445 WELDED by Allen Engineering
$268.80
15
053385 Bracket, Throttle by Allen Enginnering
$33.62
16
053389 Pulley Driven Mp & Msp Rider by Allen Enginnering
$933.38
17
056470 Bushing, Nitrile Hdx750 Cooler Moun by Allen Enginnering
$4.95
18
056775 Sheave Ak30X1-1/8 by Allen Enginnering
$66.11
21
056922 V-Belt, A22 Hi-Power by Allen Enginnering
$41.09
22
056938 Heat Wrap, 14"X20" by Allen Enginnering
$534.48
23
059513 Spacer by Allen Enginnering
$14.40
24
065825 Engine, Kohler Pa-Ech980-3012 by Allen Enginnering
$10,084.50
25
065875 MUFFLER LH FOR CH980 #62 068 17-S by Allen Engineering
$600.00
26
067409 SPACER, 1/8" by Allen Engineering
$9.72
28
071588 COVER, AUX PUMP by Allen Engineering
$90.00
29
072755 WELDMENT, MSP445/455 MUFFLER GUARD by Allen Engineering
$292.80
-
047730 Cable, 4 Awg 32 Lg Pos Battery by Allen Enginnering
$89.64
-
048976 Cable, 4 Awg 35 Lg Neg Battery by Allen Enginnering
$146.91
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

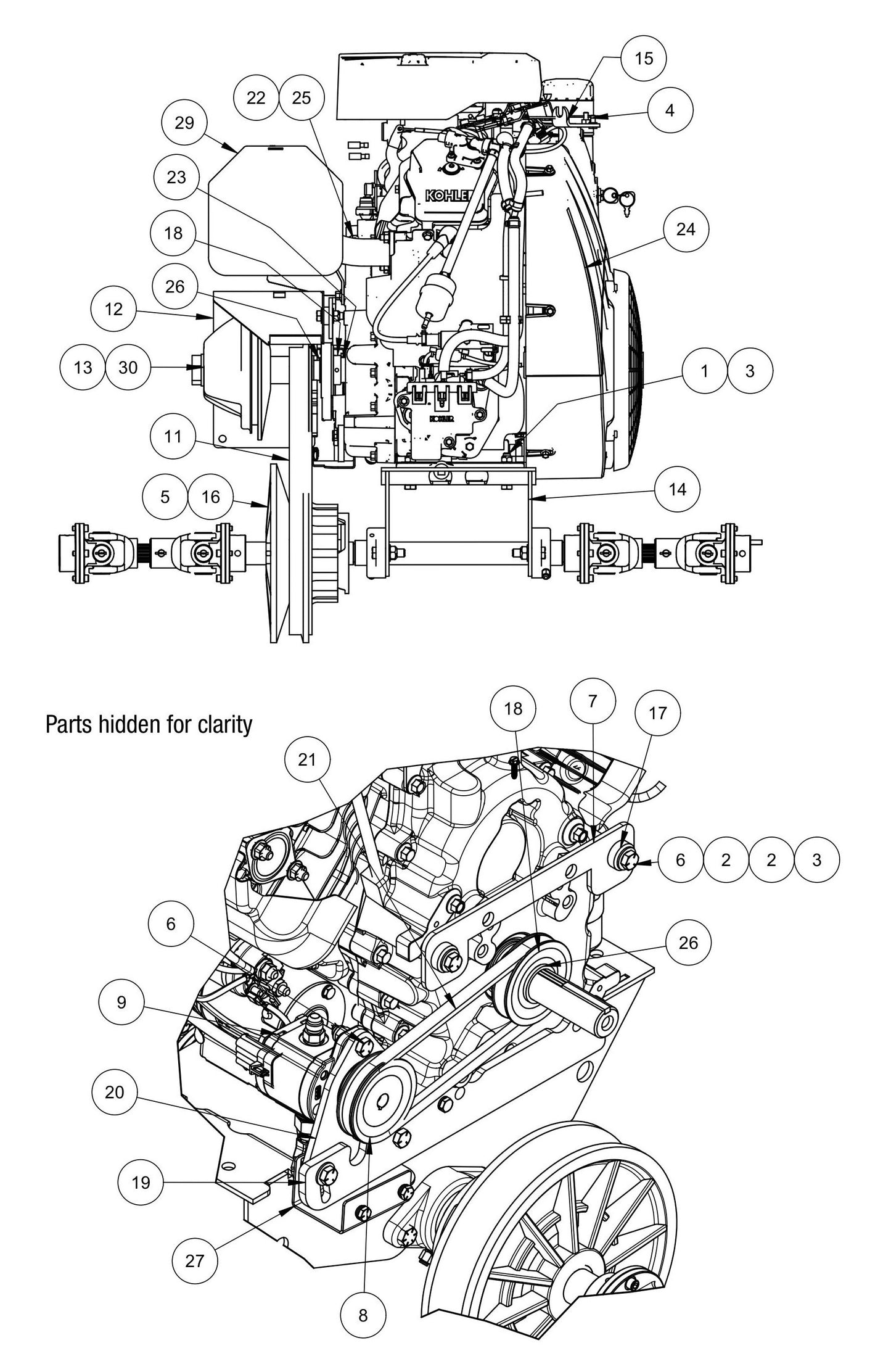

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
