MSP455 (Pre 2021) Pitch Control Assembly Parts

MSP455 (Pre 2021) Pitch Control Assembly Parts

  • MSP455 (Pre 2021) Pitch Control Assembly Parts
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
-
038174 Assy, Psii Pitch Control by Allen Enginnering
$1,370.37
1
015410 Fstn, Rhms 1/4-20 X 3/8 Stainless by Allen Enginnering
$4.95
2
015747 Pin, Roll 3/16 X 1-3/8 Spirol Hd (P by Allen Enginnering
$5.99
3
015768 Fstn, Shcs 1/4-20 X 1/4 Holo by Allen Enginnering
$4.95
4
029812 Bushing, Slide Pitch Control by Allen Enginnering
$139.44
5
032115 Knob,Pitch Control Handle (Rt) by Allen Enginnering
$70.80
6
038176 WLDMT, SP400B PITCH CONT TUBE by Allen Engineering
$478.80
7
038178 Wldmt, Sp400-Pst Pc Shaft by Allen Enginnering
$89.64
8
040147 ASSY, SP/HP PITCH CONT CRANK HANDLE by Allen Engineering
$241.20
A
012710 Bearing Thrust Race by Allen Enginnering
$13.70
B
032191 Stop F/ Pitch Control Handle by Allen Enginnering
$28.64
C
040143 Ball Nose Spring Plunger (Machine Shop) by Allen Enginnering
$36.96
D
040144 HANDLE CRANK, SCREW SHAFT ASSY by Allen Engineering
$115.20
E
040146 CABLE ASSEMBLY BUSHING by Allen Engineering
$88.80
F
040280 Bearing, Thrust For Pitch Control by Allen Enginnering
$77.31
G
040281 SPACER, 1" OD, 5/8 LG, 11 GA WALL by Allen Engineering
$30.00
H
100340 Bearing Nta-1220 Thrust by Allen Enginnering
$16.81
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

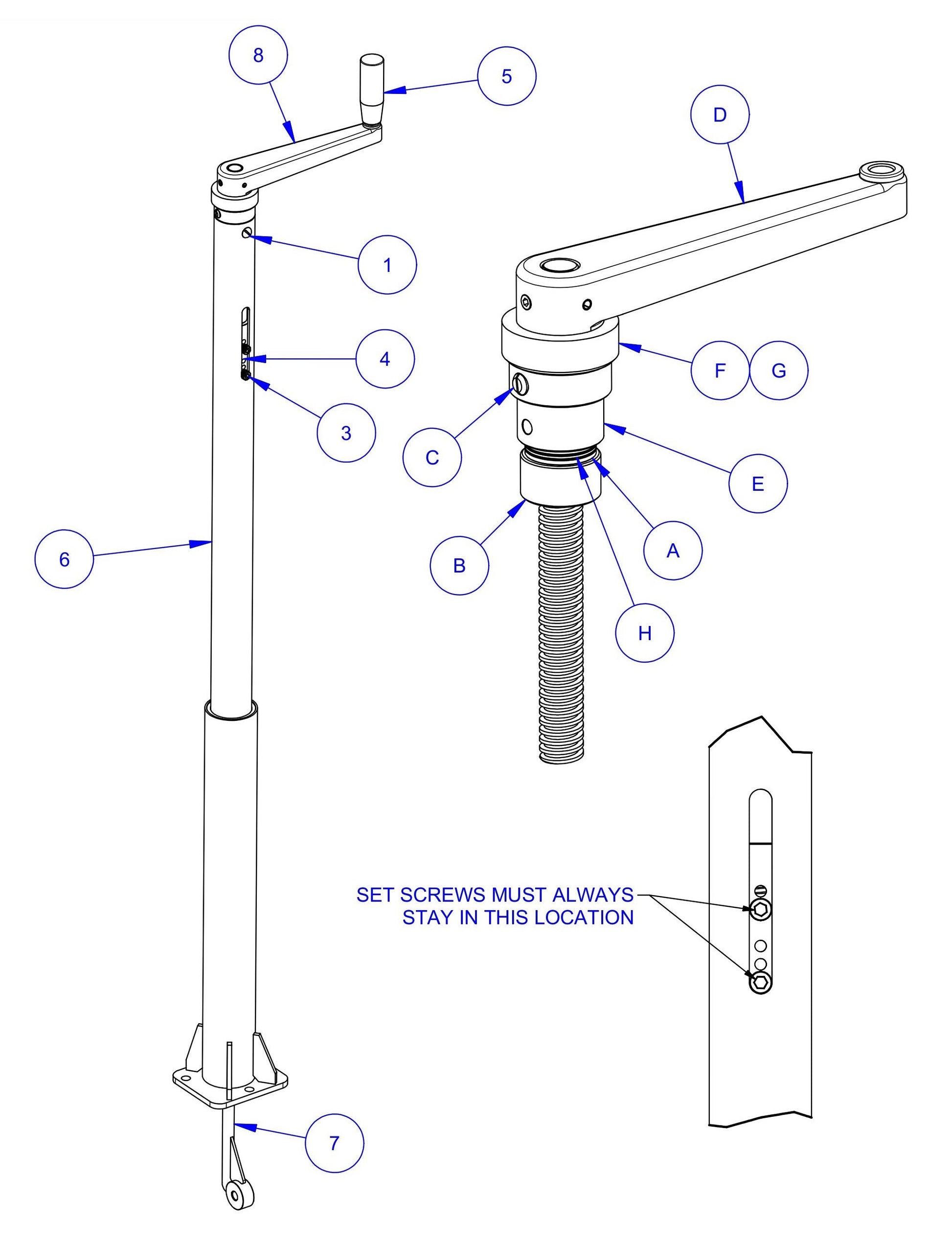

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
