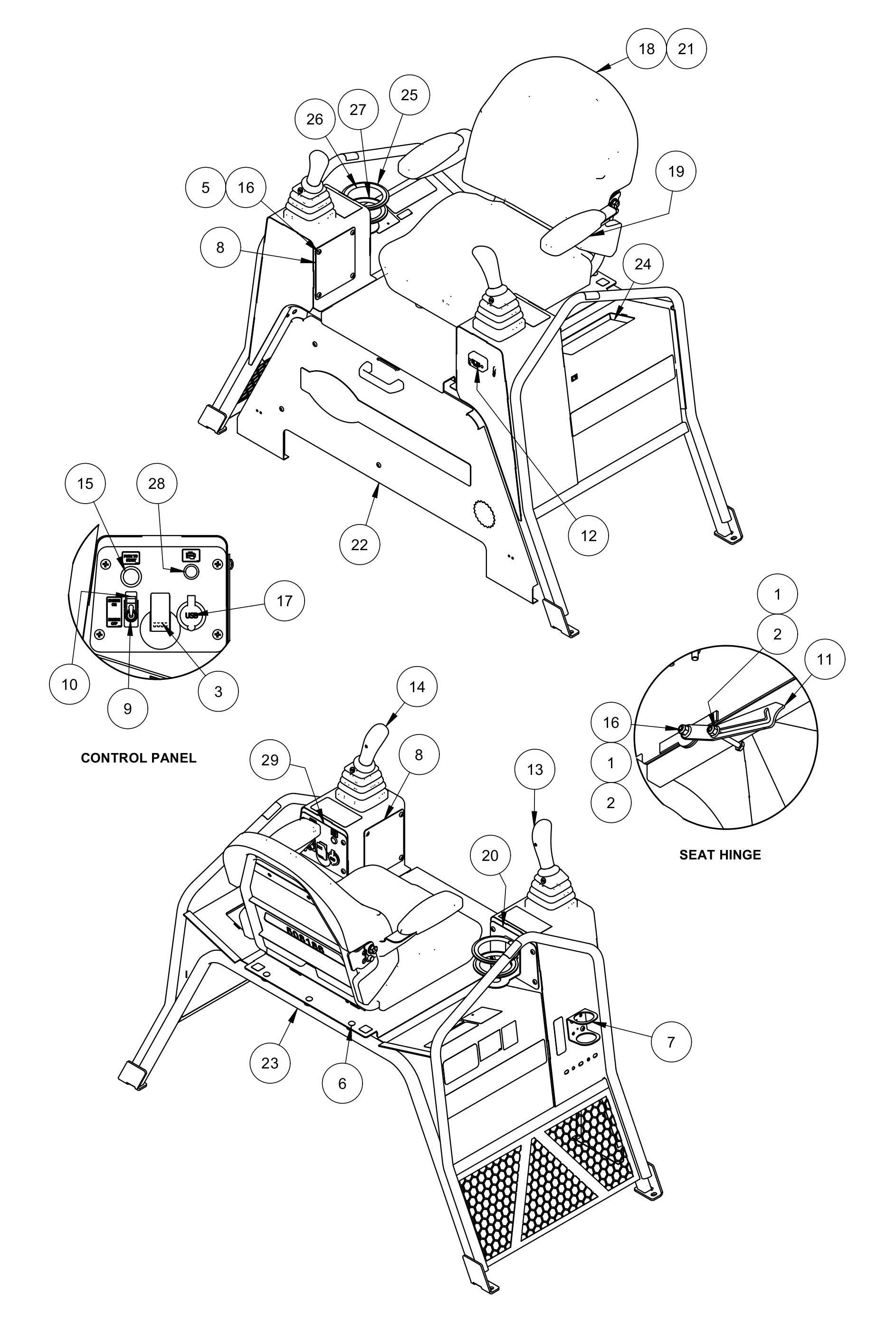

MSP455 Seat Frame Assembly w/ Vanguard Engine Assembly Parts

MSP455 Seat Frame Assembly w/ Vanguard Engine Assembly Parts

  • MSP455 Seat Frame Assembly w/ Vanguard Engine Assembly Parts
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
010081 Fstn, Fw 1/4 Grd8 by Allen Enginnering
$4.95
2
029671 Fstn, Nut Hex 1/4-20 Nyloc by Allen Enginnering
$4.95
3
032125 Switch,Rocker#91B2184(26878037Ver#1 by Allen Enginnering
$58.80
4
047052 Relay, Weatherproof by Allen Enginnering
$31.13
6
047665 Bumper, Rubber F/ Seat Plate Stop by Allen Enginnering
$3.99
7
049632 BRKT, TOOL HOLDER by Allen Engineering
$72.00
9
050603 SWITCH, ON-OFF TOGGLE by Allen Engineering
$24.00
10
050604 COVER, TOGGLE SAFETY by Allen Engineering
$61.20
11
053211 PROP SEAT FRAME by Allen Engineering
$32.40
12
064386 Tach / Hr Meter F/ Efi Engines by Allen Enginnering
$109.56
13
064817 Control Valve, Rh Dual Axis_2 by Allen Enginnering
$1,716.61
14
064818 Control Valve, Lh Single Axis_2 by Allen Enginnering
$1,760.31
15
068956 SWITCH, MOMINTARY OFF/RESET SWITCH (HORN/START) by Allen Engineering
$72.00
17
069850 RECEPTICAL, USB 12VDC by Allen Engineering
$92.40
18
069874 Seat, Rider (Seat Only) by Allen Enginnering
$734.55
19
069875 Arm Rest, Rider Seat (Rh/Lh Set) by Allen Enginnering
$217.38
21
061374 Switch, Kill Seat With Wire, N/O 90 by Allen Enginnering
$39.84
22
071066 ASSEMBLY, FRONT SCREEN by Allen Engineering
$697.20
-
074397 HARNESS, ELECTRICAL FOR MSP445X/455X by Allen Engineering
$986.40
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
