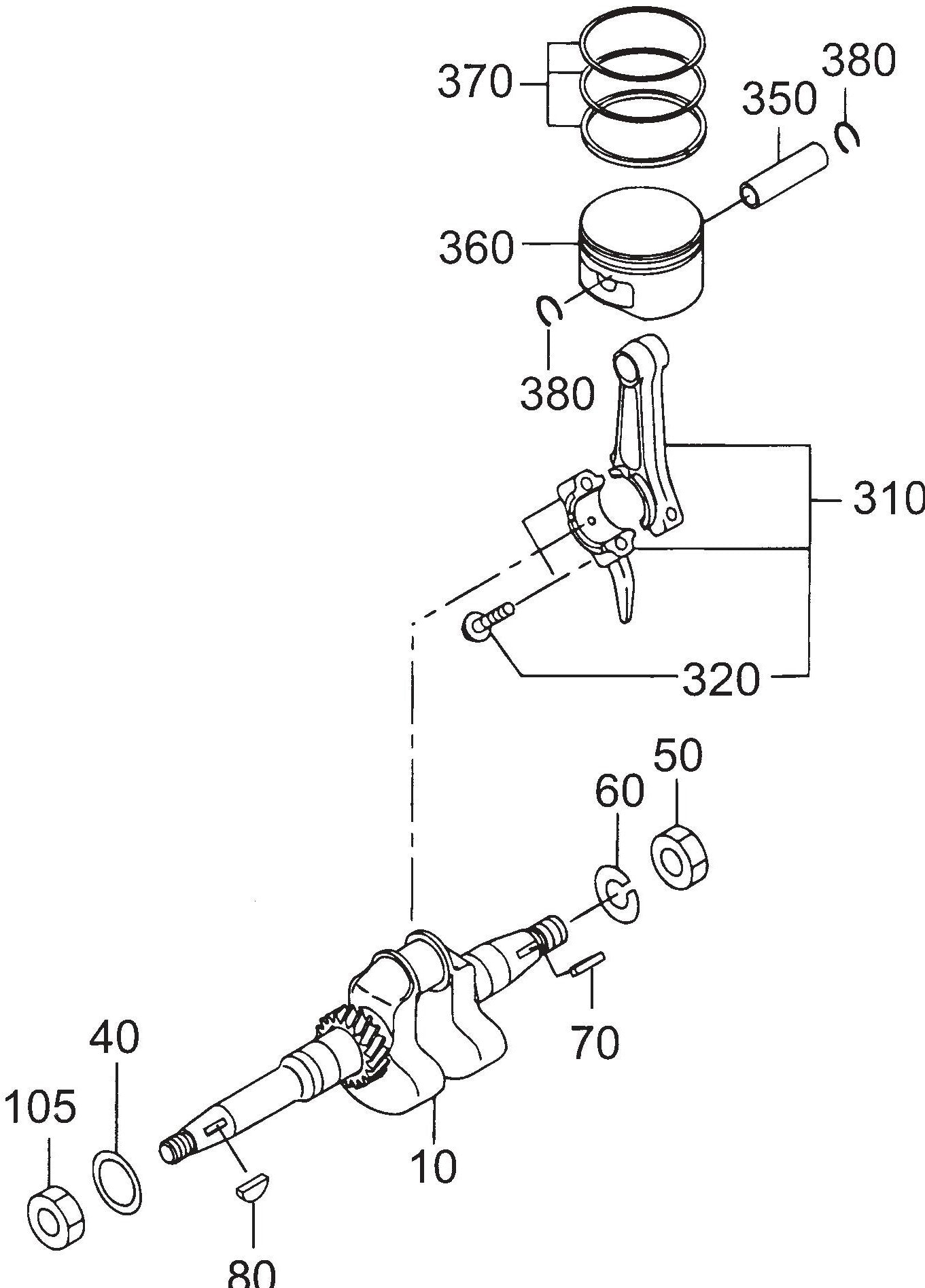

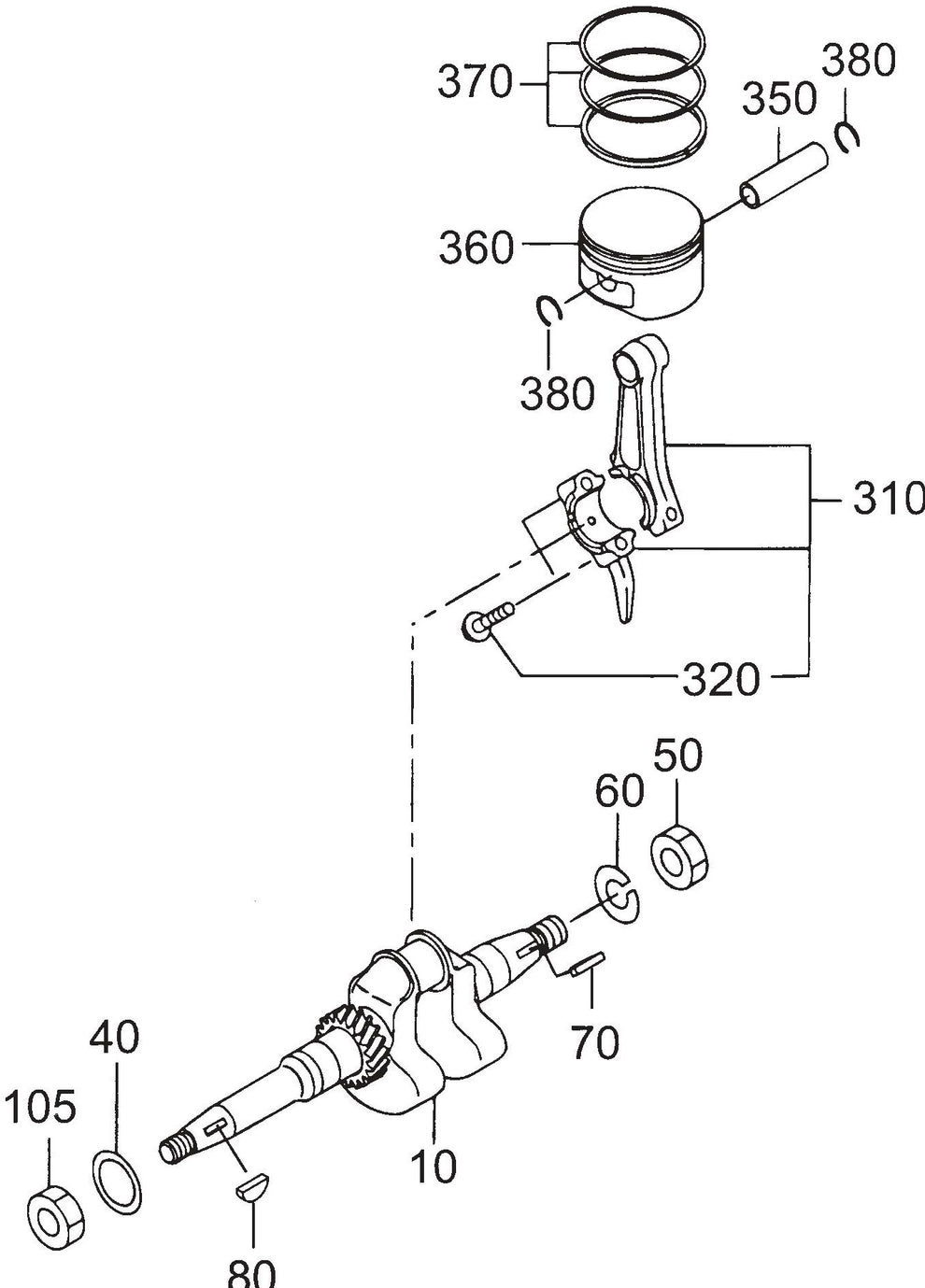

MT55F Robin EH-092D Engine Crankshaft And Piston Assembly Parts

MT55F Robin EH-092D Engine Crankshaft And Piston Assembly Parts

  • MT55F Robin EH-092D Engine Crankshaft And Piston Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
10
2842030101 Crankshaft Cp for Multiquip Mikasa MT55F Jumping Jack Rammer
$287.20
40
0230200100 Spacer T=0.8 for Multiquip Mikasa MT55F Jumping Jack Rammer
$2.48
40
0230200110 Spacer T=1.0 for Multiquip Mikasa MT55F Jumping Jack Rammer
$2.48
40
0230200120 Spacer T=1.2 for Multiquip Mikasa MT55F Jumping Jack Rammer
$2.48
50
0021814000 Nut for Multiquip Mikasa MT55F Jumping Jack Rammer
$4.51
60
0032014000 Spring Washer for Multiquip Mikasa MT55F Jumping Jack Rammer
$2.19
70
0053203101 Woodruff Key for Multiquip Mikasa MT55F Jumping Jack Rammer
$3.69
80
0053204201 Woodruff Key for Multiquip Mikasa MT54F Jumping Jack Rammer
$3.29
105
0173120010 Lock Nut for Multiquip Mikasa MT55F Jumping Jack Rammer
$2.19
310
2842250130 Connecting Rod Assy for Multiquip Mikasa MT55F Jumping Jack Rammer
$62.30
320
2842300103 Connecting Rod Bolt for Multiquip Mikasa MT55F Jumping Jack Rammer
$2.25
350
2302330103 Piston Pin for Multiquip Mikasa MT55F Jumping Jack Rammer
$4.55
360
28423401H3 Piston for Multiquip Mikasa MT55F Jumping Jack Rammer
$95.18
360
28423402H3 Piston 0.25Mm for Multiquip Mikasa MT55F Jumping Jack Rammer
$98.99
360
28423403H3 Piston 0.50Mm for Multiquip Mikasa MT55F Jumping Jack Rammer
$42.73
370
2842351107 Piston Ring Set for Multiquip Mikasa MT55F Jumping Jack Rammer
$41.06
370
2842351207 Piston Ring Set 0.25Mm for Multiquip Mikasa MT55F Jumping Jack Rammer
$63.41
370
2842351307 Piston Ring Set 0.50Mm for Multiquip Mikasa MT55F Jumping Jack Rammer
$67.44
380
0565110010 Clip for Multiquip Mikasa MT55F Jumping Jack Rammer
$2.19
