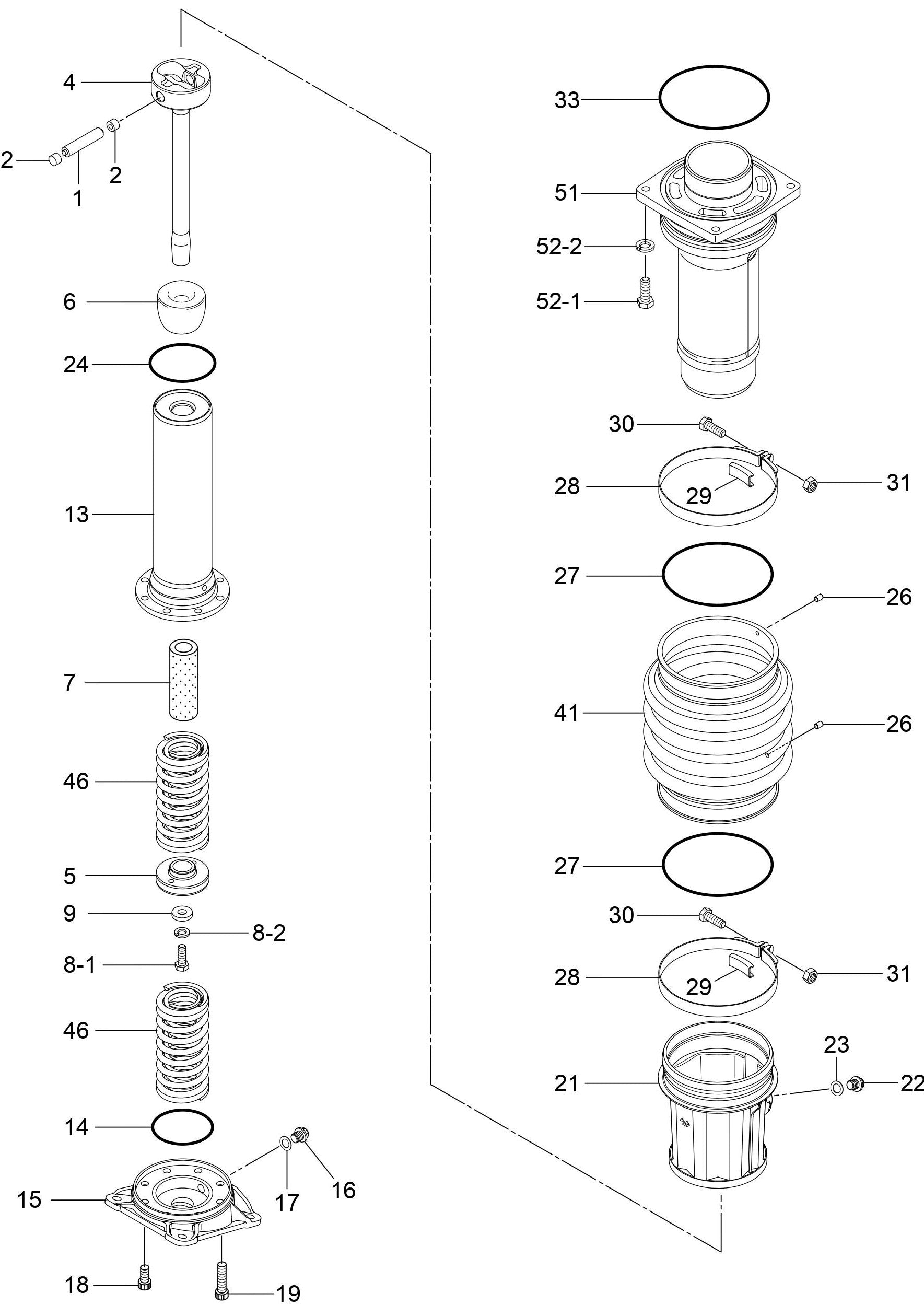

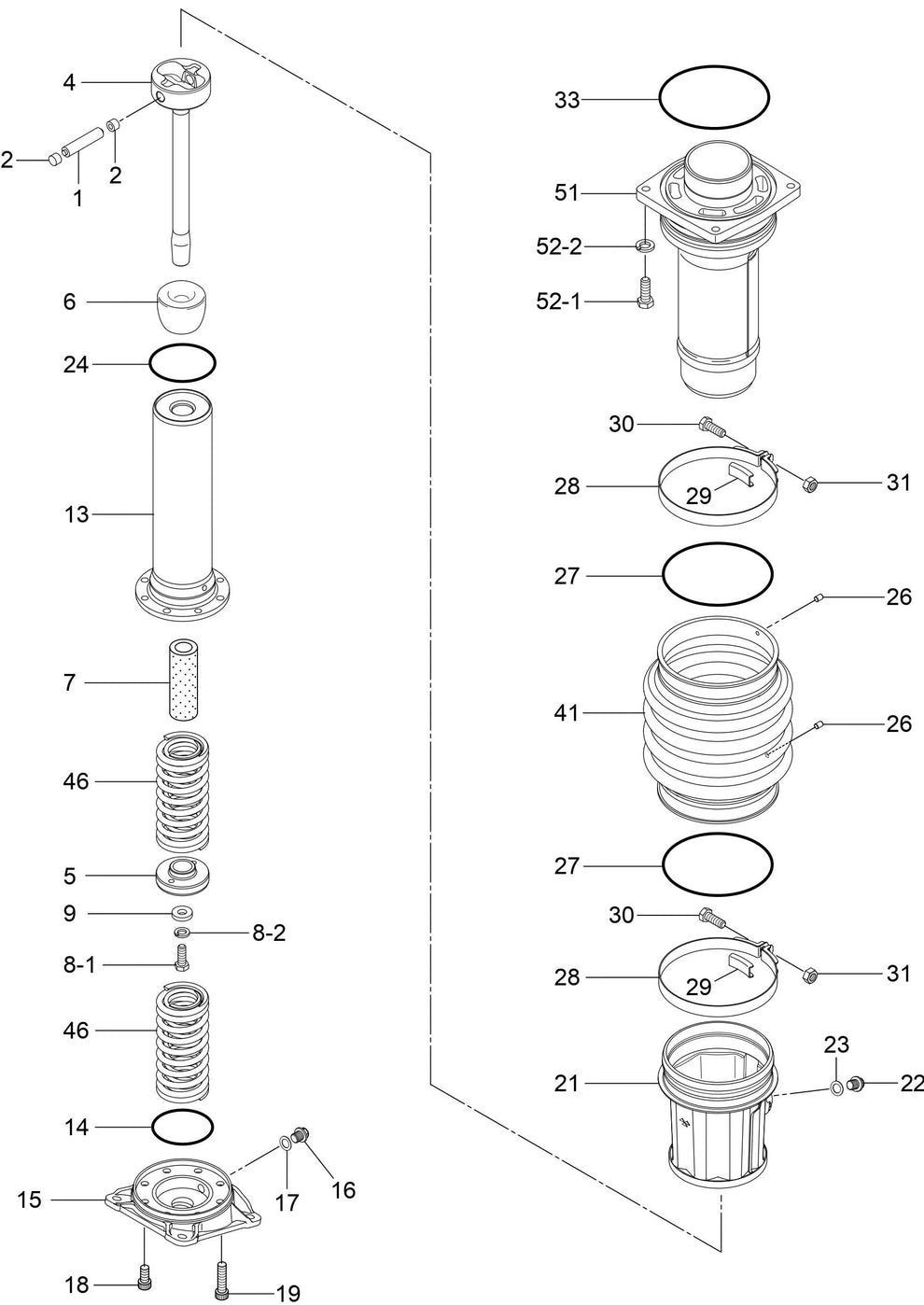

MT77HFR Guide Cylinder And Spring Assembly Parts

MT77HFR Guide Cylinder And Spring Assembly Parts

Skip to product information
1 of 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
366900080 Piston Pin for MT77FR Jumping Jack Rammer Multiquip Mikasa
$21.20
2
366459910 Plug, Piston Pin for MT77FR Jumping Jack Rammer Multiquip Mikasa
$4.99
4
374353310 Piston Rod for MT77FR Jumping Jack Rammer Multiquip Mikasa
$296.84
5
371459690 Piston End for MT77FR Jumping Jack Rammer Multiquip Mikasa
$104.09
6
355447250 Stopper, Upper for MT77FR Jumping Jack Rammer Multiquip Mikasa
$22.93
7
355447260 Stopper, Lower for MT77FR Jumping Jack Rammer Multiquip Mikasa
$21.93
8-1
001121230 Bolt 12X30 for MT77FR Jumping Jack Rammer Multiquip Mikasa
$3.29
8-2
030212300 Pw M12 for MVH200GH Reversible Plate Compactor by Multiquip Mikasa
$1.99
9
952404790 Washer for MT77FR Jumping Jack Rammer Multiquip Mikasa
$13.91
13
366345990 Spring Cylinder for MT77FR Jumping Jack Rammer Multiquip Mikasa
$738.98
14
050100900 O-Ring for MT77FR Jumping Jack Rammer Multiquip Mikasa
$26.81
15
355214140 Foot Plate for MT77FR Jumping Jack Rammer Multiquip Mikasa
$240.01
16
953405270 Packing for MT77FR Jumping Jack Rammer Multiquip Mikasa
$30.64
22
953405270 Packing for MT77FR Jumping Jack Rammer Multiquip Mikasa
$30.64
17
953405260 Packing 1/4 for Multiquip Mikasa MT54F Jumping Jack Rammer
$15.50
18
014210020 Socket Head Bolt 10X20 for MT77FR Jumping Jack Rammer Multiquip Mikasa
$5.38
19
014210040 Socket Head Bolt 10X40 for MT77FR Jumping Jack Rammer Multiquip Mikasa
$3.29
21
355119020 Sleeve for MT77FR Jumping Jack Rammer Multiquip Mikasa
$284.20
23
953405260 Packing for Multiquip Mikasa MTX80HDR Jumping Jack Rammer
$15.50
24
050200950 O-Ring for MT77FR Jumping Jack Rammer Multiquip Mikasa
$13.11
26
354446170 Pin for Multiquip Mikasa MTX80HDR Jumping Jack Rammer
$9.99
27
050931500 O-Ring for MT77FR Jumping Jack Rammer Multiquip Mikasa
$14.01
28
354336352 Bellows Clamp for MT77FR Jumping Jack Rammer Multiquip Mikasa
$27.34
29
354442340 Band Guide, Bellows for MT77FR Jumping Jack Rammer Multiquip Mikasa
$6.86
30
011008040 Bolt 8X40 for MT77FR Jumping Jack Rammer Multiquip Mikasa
$3.85
31
020108060 Hex. Nut for GA23R2 A.C. Portable Generator by MQ Multiquip
$2.19
33
050201500 O-Ring for MT77FR Jumping Jack Rammer Multiquip Mikasa
$13.61
41
Multiquip Mikasa 354010010 Orange Bellows Boot for MTX70HD, MTX70HDR, MTX80, MTX90, MT70, MT75 & MT85 Tamping Rammers
$272.74
46
374469820 Main Spring for MT77FR Jumping Jack Rammer Multiquip Mikasa
$72.51
51
374219410 Guide Cylinder for MT77FR Jumping Jack Rammer Multiquip Mikasa
$413.88
52-1
012210040 Bolt 10X40 for MT77FR Jumping Jack Rammer Multiquip Mikasa
$3.29
52-2
030210250 Lock Washer, M10 for Multiquip Mikasa MRH800DS2 Walk Behind Tandem Roller
$2.19
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
