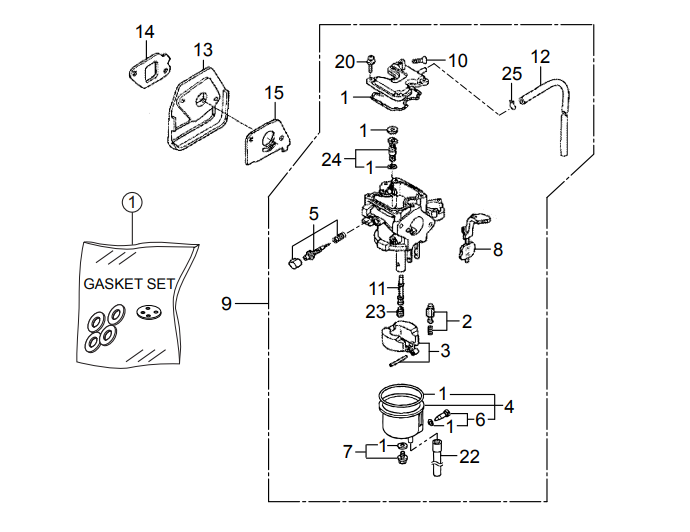

MT77HFR Honda GXR120RTKRB6 Engine- Carburetor Assembly Parts

MT77HFR Honda GXR120RTKRB6 Engine- Carburetor Assembly Parts

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
16010Z4EW51 Gasket Set for MT77FR Jumping Jack Rammer Multiquip Mikasa
$139.26
2
16011ZDJ851 Valve Set, Float for MT77FR Jumping Jack Rammer Multiquip Mikasa
$97.49
3
16013ZG0811 Float Set for MT77FR Jumping Jack Rammer Multiquip Mikasa
$33.59
4
16015Z4EW51 Chamber Set, Float for MT77FR Jumping Jack Rammer Multiquip Mikasa
$133.84
5
16016Z0DV21 Screwset for MT77FR Jumping Jack Rammer Multiquip Mikasa
$11.55
6
16024124760 Screwset, Drain for MT77FR Jumping Jack Rammer Multiquip Mikasa
$28.27
7
16028ZC0005 Screwset for MT77FR Jumping Jack Rammer Multiquip Mikasa
$19.38
8
16044Z0DV21 Lever Set, Choke for MT77FR Jumping Jack Rammer Multiquip Mikasa
$38.41
9
16100ZDJ841 Carburetor Assembly for MT77FR Jumping Jack Rammer Multiquip Mikasa
$199.12
10
16124ZE0005 Screw, Throttle Stop for Multiquip Mikasa MTR40HF Jumping Jack Rammer
$25.93
11
16166ZDJ851 Nozzle, Main for MT77FR Jumping Jack Rammer Multiquip Mikasa
$51.35
12
16199Z0DV21 Tube, Airvent for MT77FR Jumping Jack Rammer Multiquip Mikasa
$11.40
13
16211Z0D010 Insulator, Carburetor for MT77FR Jumping Jack Rammer Multiquip Mikasa
$14.65
14
16212Z0DV20 Packing, Insulator for MT77FR Jumping Jack Rammer Multiquip Mikasa
$4.20
15
16221ZG0801 Packing, Carburetor for MT77FR Jumping Jack Rammer Multiquip Mikasa
$4.97
20
938920401208 Screw-Washer, 4X12 for MT77FR Jumping Jack Rammer Multiquip Mikasa
$27.29
22
950030501931 Tube, Vinyl for MT77FR Jumping Jack Rammer Multiquip Mikasa
$3.29
23
99101ZG00600 Jet, Main for MT77FR Jumping Jack Rammer Multiquip Mikasa
$10.93
24
99204ZE00350 Jet Set, Pilot for MT77FR Jumping Jack Rammer Multiquip Mikasa
$29.41
25
90602921000 Clip, Tube for MT77FR Jumping Jack Rammer Multiquip Mikasa
$2.99
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
