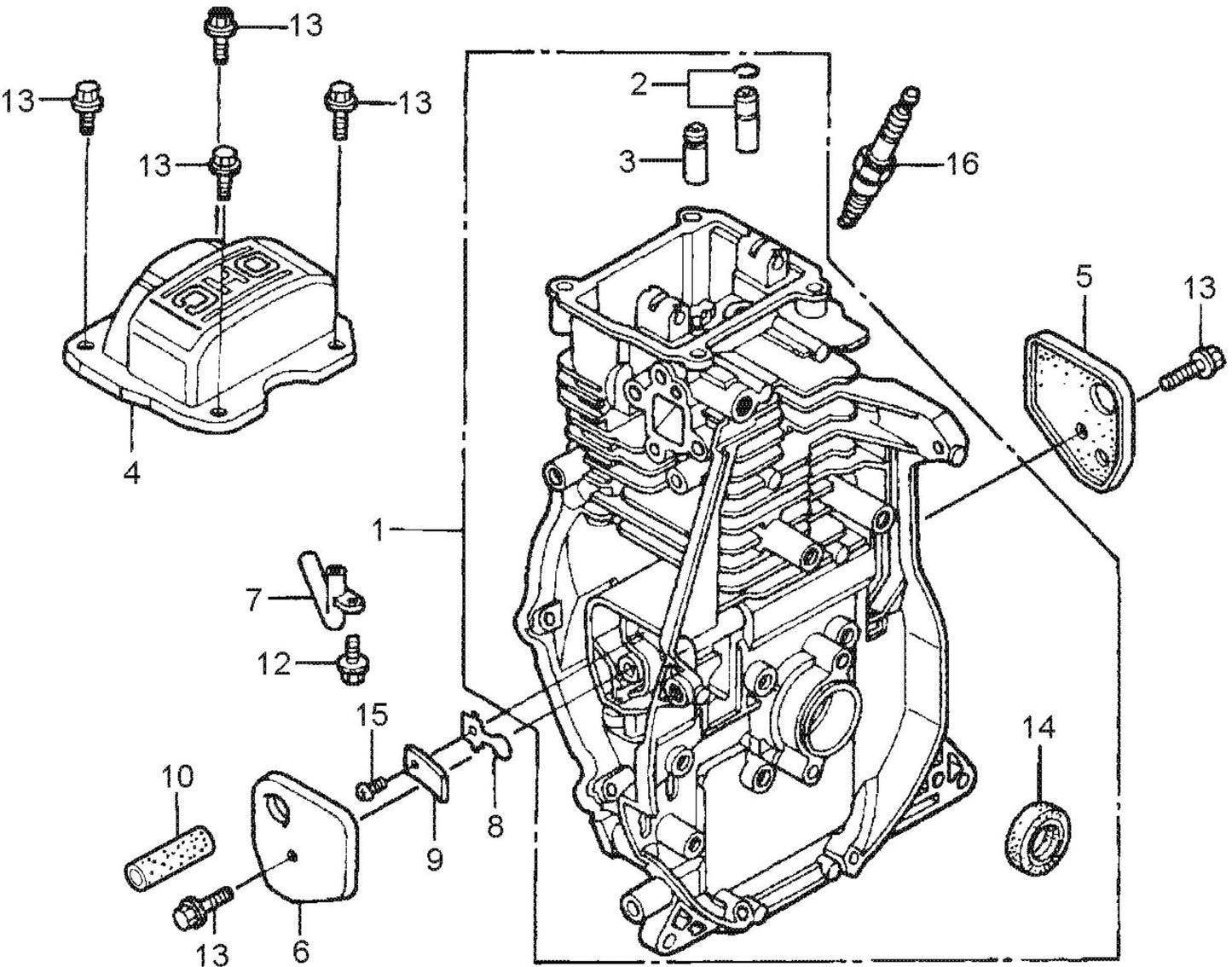

MT77HFR Honda GXR120RTKRB6 Engine Cylinder Barrel Assembly Parts

MT77HFR Honda GXR120RTKRB6 Engine Cylinder Barrel Assembly Parts

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
12000ZDJ305 Barrel Assembly, Cylinder for MT77FR Jumping Jack Rammer Multiquip Mikasa
$230.30
2
12201Z0D305 NLA Guide Assembly, Ex. Valve (O.S.) for MT77FR Jumping Jack Rammer Multiquip Mikasa
Call for Price call for price call for price
3
12204Z0D305 NLA Guide, In. Valve (O.S.) for MT77FR Jumping Jack Rammer Multiquip Mikasa
Call for Price call for price call for price
4
12311Z0D000 Cover, Head for MT77FR Jumping Jack Rammer Multiquip Mikasa
$39.69
5
12355Z0D000 Cover Complete A, Breather for MT77FR Jumping Jack Rammer Multiquip Mikasa
$16.62
6
12365Z0D000 Cover Complete B, Breather for MT77FR Jumping Jack Rammer Multiquip Mikasa
$17.53
7
15171Z0DV00 Pipe, Breather for MT77FR Jumping Jack Rammer Multiquip Mikasa
$11.01
8
15571Z0DV71 Valve, Oil Outlet for MT77FR Jumping Jack Rammer Multiquip Mikasa
$4.99
9
15572ZM7000 Plate, Stopper for MT77FR Jumping Jack Rammer Multiquip Mikasa
$3.68
10
15721Z0D000 Tube, Breather for MT77FR Jumping Jack Rammer Multiquip Mikasa
$5.72
12
90008ZM7000 Bolt 4X10 for Multiquip Mikasa MTR40HF Jumping Jack Rammer
$27.29
13
90014952000 Bolt, Flange 6X14 for Multiquip Mikasa MTR40HF Jumping Jack Rammer
$5.00
14
91202ZE6013 Oil Seal, 22X35X6 for MT77FR Jumping Jack Rammer Multiquip Mikasa
$27.29
15
93500030050A Screw, Pan 3X5 for Multiquip Mikasa MTR40HF Jumping Jack Rammer
$27.29
16
9805655777 Spark Plug for Multiquip Mikasa MTR40HF Jumping Jack Rammer
$7.32
View full details
