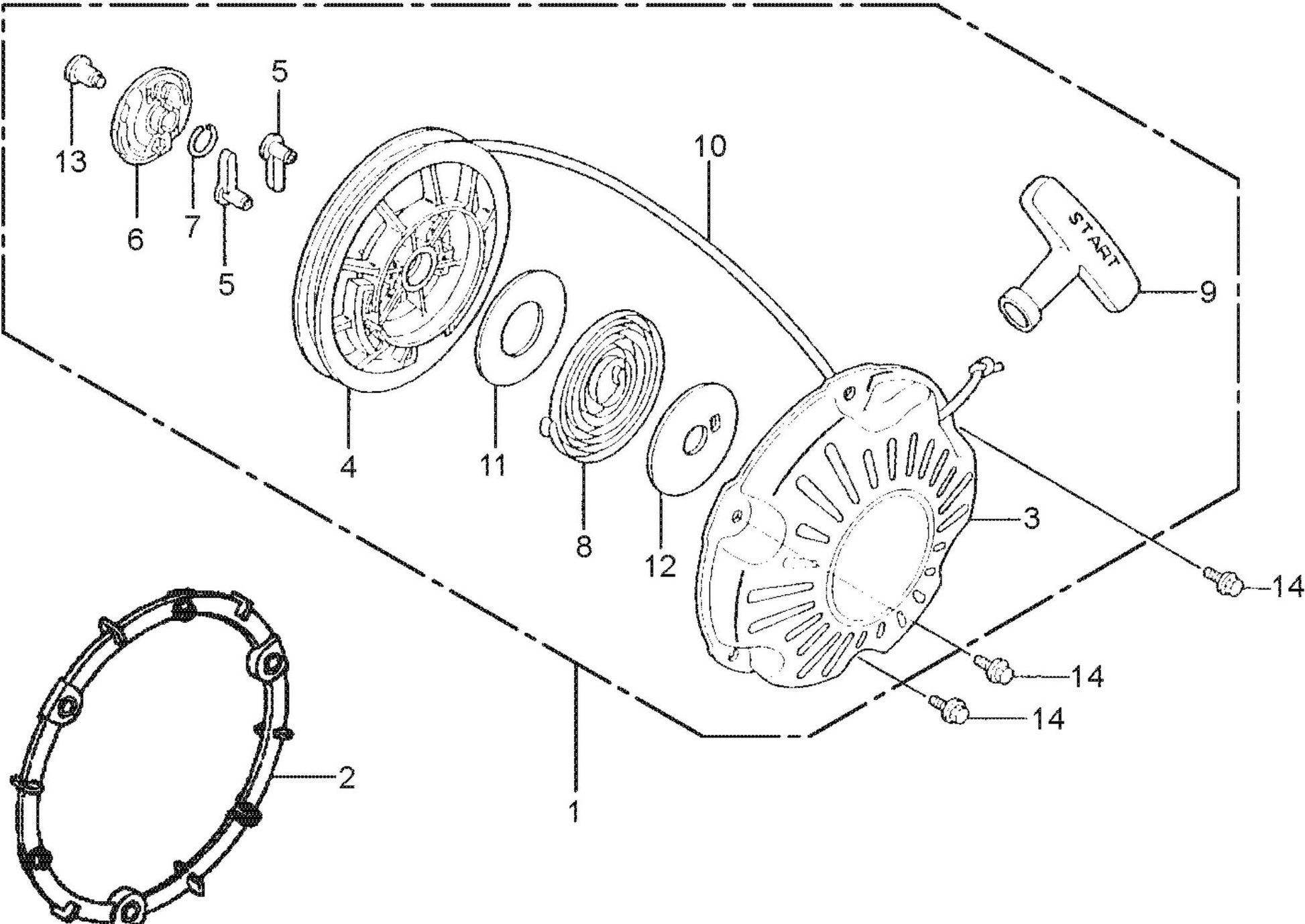

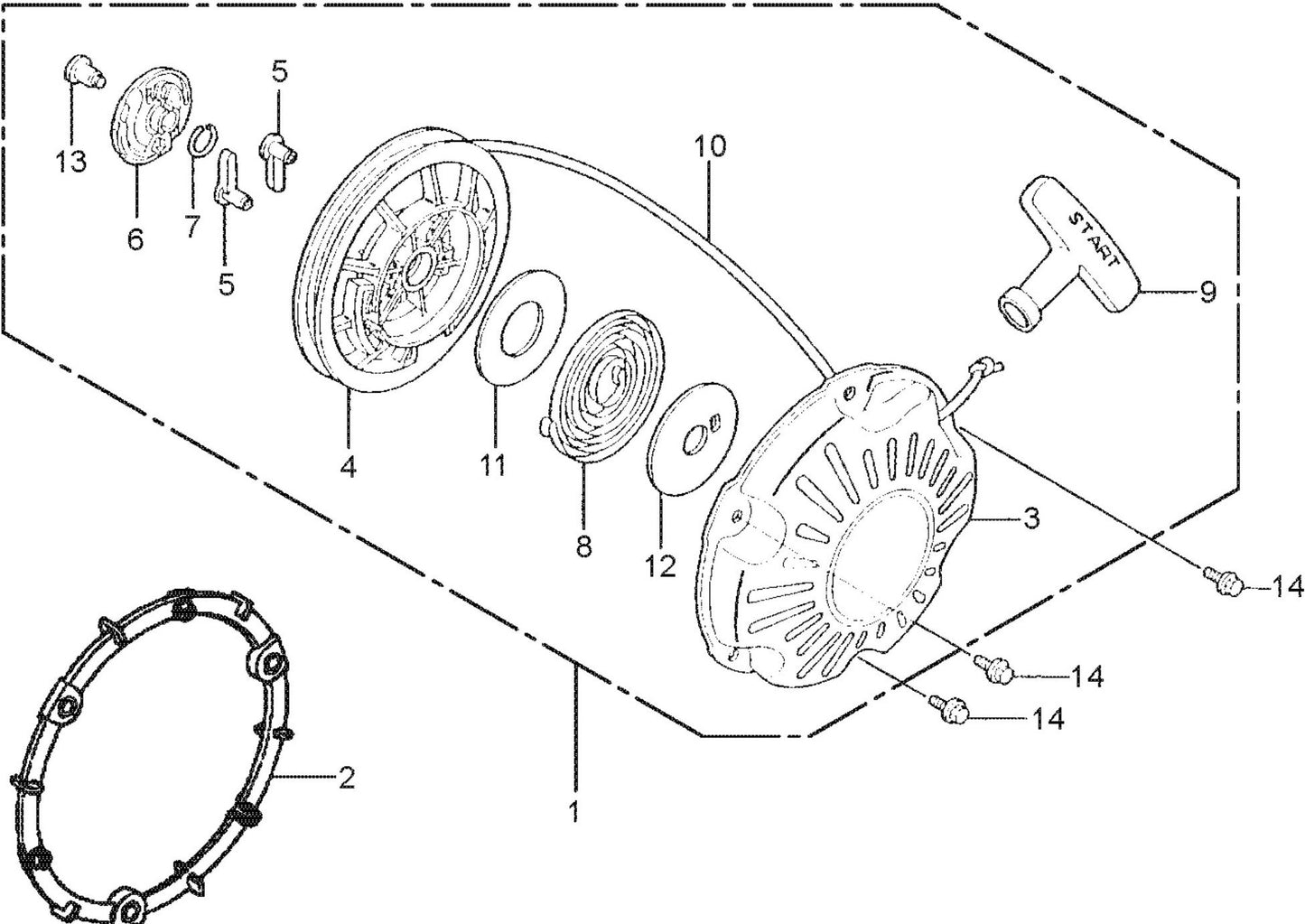

MT77HFR Honda GXR120RTKRB6 Engine Recoil Starter Assembly Parts

MT77HFR Honda GXR120RTKRB6 Engine Recoil Starter Assembly Parts

  • MT77HFR Honda GXR120RTKRB6 Engine Recoil Starter Assembly Parts
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
28400ZDJ003ZB Starter Assembly, Recoil, Blk for MT77FR Jumping Jack Rammer Multiquip Mikasa
$46.42
2
28405ZDJ000 Spacer, Recoil Starter Mounting for MT77FR Jumping Jack Rammer Multiquip Mikasa
$29.51
3
28410ZDJ003ZB Case Complete, Recoil Starter, Blk. for MT77FR Jumping Jack Rammer Multiquip Mikasa
$38.80
4
28421ZDD003 Reel, Recoil Starter, Blk. for MT77FR Jumping Jack Rammer Multiquip Mikasa
$21.22
5
28422ZG0W02 Ratchet, Starter for MT77FR Jumping Jack Rammer Multiquip Mikasa
$27.29
6
28433ZG0W02 Guide, Ratchet for MT77FR Jumping Jack Rammer Multiquip Mikasa
$27.29
7
28441ZW9003 Spring, Friction for MT77FR Jumping Jack Rammer Multiquip Mikasa
$27.29
8
28442ZH8003 Spring, Recoil Starter for Multiquip Mikasa MVB85H Plate Tamper Compactor
$31.37
9
28461ZDD003 Knob, Recoil Starter for MT77FR Jumping Jack Rammer Multiquip Mikasa
$3.29
10
28462Z0DV03 Rope, Recoil Starter for Multiquip Mikasa MTR40HF Jumping Jack Rammer
$12.98
11
28467Z0DV02 Plate, Side for MT77FR Jumping Jack Rammer Multiquip Mikasa
$27.29
12
28468Z0DV02 Plate, Slide for MT77FR Jumping Jack Rammer Multiquip Mikasa
$27.29
13
90003ZH8003 Screw, Setting for Multiquip Mikasa MVHR60HW Plate Tamper Compactor
$27.29
14
957010601400 Bolt, Flange, 6X14 for MT77FR Jumping Jack Rammer Multiquip Mikasa
$3.29
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
