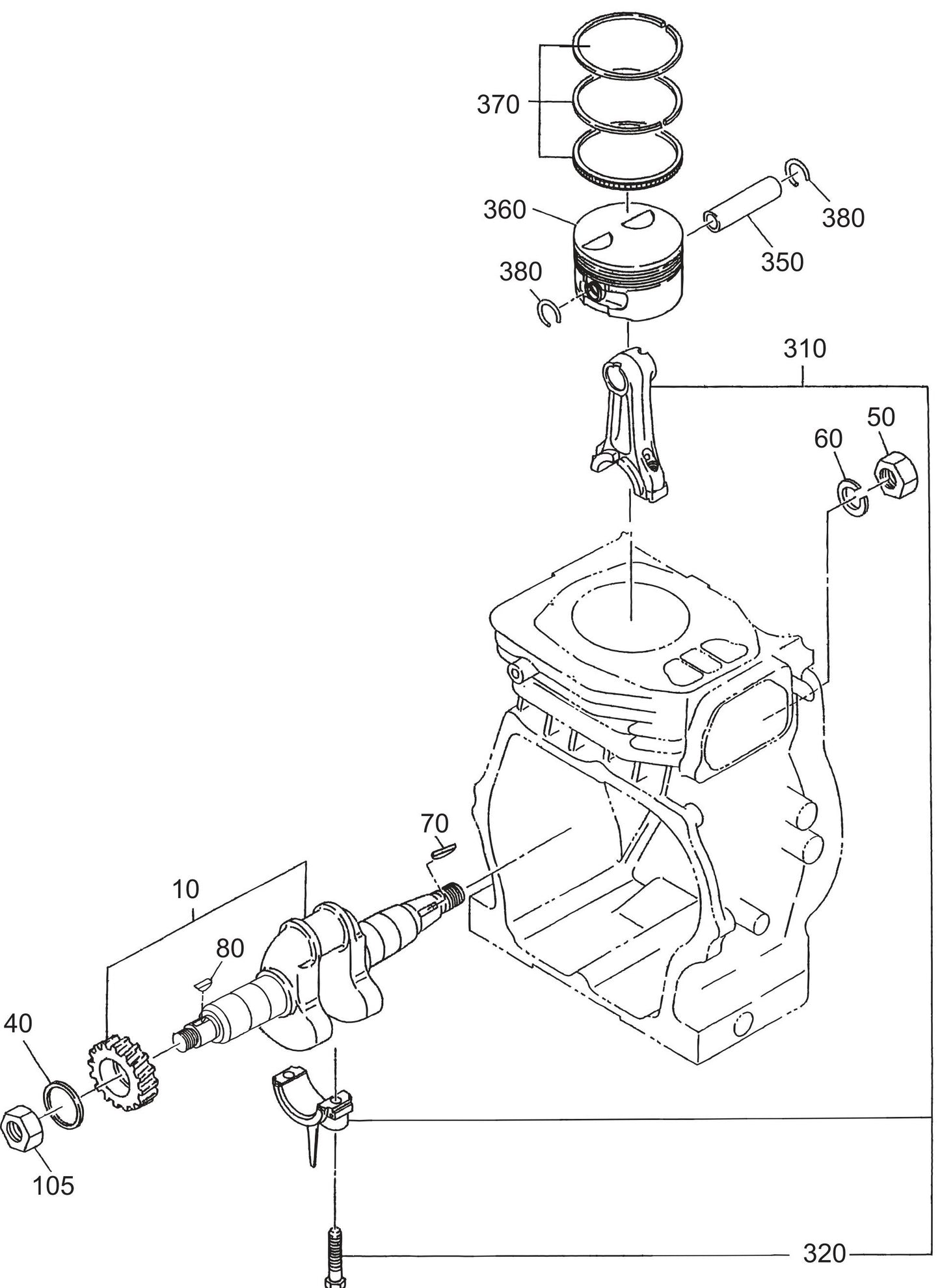

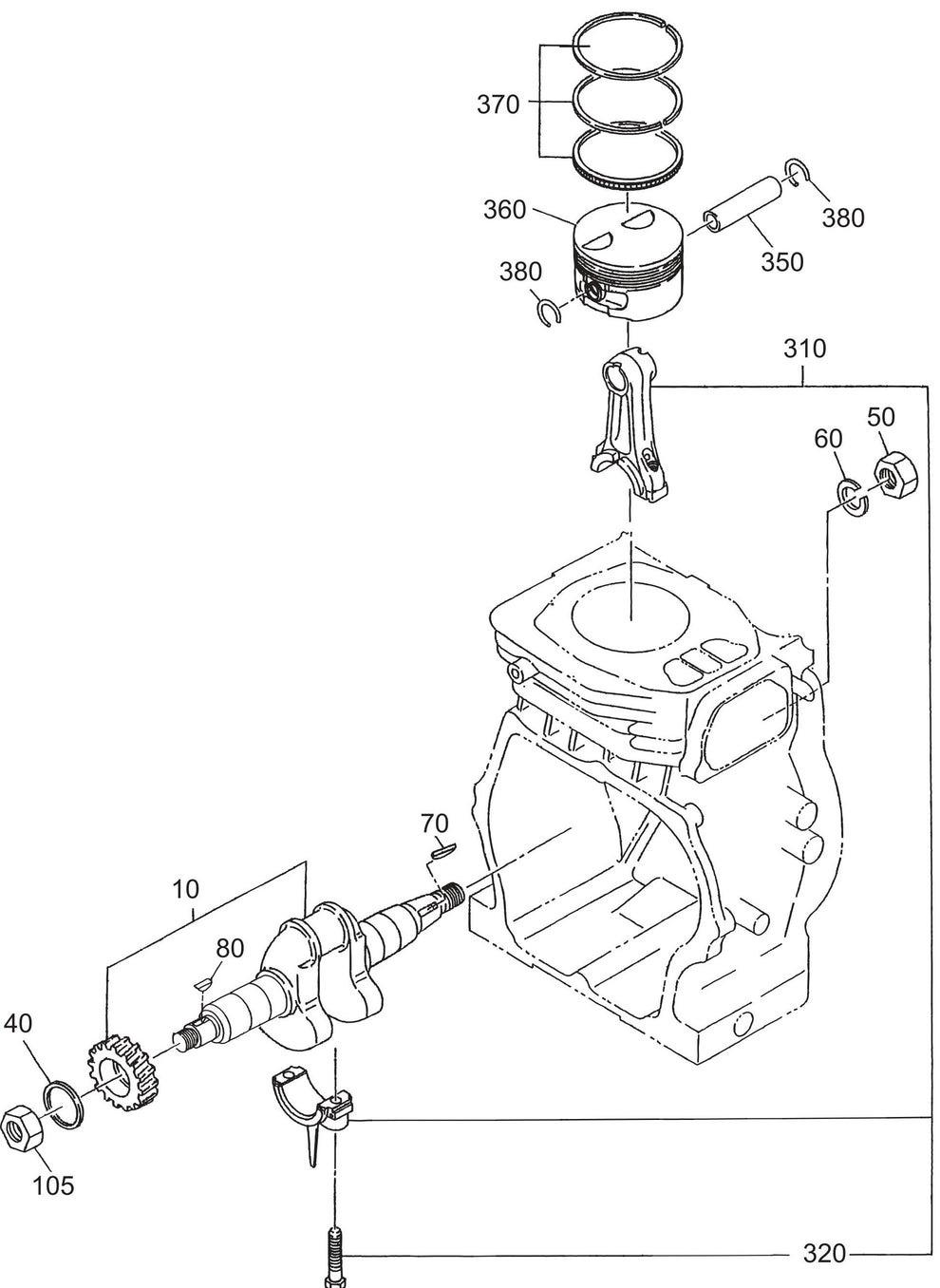

MT84FA Robin EH-12-2D46420 Engine Crankshaft And Piston Assembly Parts

MT84FA Robin EH-12-2D46420 Engine Crankshaft And Piston Assembly Parts

  • MT84FA Robin EH-12-2D46420 Engine Crankshaft And Piston Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
10
2682190111 Crankshaft Cp for Multiquip Mikasa MT84FA Jumping Jack Rammer
$267.88
40
0230250110 Spacer T=0.6 for Multiquip Mikasa MT84FA Jumping Jack Rammer
$6.50
40
0230250120 Spacer T=0.8 for Multiquip Mikasa MT84FA Jumping Jack Rammer
$5.49
40
0230250130 Spacer T=1.0 for JA Series Walk Behind Trowels by Multiquip Whiteman
$4.68
50
0021814000 Nut for Multiquip Mikasa MT84FA Jumping Jack Rammer
Call for Price call for price call for price
60
0032014000 Spring Washer for Multiquip Mikasa MT84FA Jumping Jack Rammer
$2.19
70
0323030010 Woodruff Key for GA29R Portable AC Generator with Gasoline Engine by MQ Multiquip
$6.33
80
0053204201 Woodruff Key for Multiquip Mikasa MT54F Jumping Jack Rammer
$3.29
105
0173120010 Lock Nut for Multiquip Mikasa MT54F Jumping Jack Rammer
$2.19
310
2522250110 Connecting Rod Assy for Multiquip Mikasa MT84FA Jumping Jack Rammer
$86.45
320
2362300103 Connecting Rod Bolt for Multiquip Mikasa MT84FA Jumping Jack Rammer
$9.05
350
2682330103 Piston Pin for Multiquip Mikasa MT84FA Jumping Jack Rammer
$9.46
360
2682340103 Piston Std. for Multiquip Mikasa MT84FA Jumping Jack Rammer
$46.94
360
2682340203 Piston O.S. 0.25Mm for Multiquip Mikasa MT84FA Jumping Jack Rammer
$117.93
360
2682340203 Piston O.S. 0.25Mm for Multiquip Mikasa MT84FA Jumping Jack Rammer
$117.93
370
2522350117 Piston Ring Set Std for Multiquip Mikasa MT84FA Jumping Jack Rammer
$40.62
370
2522350217 Piston Ring Set 0.25 O.S. for Multiquip Mikasa MT84FA Jumping Jack Rammer
$85.46
370
2522350317 Piston Ring Set 0.50 O.S. for Multiquip Mikasa MT84FA Jumping Jack Rammer
$85.46
380
2152500403 Clip for Multiquip Mikasa MT84FA Jumping Jack Rammer
$2.19
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
