Combination Lever Assembly Parts-MTX60HD

Combination Lever Assembly Parts-MTX60HD

  • Combination Lever Assembly Parts-MTX60HD
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
A
Multiquip Mikasa Combination Lever with Throttle Wire 366900032 for MTX60HD Tamping Rammer
$215.05
B
Multiquip Mikasa Comb. Lever W/Out Throttle Wire 956200110 for MTX60HD Tamping Rammer
$164.95
1
Multiquip Mikasa Fuel Cock 366349430 for MTX60HD Tamping Rammer
$23.04
2
Multiquip Mikasa Lever 366010310 for MTX60HD Tamping Rammer
$11.50
3
Multiquip Mikasa Slider 366010190 for MTX60HD Tamping Rammer
$7.95
4
Multiquip Mikasa End Cap 366010200 for MTX60HD Tamping Rammer
$8.98
5
Multiquip Mikasa Wire cap 366010210 for MTX60HD Tamping Rammer
$8.98
6
Multiquip Mikasa Bolt And Washer Set 366010220 for MTX60HD Tamping Rammer
$19.28
7
Multiquip Mikasa Nut M8, H=5 020408050 for MTX60HD Tamping Rammer
$2.31
8
Multiquip Mikasa Socket Head Screw/Th.Wire 959407650 for MTX60HD Tamping Rammer
$3.01
9
366010320 Stop Switch for Multiquip Mikasa MTX50HD Jumping Jack Rammer
$35.97
10
956100062 Throttle Wire for Multiquip Mikasa MTX50HD Jumping Jack Rammer
$34.55
11
Multiquip Mikasa Tapping Screw B1 4X12 094010051 for MTX60HD Tamping Rammer
$2.31
12
Multiquip Mikasa Tapping Screw B1 4X30 094010052 for MTX60HD Tamping Rammer
$2.75
13
Multiquip Mikasa O-Ring, P15 050200150 for MTX60HD Tamping Rammer
$5.49
14
Multiquip Mikasa O-Ring, P11 050200110 for MTX60HD Tamping Rammer
$5.45
View full details

Frequently asked questions

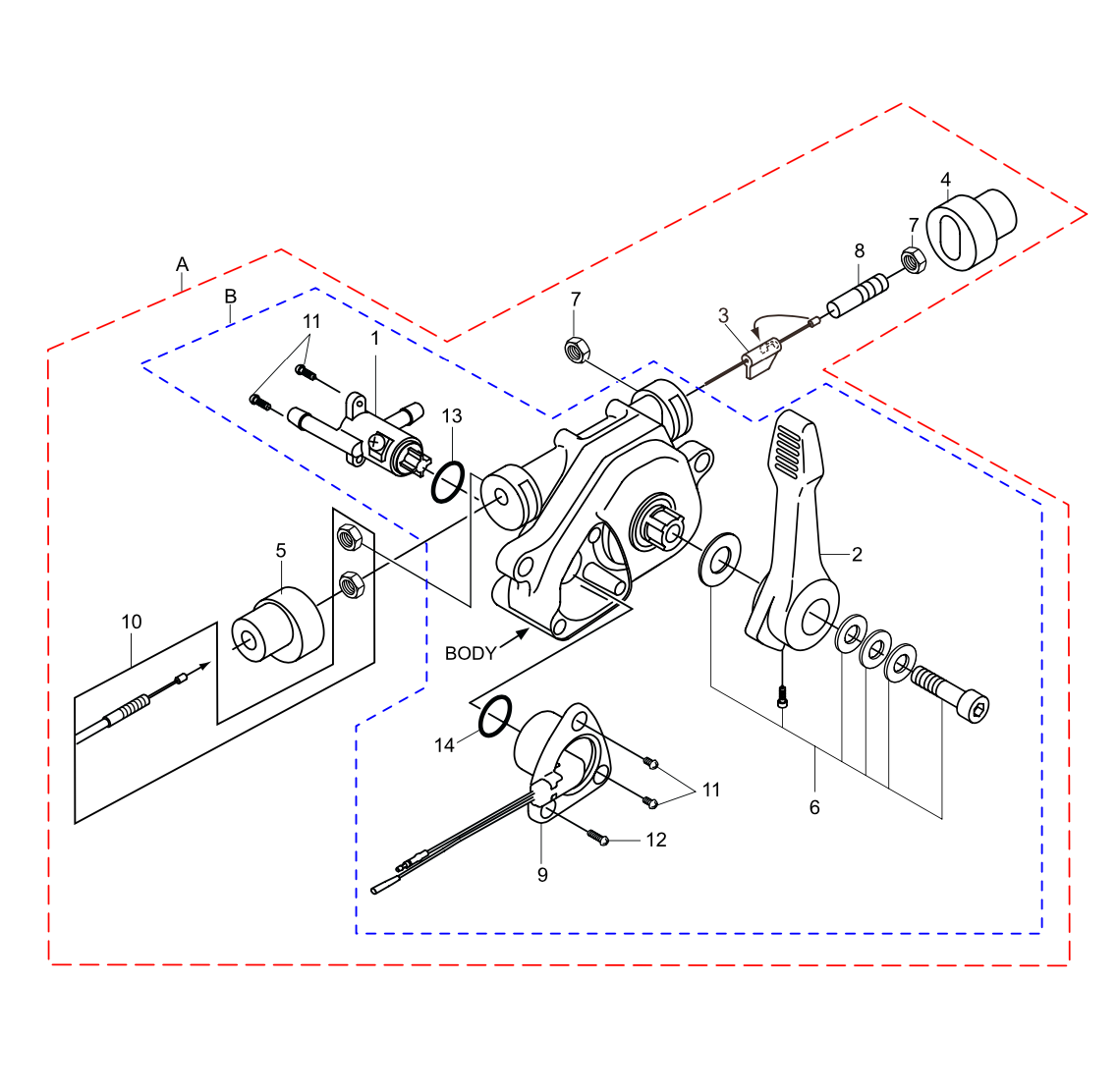

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
