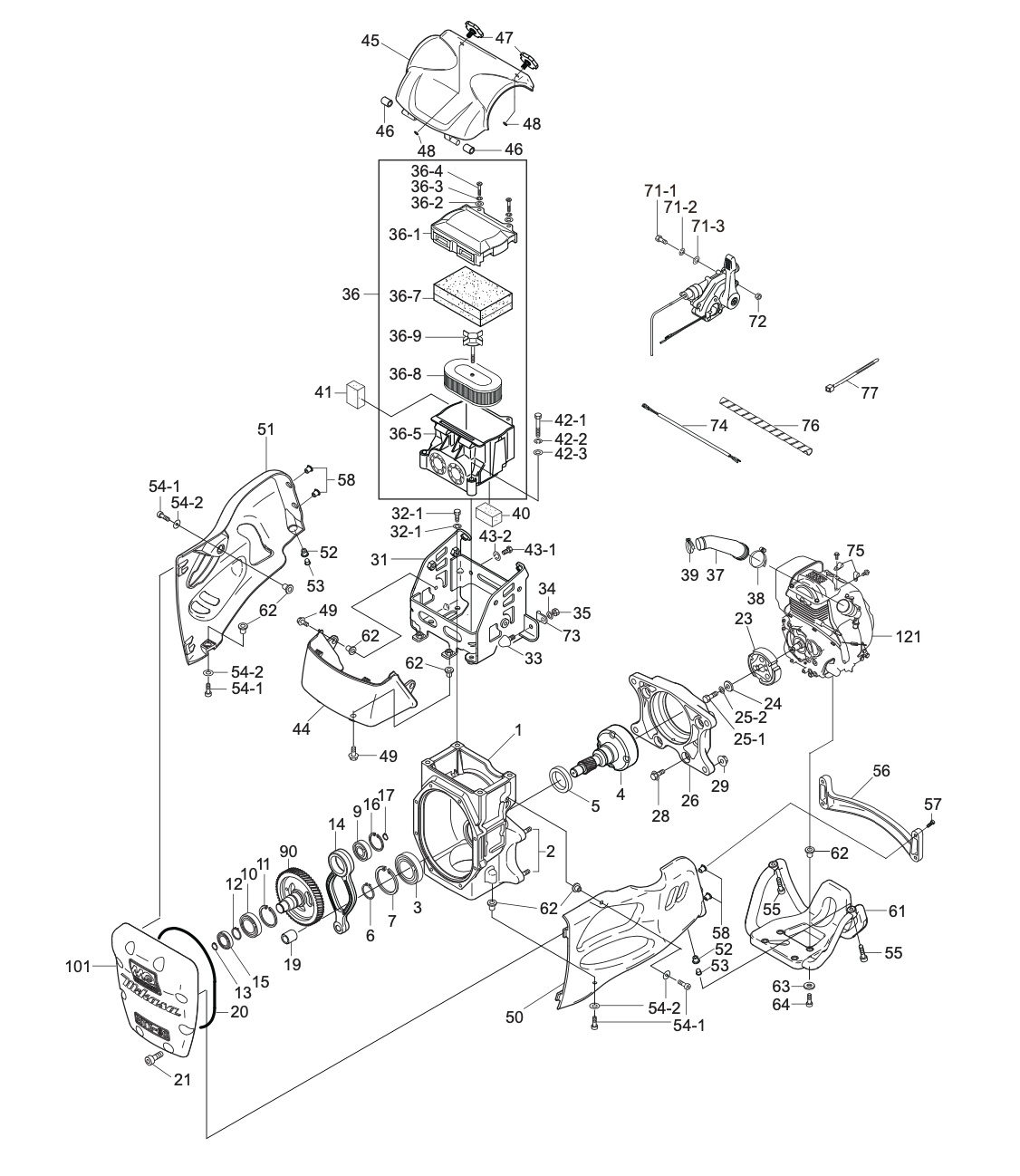

Crankcase And Engine 2 Assembly Parts-MTX60HD

Crankcase And Engine 2 Assembly Parts-MTX60HD

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
41
Multiquip, Mikasa, Side Sealing Form 1(366460150 For MTX60HD Rammers
$6.21
42-1
001220851 Bolt for MTX60HD Rammers by Multiquip Mikasa
$2.48
42-2
Multiquip, Mikasa, 030208200 WASHER LOCK M8 for MTX60HD Rammer
$8.66
43-2
Multiquip, Mikasa, 030208200 WASHER LOCK M8 for MTX60HD Rammer
$8.66
42-3
014208020 Bolt for MTX60HD Rammers by Multiquip Mikasa
$4.39
54-1
014208020 Bolt for MTX60HD Rammers by Multiquip Mikasa
$4.39
43-1
011008015 Bolt for MTX60HD Rammers by Multiquip Mikasa
$2.19
44
Multiquip, Mikasa, Bottom Cleaner Cover 60, 368217760 For MTX60HD Rammers
$39.90
45
368217750 Air Filter Cover for Multiquip Mikasa MTX60HD Jumping Jack Rammers
$50.00
46
Multiquip, Mikasa, Rubber Bush 10X16X17, 366460140 For MTX60HD Rammers
$2.53
47
Multiquip, Mikasa, Cleaner Cover Knob, 366345980 For MTX60HD Rammers
$11.84
48
050200060 O Ring for MTX60HD Rammers by Multiquip Mikasa
$2.19
49
009110040 Flange Bolt for MTX60HD Multiquip Mikasa Rammer
$3.29
50
Multiquip, Mikasa, Link Guard, 368119470 For MTX60HD Rammers
$39.90
51
368119480 Muffler Guard for Multiquip Mikasa MTX50HD Jumping Jack Rammer
$39.90
52
022910260 Well Nut For MTX60HD Rammer by Multiquip Mikasa
$14.85
53
Multiquip, Mikasa, Flange Collar 8, 366460170 For MTX60HD Rammers
$10.80
55
009110038 Socket Head Bolt for MTX60HD Rammer by Multiquip Mikasa
$3.29
64
009110038 Socket Head Bolt for MTX60HD Rammer by Multiquip Mikasa
$3.29
56
Multiquip, Mikasa, Cross Bar, 368217770 For MTX60HD Rammers
$35.86
57
Multiquip, Mikasa, Socket Head Bolt 6X25 Zn, 009110039 For MTX60HD Rammers
$2.19
58
Multiquip, Mikasa, Well Nut M6, 022910250 For MTX60HD Rammers
$13.70
61
Multiquip, Mikasa, Engine Guard, 368119490 For MTX60HD Rammers
$54.84
62
Multiquip, Mikasa, Collar/Guard, 366461050 For MTX60HD Rammers
$6.21
71-1
011206020 Screw for MTX60HD Multiquip Mikasa Rammer
$5.49
71-2
030206150 Washer for MTX60HD Rammer by Multiquip Mikasa
$3.29
71-3
031106100 Washer for MTX60HD Multiquip Mikasa Rammer
$2.19
72
020106050 Nut for MTX60HD Multiquip Mikasa Rammer
$2.19
73
Multiquip, Mikasa, Clip, 959006120 For MTX60HD Rammers
$2.81
74
Multiquip, Mikasa, Wire Harness, 368461280 For MTX60HD Rammers
$24.93
75
Multiquip, Mikasa, Clamp Compl, 2067550101 For MTX60HD Rammers
$10.20
76
Multiquip, Mikasa, Spiral Tube Kep6 / L=200, 959021814 For MTX60HD Rammers
$2.77
77
Multiquip, Mikasa, Clamp Tc-100 3 454010020 For MTX60HD Rammers
$2.10
90
Multiquip, Mikasa, Crank Gear, 368347270 For MTX60HD Rammers
$357.10
101
Multiquip, Mikasa, Front Cover, 368010010 For MTX60HD Rammers
$231.67
54-2
033910220 Washer, 8.4X15.5X1.6 for MT77FR Jumping Jack Rammer Multiquip Mikasa
$3.29
63
033910220 Washer, 8.4X15.5X1.6 for MT77FR Jumping Jack Rammer Multiquip Mikasa
$3.29
121
912210021 Engine Assembly GX100 RTKRBF for Multiquip Mikasa MTX50HD Jumping Jack Rammer
$853.59
