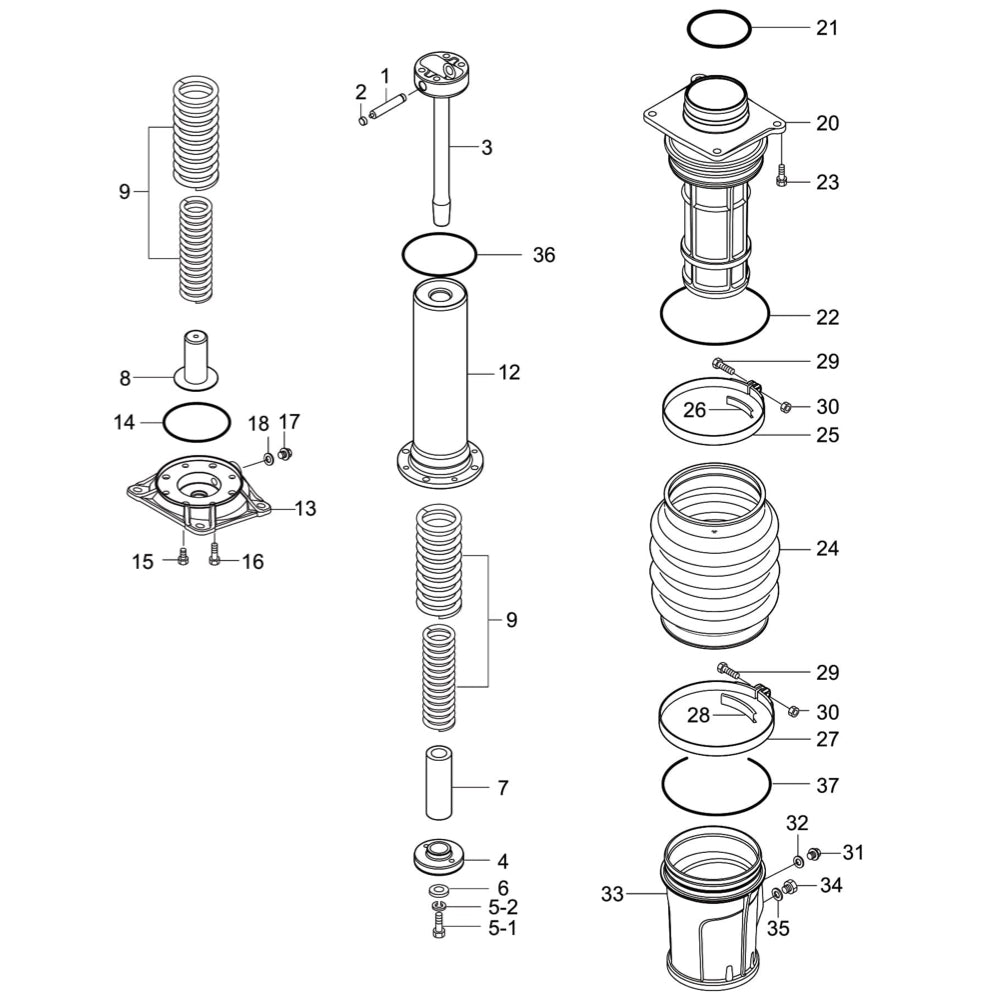

Guide Cylinder Assembly Parts-MTX60HD

Guide Cylinder Assembly Parts-MTX60HD

  • MTX60HD Guide Cylinder Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
Multiquip, Mikasa, MTX60HD Rammer, Piston Pin, 368461210 For MTX60HD Rammers
$31.94
2
Multiquip, Mikasa, MTX60HD Rammer, Piston Pin Plug, 368459920 For MTX60HD Rammers
$6.03
3
Multiquip, Mikasa, MTX60HD Rammer, Piston Rod, 368347290 For MTX60HD Rammers
$348.82
4
Multiquip, Mikasa, MTX60HD Rammer, Piston End, 368461160 For MTX60HD Rammers
$109.03
5-1
Multiquip, Mikasa, MTX60HD Rammer, Bolt 12X30 T, 012012030 For MTX60HD Rammers
$6.93
5-2
Multiquip, Mikasa, 030212300 WASHER LOCK M12 for MTX60HD Rammer
$1.99
6
Multiquip, Mikasa, MTX60HD Rammer, Washer 13306, 952404790 For MTX60HD Rammers
$13.60
7
Multiquip, Mikasa, MTX60HD Rammer, Lower Stopper, 368461260 For MTX60HD Rammers
$21.36
8
Multiquip, Mikasa, MTX60HD Rammer, Bottom Stopper, 368461200 For MTX60HD Rammers
$42.86
9
Multiquip, Mikasa, MTX60HD Rammer, Main Spring, 368461270 For MTX60HD Rammers
$82.85
12
Multiquip, Mikasa, MTX60HD Rammer, Spring Cylinder, 368347281 For MTX60HD Rammers
$831.81
13
Multiquip, Mikasa, MTX60HD Rammer, Foot Plate, 368217710 For MTX60HD Rammers
$215.93
14
Multiquip, Mikasa, MTX60HD Rammer, O-Ring G-80, 050100800 For MTX60HD Rammers
$7.69
15
Multiquip, Mikasa, MTX60HD Rammer, Socket Head Bolt 15X20 T, 014210020 For MTX60HD Rammers
$5.38
16
Multiquip, Mikasa, MTX60HD Rammer, Socket Head Bolt 8X25 T, 001520835 For MTX60HD Rammers
$5.49
17
Multiquip, Mikasa, MTX60HD Rammer, Plug 1/4X14 13L, 953405270 For MTX60HD Rammers
$30.64
31
Multiquip, Mikasa, MTX60HD Rammer, Plug 1/4X14 13L, 953405270 For MTX60HD Rammers
$30.64
18
Multiquip, Mikasa, MTX60HD Rammer, Packing 1/4, 953405260 For MTX60HD Rammers
$15.50
32
Multiquip, Mikasa, MTX60HD Rammer, Packing 1/4, 953405260 For MTX60HD Rammers
$15.50
20
Multiquip, Mikasa, MTX60HD Rammer, Cylinder Guide, 368217720 For MTX60HD Rammers
$373.72
21
Multiquip, Mikasa, MTX60HD Rammer, O-Ring G-85, 050100850 For MTX60HD Rammers
$11.75
22
Multiquip, Mikasa, MTX60HD Rammer, O-Ring G-115, 050101150 For MTX60HD Rammers
$13.46
23
Multiquip, Mikasa, MTX60HD Rammer, Bolt 10X35 H SW4, 012710035 For MTX60HD Rammers
$9.57
24
Bellows for Multiquip Mikasa MTX60 MTX60HD jumping jack rammer 368346180
$177.00
25
Multiquip, Mikasa, MTX60HD Rammer, Bellows Clamp 131D, 368347520 For MTX60HD Rammers
$25.70
26
Multiquip, Mikasa, MTX60HD Rammer, Band Guide 131D, 368461400 For MTX60HD Rammers
$7.50
27
Multiquip, Mikasa, MTX60HD Rammer, Bellows Clamp 149D, 368347530 For MTX60HD Rammers
$31.94
28
Multiquip, Mikasa, MTX60HD Rammer, Band Guide 149D, 368461410 For MTX60HD Rammers
$7.50
29
Multiquip, Mikasa, MTX60HD Rammer, Bolt 8X40 T, 011008040 For MTX60HD Rammers
$3.85
30
Multiquip, Mikasa, 020108060 NUT M8 for MTX60HD Rammer
$2.31
33
Multiquip, Mikasa, MTX60HD Rammer, Protection Sleeve, 368118970 For MTX60HD Rammers
$360.73
34
Multiquip, Mikasa, MTX60HD Rammer, Oil Gauge Assy, 366460300 For MTX60HD Rammers
$30.45
35
Multiquip, Mikasa, MTX60HD Rammer, Copper Packing 17X25.5X1, 953404670 For MTX60HD Rammers
$8.99
36
Multiquip, Mikasa, MTX60HD Rammer, O-Ring P-80, 050200800 For MTX60HD Rammers
$7.69
37
Multiquip, Mikasa, MTX60HD Rammer, O-Ring G-130, 050101300 For MTX60HD Rammers
$10.20
View full details
