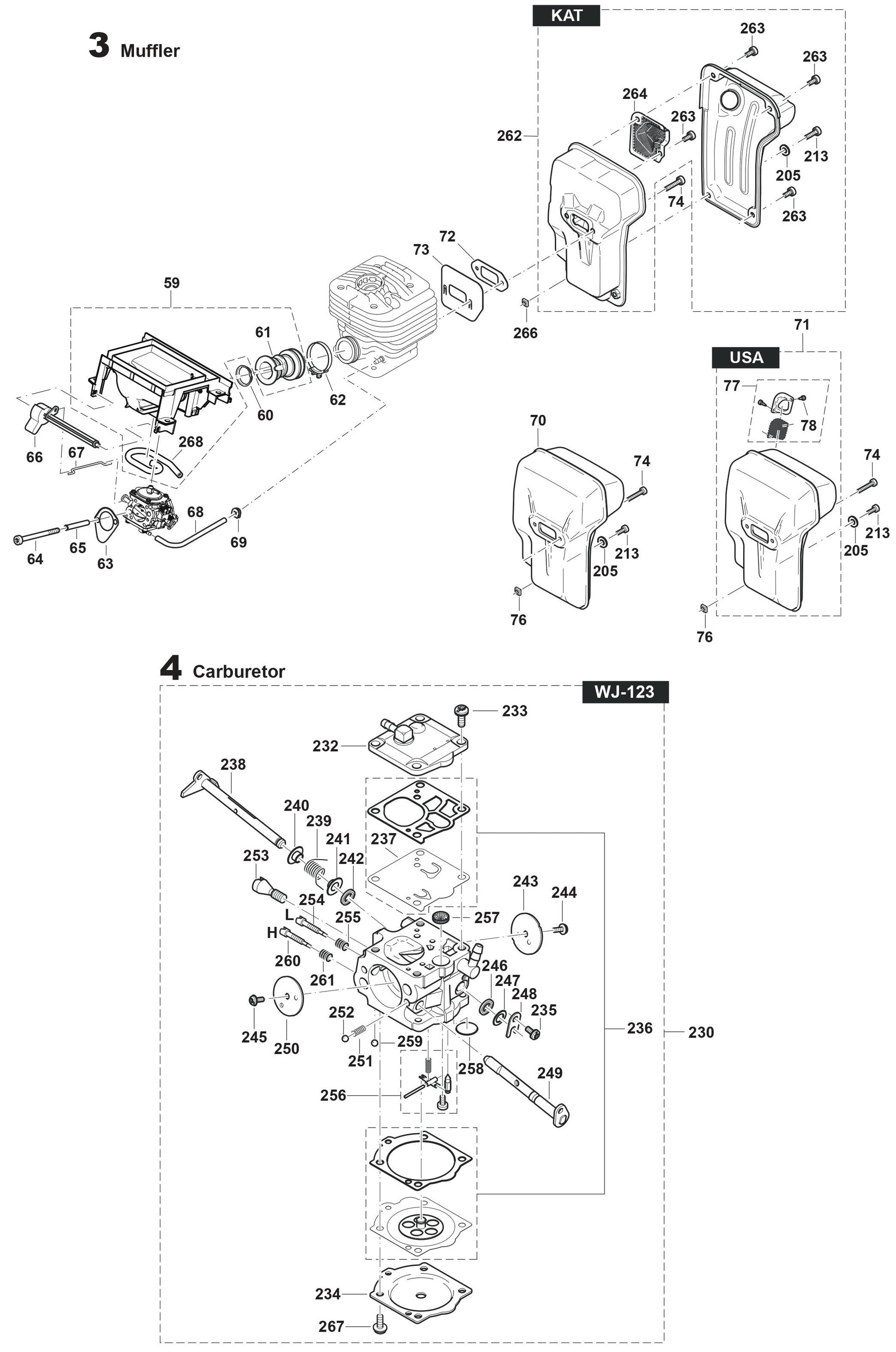

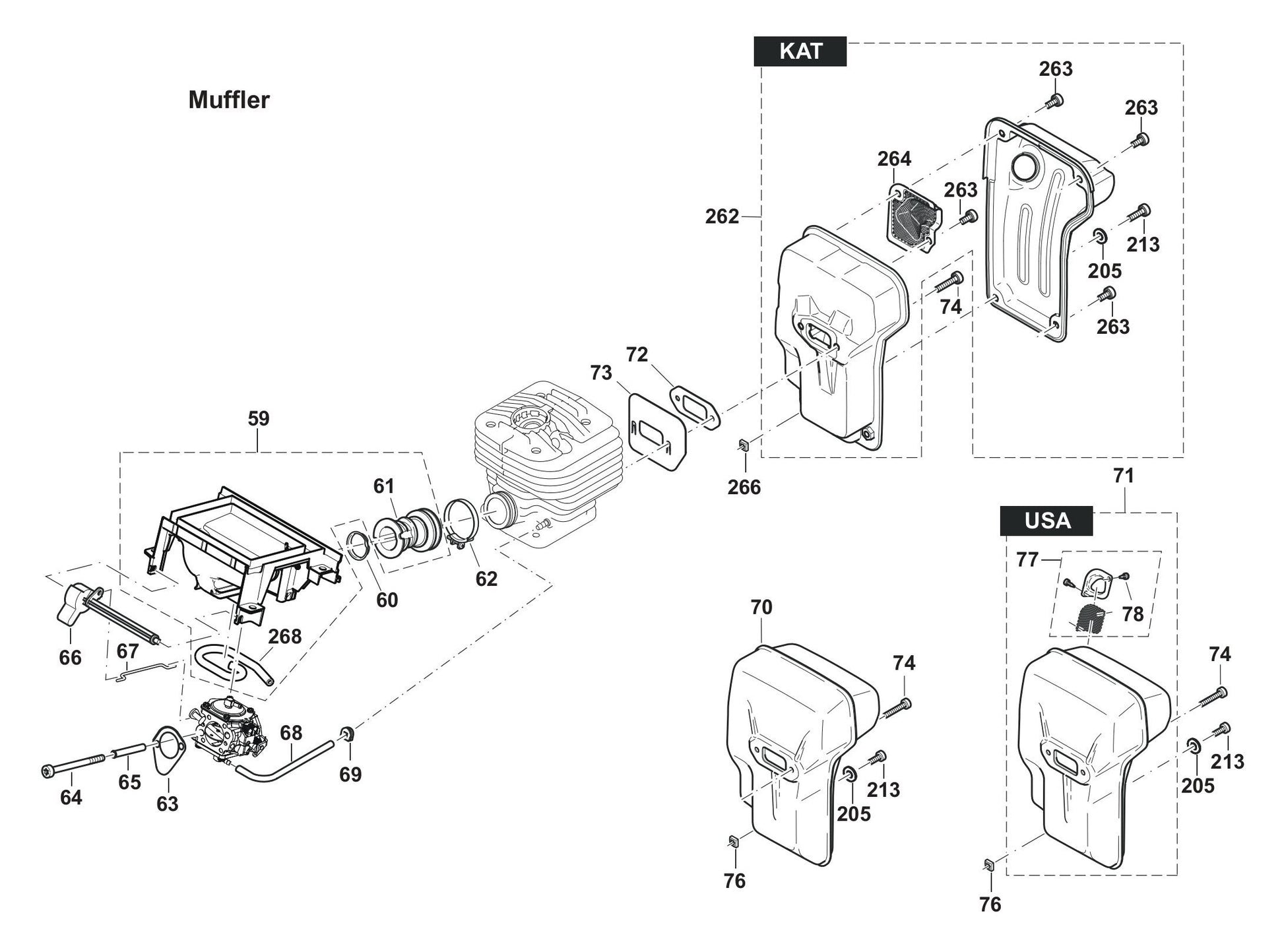

DPC7331 Muffler Assembly Parts

DPC7331 Muffler Assembly Parts

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
59
395171070 CONNECTING SLEEVE CPL., DPC7331 BY MAKITA
$37.95
60
024131032 INSERT(SUCTION HOSE),DCS9000 BY MAKITA
$11.32
61
394131101 SUCTION LINE, DPC7300 BY MAKITA
$20.36
62
965603050 HOSE CLIP, DPC6410 BY MAKITA
$10.88
63
965518120 GASKET, DPC6200 BY MAKITA
$5.99
64
908204555 SCREW M4X55, DCS6421 BY MAKITA
$3.99
65
970502050 INSULATING HOSE,DCS431 3.94" BY MAKITA
$7.76
66
394150030 CHOKE SHAFT, DPC7300 BY MAKITA
$9.98
67
394150042 CHOKE SHAFT, DPC6400 BY MAKITA
$5.99
68
965452380 FUEL LINE (130MM), DCS340 BY MAKITA
$11.60
69
965401016 RUBBER BUSH, DCS6800I BY MAKITA
$5.99
71
394174152 MUFFLER, DPC6410 BY MAKITA
$87.00
72
965531131 GASKET, DPC8112 BY MAKITA
$7.76
73
394174051 COVER PLATE, DPC7300 BY MAKITA
$7.76
74
908405205 SCREW M5X20, DPC6400 BY MAKITA
$3.99
76
038111060 SQUARE NUT M5, DCS6401 BY MAKITA
$5.99
77
394174142 SPARK ARRESTOR SCREEN,DPC8112 BY MAKITA
$19.14
78
915035120 TAPPING SCREW, M3.5X12, DPC7331 BY MAKITA
$3.99
205
928405000 WASHER, DCS340 BY MAKITA
$3.99
213
908005125 F.H. SCREW M5X12, DCS431 BY MAKITA
$3.99
268
395171022 TUBE L=155MM, DPC7331 BY MAKITA
$5.99
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
