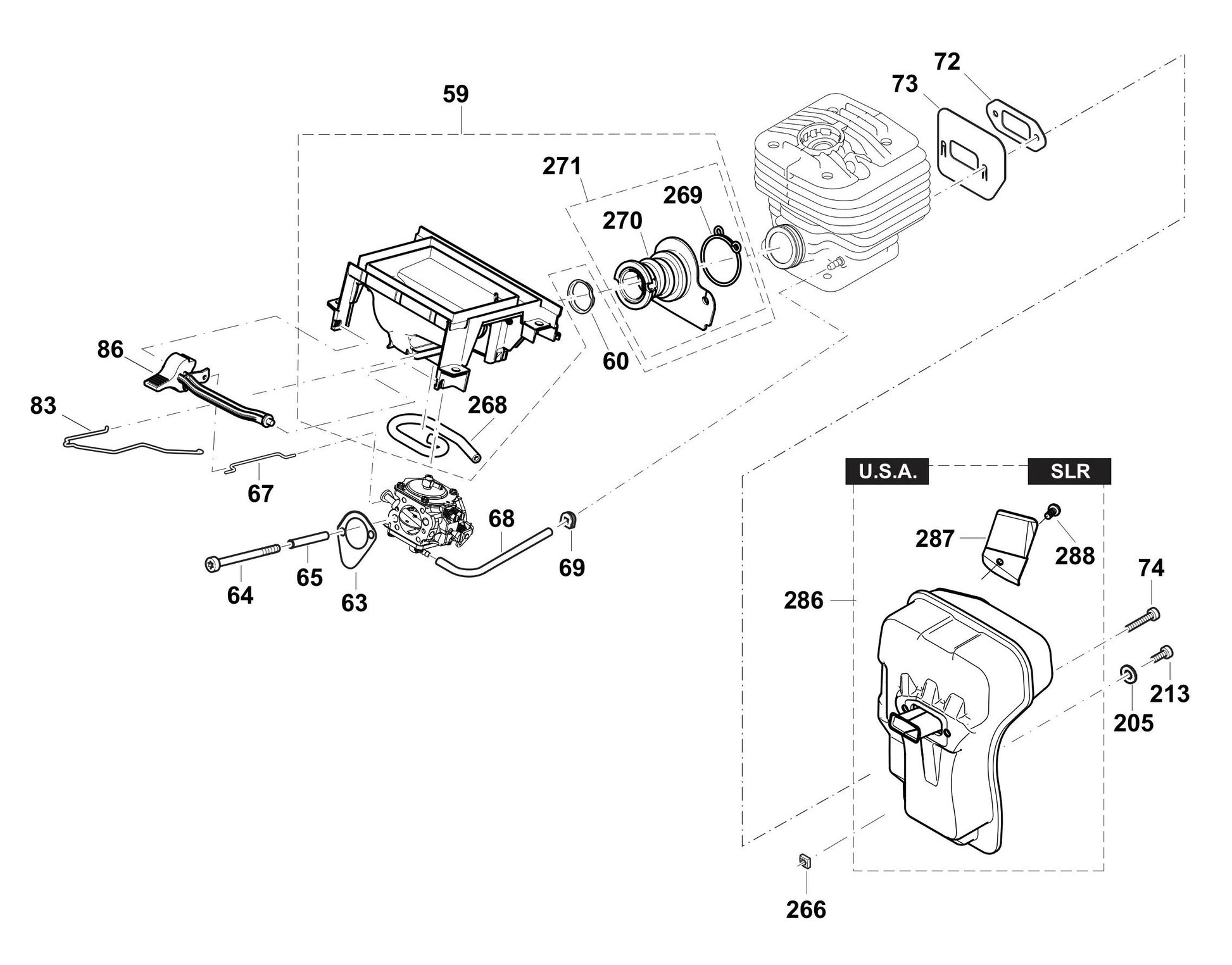

EK8100, PC-8216 Muffler, Choke Lever Assembly Parts

EK8100, PC-8216 Muffler, Choke Lever Assembly Parts

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
59
395171072 CONNECTING SLEEVE CPL., DPC7331 BY MAKITA
$61.74
60
024131032 INSERT(SUCTION HOSE),DCS9000 BY MAKITA
$11.32
63
965518120 GASKET, DPC6200 BY MAKITA
$5.99
64
908204555 SCREW M4X55, DCS6421 BY MAKITA
$3.99
65
970502050 INSULATING HOSE,DCS431 3.94" BY MAKITA
$7.76
67
394150042 CHOKE SHAFT, DPC6400 BY MAKITA
$5.99
68
965452382 TUBE, EK7301 BY MAKITA
$14.01
69
965401016 RUBBER BUSH, DCS6800I BY MAKITA
$5.99
72
395174120 GASKET, EK7301 BY MAKITA
$5.99
73
395174110 COOLING PLATE, DPC7331 BY MAKITA
$7.76
74
908405205 SCREW M5X20, DPC6400 BY MAKITA
$3.99
83
395117011 THROTTLE LINKAGE, EK7301 BY MAKITA
$5.99
83
395117010 THROTTLE LINKAGE, DPC7331 BY MAKITA
$5.99
86
957395001 CHOKE AXLE/CONTACT SPRING SET, EK7301 BY MAKITA
$5.99
86
395150011 CHOKE SHAFT, DPC7331 BY MAKITA
$3.99
205
928405000 WASHER, DCS340 BY MAKITA
$3.99
213
908005125 F.H. SCREW M5X12, DCS431 BY MAKITA
$3.99
266
038111060 SQUARE NUT M5, DCS6401 BY MAKITA
$5.99
268
395171024 TUBE, EK7301 BY MAKITA
$5.99
269
038131070 HOSE CLIP, EK7301 BY MAKITA
$5.99
270
394131200 SUCTION HOSE, EK7301 BY MAKITA
$18.40
271
394131210 SUCTION HOSE, DPC7331 BY MAKITA
$23.99
286
395174200 MUFFLER, EK7301 BY MAKITA
$63.81
287
395174140 SPARK ARRESTER SCREEN, EK7301 BY MAKITA
$5.99
288
913242100 ALLEN SCREW, EK7301 BY MAKITA
$3.99
View full details

Frequently asked questions

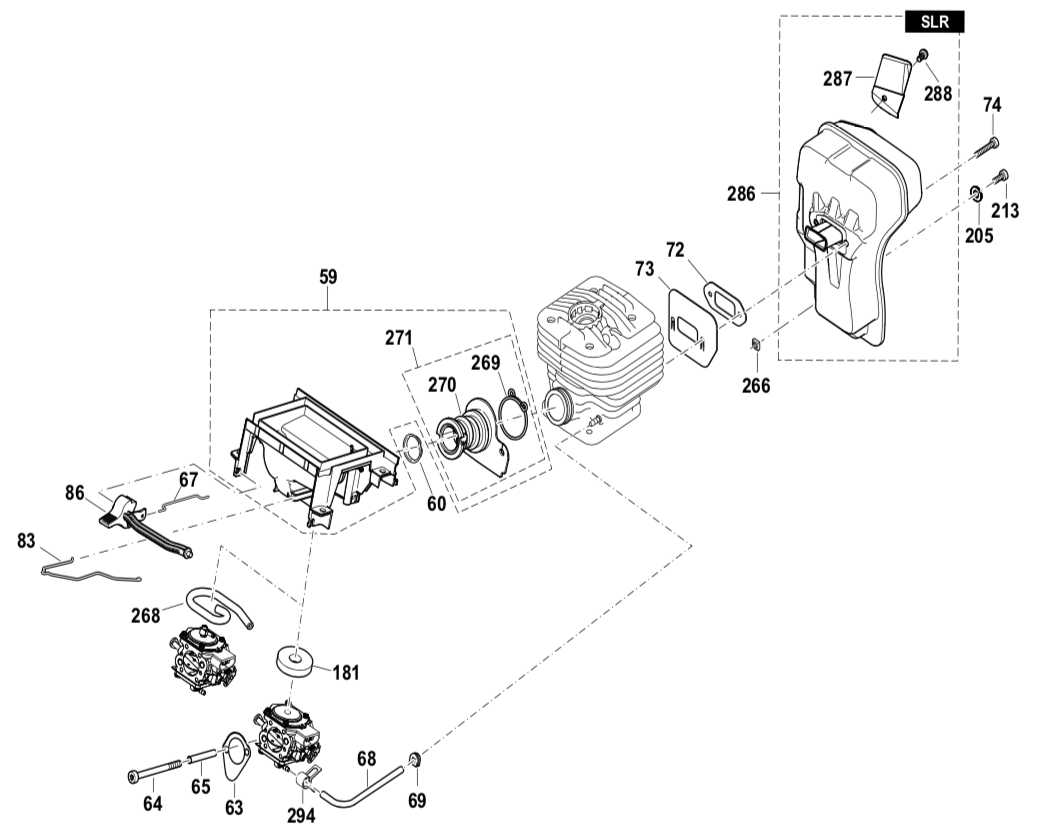

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
