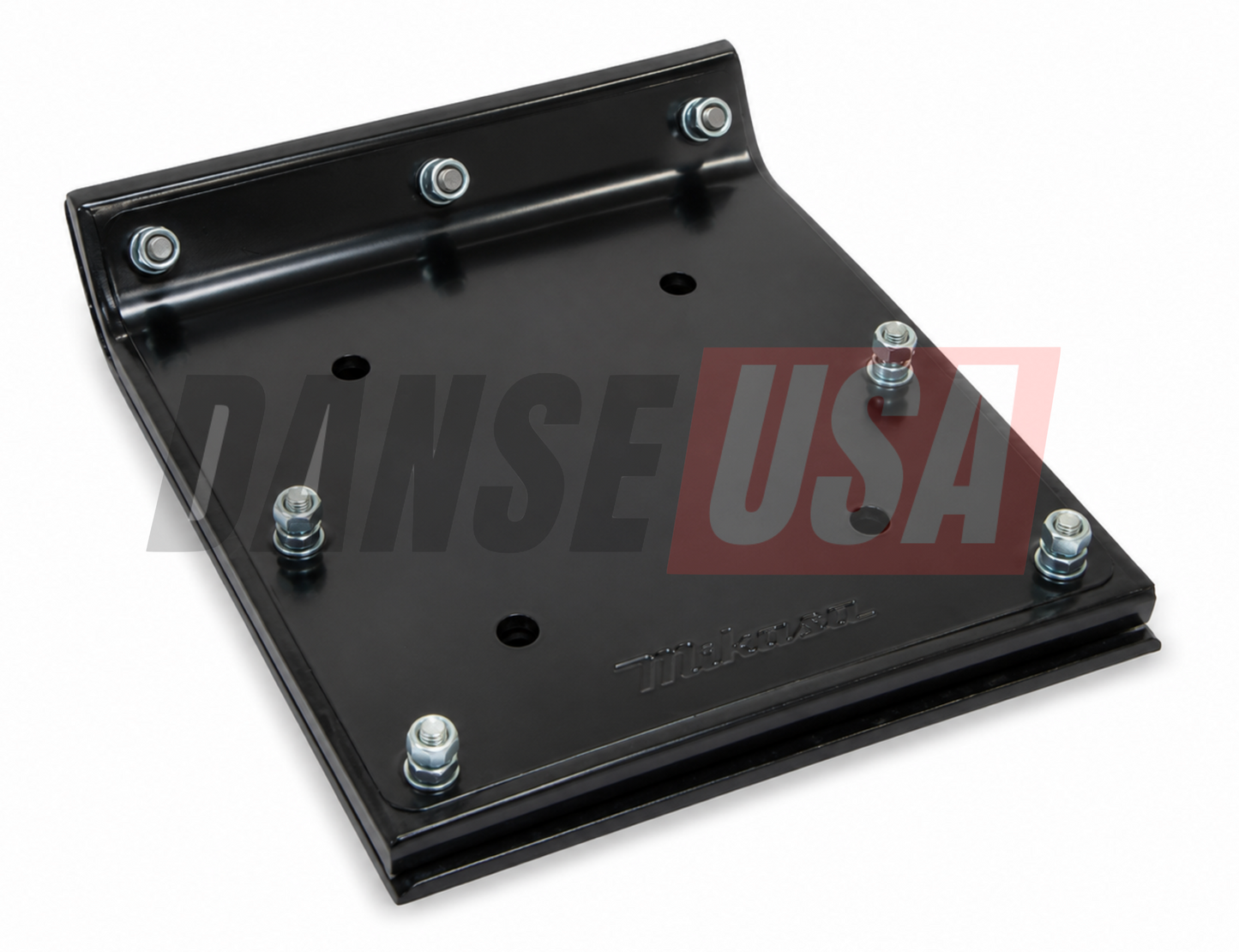

352108220 8511S 11" Wood Shoe Kit Fits MTX70HD Tamping Rammer (OEM) by Multiquip Mikasa

352108220 8511S 11" Wood Shoe Kit Fits MTX70HD Tamping Rammer (OEM) by Multiquip Mikasa

Regular price $399.00
Regular price Sale price $399.00
Sale Sold out
Skip to product information
1 of 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
MultiQuip

352108220 8511S 11" Wood Shoe Kit Fits MTX70HD Tamping Rammer (OEM) by Multiquip Mikasa

352108220 8511S 11" Wood Shoe Kit Fits MTX70HD Tamping Rammer (OEM) by Multiquip Mikasa

Danse #: 8511S
Mfr #: 352108220
Regular price $399.00
Regular price Sale price $399.00
Sale Sold out
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
Our Promise To You
🛠️
OEM Certified Parts
🚚
Fast Delivery
🧑‍🔧️
Expert Support
🔁
Easy Returns
🛡️
Warranty Included

Description

The MTX70HD is Multiquip's most popular middleweight rammer — Honda GX100 power, 3,350 lbf of impact force, an 11.2-inch shoe, and the sweet-spot weight class for utility-trench backfill and confined-area cohesive soil compaction. Operators who run an MTX70HD log more shoe contacts per shift than almost any other rammer in the line, and the laminated wood pad is the consumable that pays the price.

OEM part 8511S is the Multiquip Mikasa 11-inch wood shoe kit engineered for direct fit on the MTX70HD foot mount. The kit replaces the entire ground-contact assembly in a single part number, with all mounting hardware included.

What is the MTX70HD 11" wood shoe kit?

The 8511S is a complete bottom-of-foot replacement assembly comprising:

  • Laminated wood shoe pad — multi-ply construction engineered for shock absorption and progressive wear characteristics
  • Tempered steel base plate — the hard interface between the wood pad and the rammer foot housing
  • Square-neck mounting bolts — for through-bolting the shoe to the foot housing
  • Nylon lock nuts — vibration-resistant retention
  • Lock washers — additional anti-loosening insurance under impact load

Per the MTX70HD Operation and Parts Manual, the shoe is described as "laminated wood with tempered steel plate for superior shock absorption." The 8511S supersedes legacy Multiquip part numbers 366910020 and 362910130 — if you have a pre-supersession parts list, all three numbers reference the same physical kit.

MTX70HD Specifications & Fitment

Specification Value
OEM Part Number 8511S
Legacy Part Numbers 366910020, 362910130
Shoe Width 11 in (~285 mm)
MTX70HD Shoe Mounting Footprint 11.2 × 13.4 in (285 × 340 mm)
MTX70HD Engine Honda GX100 / GX100UKRBF
MTX70HD Impact Force 3,350 lbf (1,520 kgf)
MTX70HD Blows Per Minute Up to 690
MTX70HD Operating Weight ~168 lbs
Hardware Included Yes (bolts, washers, nuts)


Installation Pointers Specific to MTX70HD

  1. Shut down and let the foot housing cool before disassembly — the muffler heat soaks into the foot housing during operation.
  2. Capture the bolt pattern with a phone photo before removing the worn shoe so you don't have to derive the bolt sequence from memory.
  3. Torque the new hardware in a cross pattern — same principle as a wheel rim. Sequential torquing creates uneven preload that loosens within the first hour of operation.
  4. Inspect the foot housing mating surface — if the wood pad failure was accompanied by impact damage to the housing itself, you may need foot cover (368347460) or further inspection of the upper foot assembly before installation.

Frequently Asked Questions — MTX70HD Wood Shoe

Q: Does the 8511S fit my MTX70HD specifically, or only older MTX70 units? The 8511S is the current Multiquip OEM part number for the 11-inch wood shoe kit and fits the MTX70HD with the standard 11.2-inch shoe footprint. Older MTX70 (non-HD) units use the same physical kit; Multiquip transitioned legacy part numbers 366910020 and 362910130 into the consolidated 8511S SKU.

Q: How often should I replace the wood shoe on an MTX70HD? Replacement intervals vary by application. Hard-surface compaction (compacted gravel, asphalt patch work) wears the shoe faster than soft-soil work. Most utility crews working five days per week on mixed substrates replace the shoe every 6 to 12 months. Visible cracking, separation between wood and steel layers, or mushroomed bolt heads are the field signals to replace immediately.

Q: Does the 8511S kit come with the bolts and nuts I need? Yes. The OEM 8511S kit ships with all mounting hardware — square-neck bolts, lock washers, and nylon lock nuts — sized for direct installation on the MTX70HD foot housing. No separate hardware purchase required.

Q: What's the difference between the 8511S and aftermarket 11-inch shoes? The 8511S is the genuine Multiquip OEM part, manufactured to factory tolerances and material specifications and compatible with Multiquip's warranty terms. Aftermarket shoes vary in wood lamination quality, steel plate temper, and bolt-hole alignment. For commercial-fleet operators where downtime cost outweighs unit cost, the OEM part is the lower-total-cost option over the rammer's life.

Important Ordering Notes

  • Make sure the part numbers are correct, certain parts are serial number specific. Verify your unit's serial plate matches the MTX70HD designation before ordering.
  • Contact us for parts identification and confirmation of part numbers. Email [email protected] with photos of your foot assembly and serial plate for verification.
  • Certain items may be drop shipped direct from the manufacturer. Your order may arrive in separate packages with individual tracking numbers.
