Multiquip Mikasa KITSHOEMTX50 / 362910150 — Genuine OEM 10.4" Wood Shoe Kit for MTX50HD & MTX60HD Tamping Rammers

Multiquip Mikasa KITSHOEMTX50 / 362910150

The wood shoe is the only consumable wear part on a Multiquip MTX50HD or MTX60HD tamping rammer. It's the single point of contact between the rammer and the substrate, and it absorbs every one of the 644 to 695 impacts the foot delivers each minute at full RPM. Across an 8-hour workday, that's roughly 310,000 to 334,000 ground strikes absorbed by a multi-ply laminated wood pad bolted to a tempered steel base plate.

Eventually that pad cracks, splits, separates from the steel plate, and walks the bolts loose. A worn shoe doesn't fail in isolation — it transmits asymmetric impact loads upward into the bellows, the main spring, and the spring cylinder above. Operators who run a degraded shoe past its replacement window typically end up replacing two or three additional components within six months. Replacing the shoe on schedule protects the rest of the rammer.

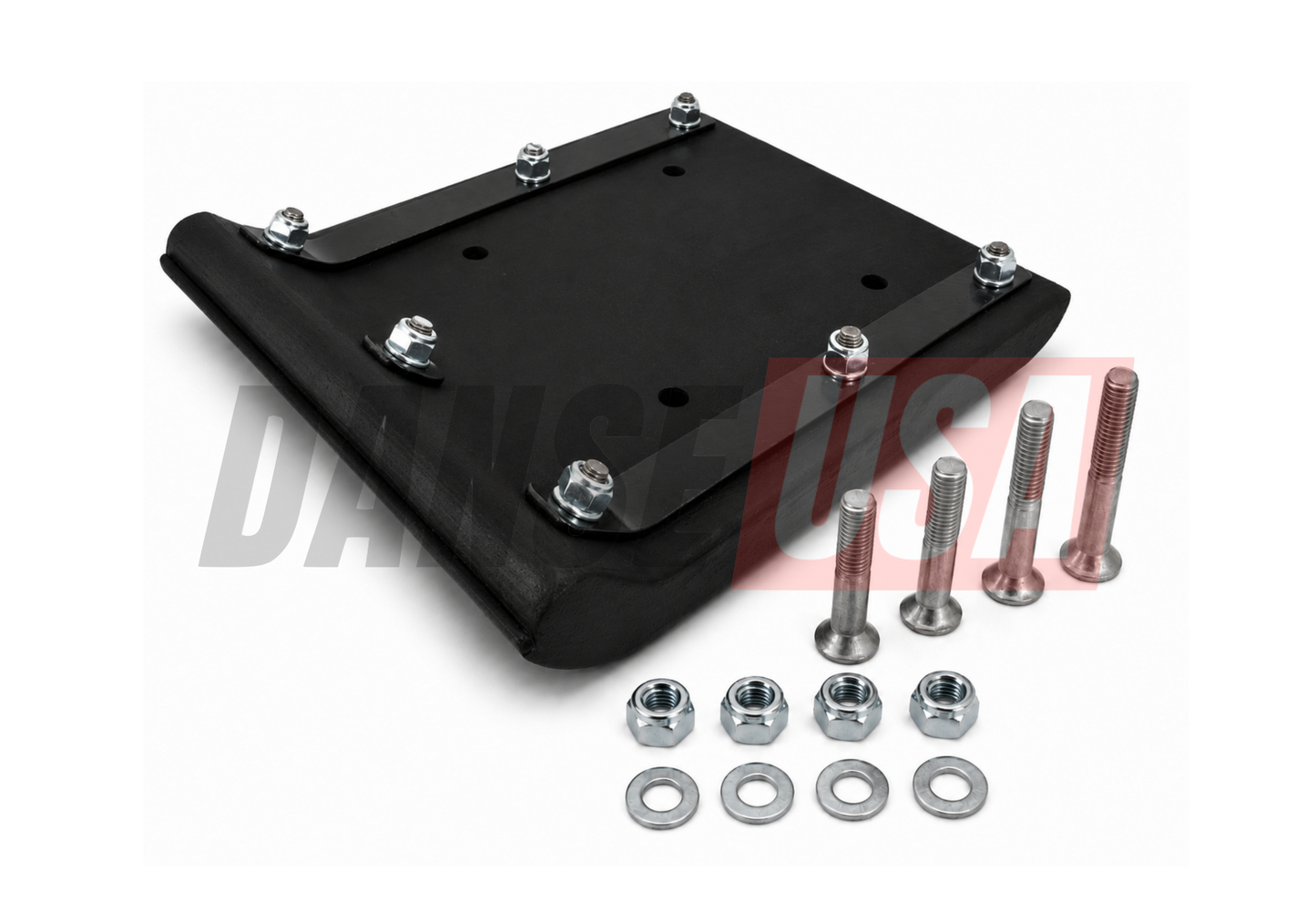

Multiquip part KITSHOEMTX50 (which supersedes the legacy 362910150 part number) is the genuine OEM 10.4-inch wood shoe kit that fits both the MTX50HD and the MTX60HD foot mount in factory-spec configuration. The kit ships complete with the wood pad, the tempered steel base plate, and all mounting hardware.

DanseUSA has been an authorized Multiquip parts dealer since 1981. Every KITSHOEMTX50 ships in original Multiquip packaging through authorized supply channels.

What Ships in the KITSHOEMTX50 Kit

Per the Multiquip MTX-Series Operation Manual, the foot construction is described as "laminated wood with tempered steel plate for superior shock absorption." That two-layer engineering is what protects the bellows and spring components above from sharp impulse loading — the wood absorbs progressively, the steel transmits the structural load, and the rest of the rammer sees a managed impact profile rather than a brutal direct hit.

The seven 10×55 mm square-neck bolts (with their matching M10 lock washers and M10 nylon lock nuts) are the items marked with the "#" designator in the MTX60HD Parts Manual Rev. #11 — they're the wood-pad-to-steel-plate fasteners that ship inside the KITSHOEMTX50 kit.

Why One Shoe Kit Fits Both Rammers

Multiquip engineers the MTX50HD and MTX60HD around the same 10.4-inch shoe footprint — the same bolt pattern, the same hardware grade, the same base plate geometry. The two rammers differ in operating weight, impact force, and intended duty cycle, but the foot interface where the shoe bolts on is shared.

For fleet managers running mixed MTX50HD and MTX60HD inventory, this means one shoe SKU covers both machines. No separate parts orders, no risk of grabbing the wrong part from the shop shelf, no inventory complexity.

MTX50HD vs. MTX60HD — Side-by-Side

The shoe replacement interval differs slightly between the two rammers because the duty cycles differ:

Why the MTX50HD doesn't always last longer despite lower impact force: Lightweight rammers see more pivoting, more confined-space work, and more transport between job sites. Each of those introduces asymmetric loading on the shoe that a heavier, less-frequently-moved unit doesn't experience.

When to Replace the Shoe

The MTX50HD and MTX60HD Operation Manuals both list shoe inspection under daily preventive maintenance. The shoe is treated as a scheduled-replacement consumable, not a run-to-failure part.

Field signals indicating immediate replacement:

• Visible cracks running across the wood face, especially radiating from bolt holes
• Lamination separation — the multi-ply wood begins coming apart at the edges
• Mushroomed or recessed bolt heads from impact deformation
• Asphalt, gravel, or aggregate embedded in the wood causing imbalance
• Uneven wear pattern across the face indicating asymmetric impact distribution
• Audible change in the rammer's compaction note — a fresh shoe sounds tight; a worn one sounds dull

Running a worn shoe past these signals risks foot housing damage, premature bellows failure, and spring cylinder wear — all components that cost significantly more than the shoe kit itself.

Universal Installation Notes

The KITSHOEMTX50 installs on both rammers using the same procedure:

1. Shut down and let the foot housing cool before disassembly. Muffler heat soaks adjacent components during operation.
2. Photograph the existing bolt orientation before removing the worn shoe. Square-neck bolts seat in specific orientations on the steel plate, and reproducing the pattern from memory wastes bench time.
3. Inspect the foot housing mating surface for impact damage from the failed shoe. If you see scoring or hairline cracks in the housing itself, address that before installing the new shoe to prevent recurring premature failure.
4. Use the OEM hardware that ships with the KITSHOEMTX50 kit. The square-neck bolts are graded for the impact regime; substituting hardware-store bolts is the most common cause of premature loosening.
5. Torque the new hardware in a cross-pattern sequence, not sequentially around the perimeter. Cross-pattern torquing creates even preload distribution.
6. Re-torque after the first 30 minutes of run time, again at 4 hours, then once more at the 24-hour mark. Bolt preload migrates during the first day of operation under impact loading; after that, the joint is settled.

Part Identification & Cross-Reference

Frequently Asked Questions

Q: What's the difference between KITSHOEMTX50 and 362910150? KITSHOEMTX50 is the current Multiquip part number for this 10.4-inch wood shoe kit. 362910150 is the legacy / superseded part number. Both reference the same physical product. If your service records cite 362910150, order KITSHOEMTX50 — it's the direct factory replacement.

Q: Will KITSHOEMTX50 fit my MTX50HD? Yes. The 10.4-inch shoe footprint is identical between the MTX50HD and MTX60HD. The same KITSHOEMTX50 kit fits both machines.

Q: Will KITSHOEMTX50 fit my MTX60HD? Yes. The MTX60HD ships from the factory with this same 10.4-inch shoe assembly. KITSHOEMTX50 is the genuine OEM replacement.

Q: Does the kit come with bolts, washers, and nuts? Yes. The OEM KITSHOEMTX50 ships with all mounting hardware required for installation — seven 10×55 mm square-neck bolts, seven M10 lock washers, and seven M10 nylon lock nuts. No separate hardware purchase is needed.

Q: What is "Foot Assembly 265W M4B"? That's Multiquip's internal designation for this assembly. The "265W" refers to the shoe width in millimeters (265 mm = 10.4 inches); "M4B" is the model-version designation. It's the same product as KITSHOEMTX50 / 362910150.

Q: How is the wood shoe constructed? Per Multiquip's Operation Manual, the foot is "laminated wood with tempered steel plate for superior shock absorption." The wood pad is a multi-ply laminate engineered to absorb impact progressively. The steel plate provides the structural interface to the rammer foot housing.

Q: How often should I replace the wood shoe? For typical commercial use: MTX50HD every 8–14 months; MTX60HD every 6–12 months. Inspect daily and replace at the first sign of cracking, lamination separation, or bolt-head deformation.

Q: Will replacing the shoe void my Multiquip warranty? No — replacing wear components like the shoe is normal preventive maintenance and does not affect warranty terms. Using the genuine OEM KITSHOEMTX50 keeps the rammer in factory-spec configuration.

Q: Will an aftermarket 10.4-inch shoe work on my MTX50HD or MTX60HD? Aftermarket shoes are sold by various suppliers, but tolerance accuracy on bolt-hole alignment, wood lamination grade, and steel plate temper varies significantly. The genuine OEM KITSHOEMTX50 meets factory tolerances and is compatible with Multiquip's warranty terms. For commercial operators where downtime cost outweighs unit cost, OEM is typically the lower-total-cost choice over the rammer's service life.

Q: Does KITSHOEMTX50 fit any other Multiquip rammers besides MTX50HD and MTX60HD? The 10.4-inch shoe is shared across additional Multiquip models including MTX60HF, MT-E55, MT54F, MT55F, MT60, and DR-50. If you need confirmation for a different model, contact us with your serial plate photo.

Q: How is the KITSHOEMTX50 shipped? DanseUSA ships in original Multiquip packaging via standard ground service. Some MTX-Series components may ship from Multiquip's distribution warehouse direct — when that happens, your order may arrive in separate packages with individual tracking numbers.

Important Ordering Notes

• Make sure the part numbers are correct, certain parts are serial number specific. The MTX50HD and MTX60HD have been through multiple production revisions — verify your machine's serial plate matches the model designation before ordering.
• Contact us for parts identification and confirmation of part numbers. Email [email protected] with photos of your engine label, serial plate, and existing shoe assembly. Same-business-day verification on all parts inquiries.
• Certain items may be drop shipped direct from the manufacturer. Your order may arrive in separate packages with individual tracking numbers.

Why Order from DanseUSA

DanseUSA has been an authorized Multiquip parts dealer since 1981. Every KITSHOEMTX50 ships in original Multiquip packaging through authorized supply channels — same OEM part the local Multiquip-authorized service center installs, eligible for any open Multiquip warranty on your rammer.

Most orders placed before noon ET ship the same business day. Questions on fitment, serial-number breaks, or fleet pricing for multi-unit orders? Email [email protected] with photos of your unit's engine label and existing shoe assembly. Same-business-day response.
