Crankcase Cover Assembly Parts-MVC64VH, MVC64VHW HONDA GX120U1SM12 Engine

Crankcase Cover Assembly Parts-MVC64VH, MVC64VHW HONDA GX120U1SM12 Engine

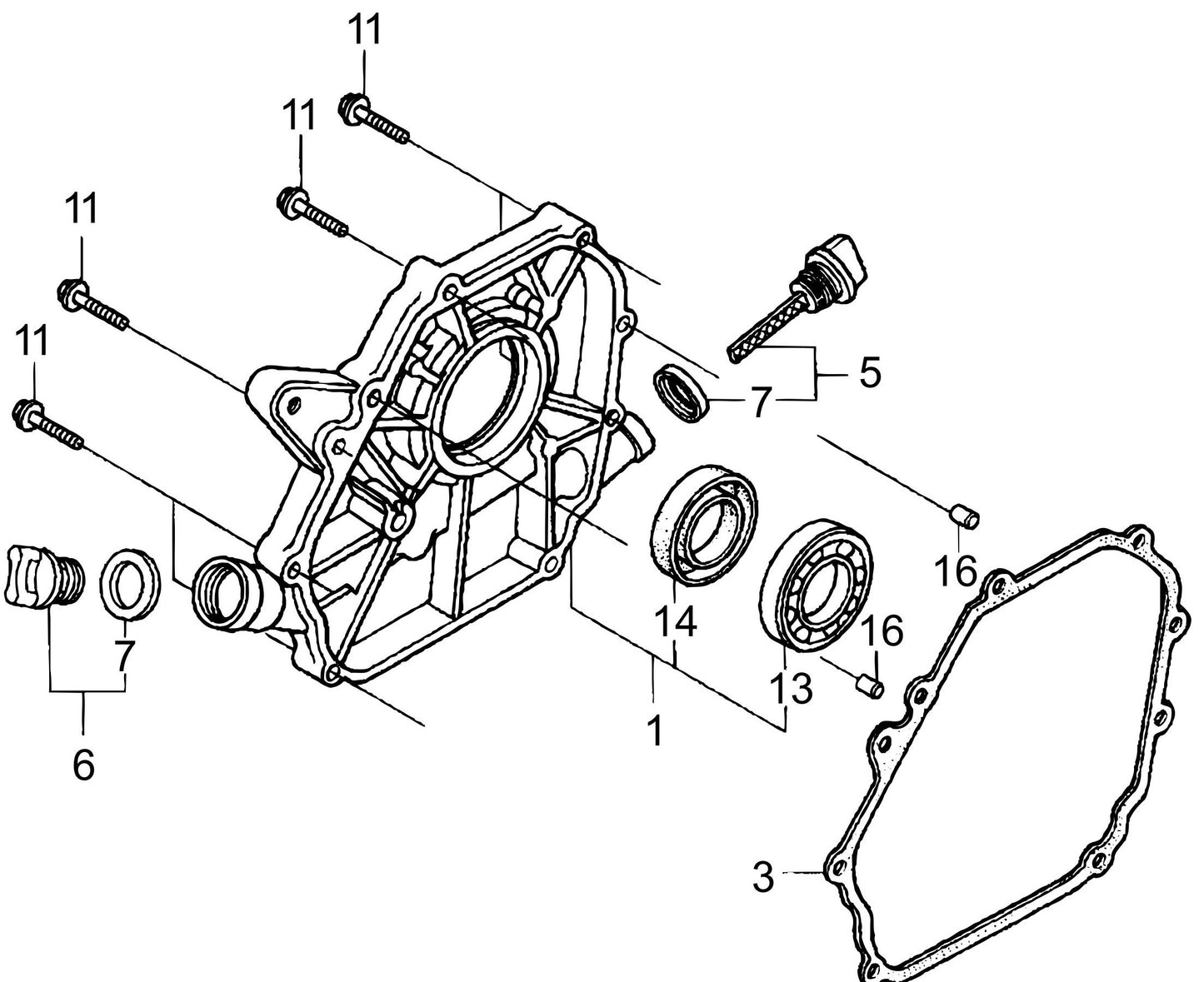

  • MVC64-VH/VHW Honda GX120U1SM12 Engine Crankcase Cover Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
11300ZE0634 Cover Assy., Crankcase for Multiquip Mikasa MVC64VH MVC64VHW Plate Tamper Compactor
Call for Price call for price call for price
3
11381ZH7800 Gasket, Crankcase for Multiquip Mikasa MVB85H Plate Tamper Compactor
$15.48
5
15600ZE1003 Cap Assy., Oil Filler for Multiquip Mikasa MVHR60HW Plate Tamper Compactor
$9.40
6
15600ZG4003 Cap Assembly, Oil Filler for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$11.29
7
15625ZE1003 Packing, Oil Filler Cap for Multiquip Mikasa MVHR60HW Plate Tamper Compactor
$5.99
11
90015883000 Bolt, Flange (6X28) for GA36HZ GA36H GA36HA Portable Generator with Honda Gasoline Engine by MQ Multiquip
$27.29
13
91001878003 Bearing, Radial 62/22 for Multiquip Mikasa MVC64VH MVC64VHW Plate Tamper Compactor
$53.87
14
91203ZE0013 Oil Seal 22X41X6 for Multiquip Mikasa MVC64VH MVC64VHW Plate Tamper Compactor
$27.29
16
9430108140 Dowel Pin 8X14 for Multiquip Mikasa MVC64VH MVC64VHW Plate Tamper Compactor
$27.29
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
