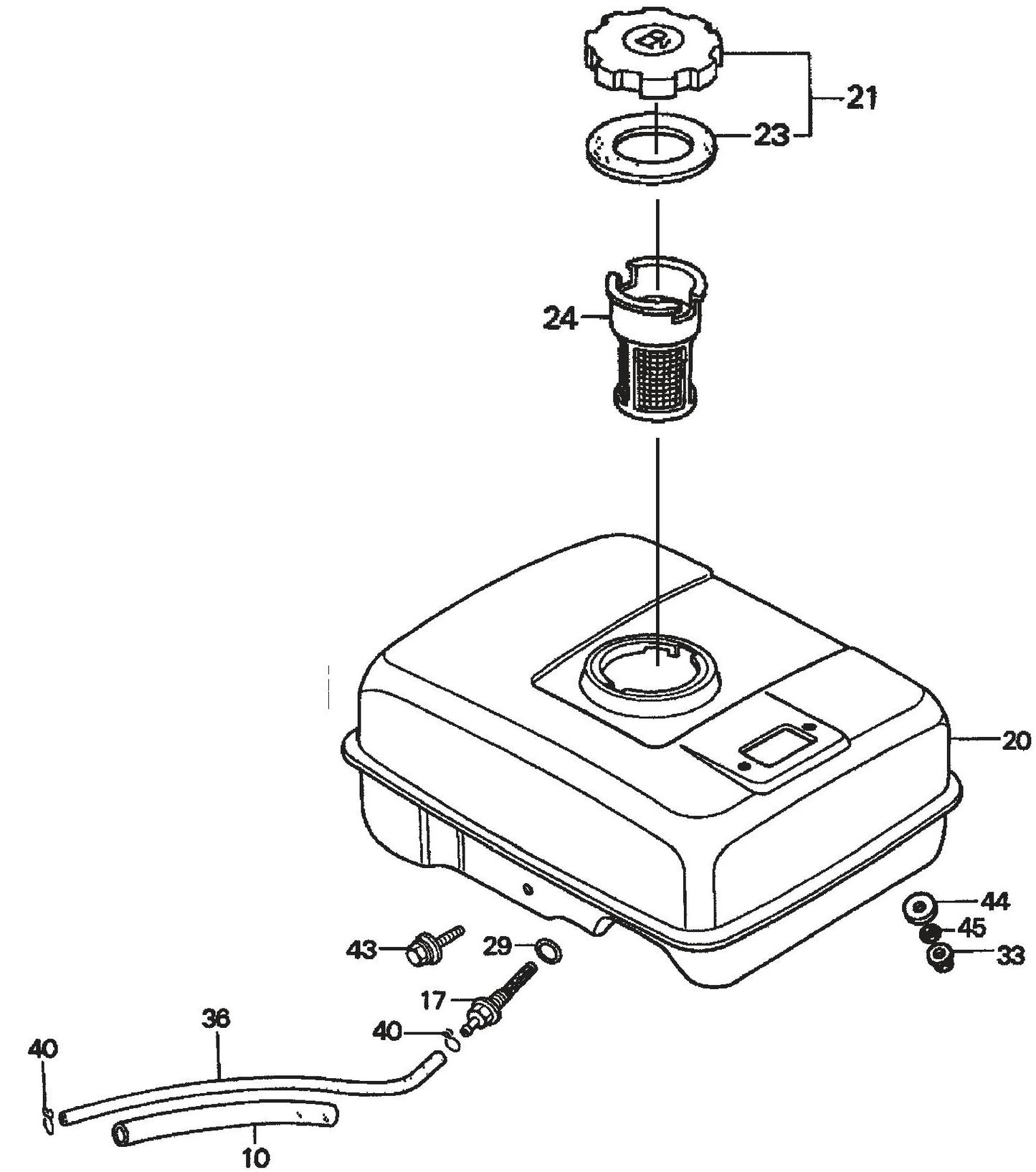

MVC70H/HW Honda GX160K1QMX2 Engine Fuel Tank Assembly Parts

MVC70H/HW Honda GX160K1QMX2 Engine Fuel Tank Assembly Parts

  • MVC70H/HW Honda GX160K1QMX2 Engine Fuel Tank Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
10
16854ZH8000 Rubber, Support (107Mm) for Multiquip Mikasa MVB150H Plate Tamper / Compactor
$9.44
17
16955ZE1000 Joint, Fuel Tank for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$13.74
20
17510ZE1020ZF Fuel Tank Comp. for MVH120VGH Reversible Plate Compactor by Multiquip Mikasa
$217.66
21
17620ZH7023 Cap, Fuel Filler for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$2.19
23
17631ZH7003 Gasket, Fuel Filler Cap for Multiquip Mikasa MVHR60HW Plate Tamper Compactor
$6.59
24
17672ZE2W01 Filter, Fuel for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$21.31
29
91353671003 O- Ring 13.5X1.5 for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$27.29
33
9405006000 Flange Bolt 6Mm for Multiquip Mikasa MVC77 Plate Tamper Compactor
$2.99
36
950014500360M Bulk Hose, Fuel (4.5 X 3000) for Multiquip Mikasa MVC70H MVC70HW Plate Tamper / Compactor
$80.11
40
9500202080 Clamp, Tube (D8) for Multiquip Mikasa MVC82VH Plate Tamper Compactor
$27.29
43
957010602500 Bolt, Flange (6 X 25) for Multiquip Mikasa MVC70H MVC70HW Plate Tamper / Compactor
$27.29
44
90404680000 Washer for Multiquip Mikasa MVC70H MVC70HW Plate Tamper / Compactor
$27.29
45
91319ME5003 O-Ring for Multiquip Mikasa MVC70H MVC70HW Plate Tamper / Compactor
$27.29
