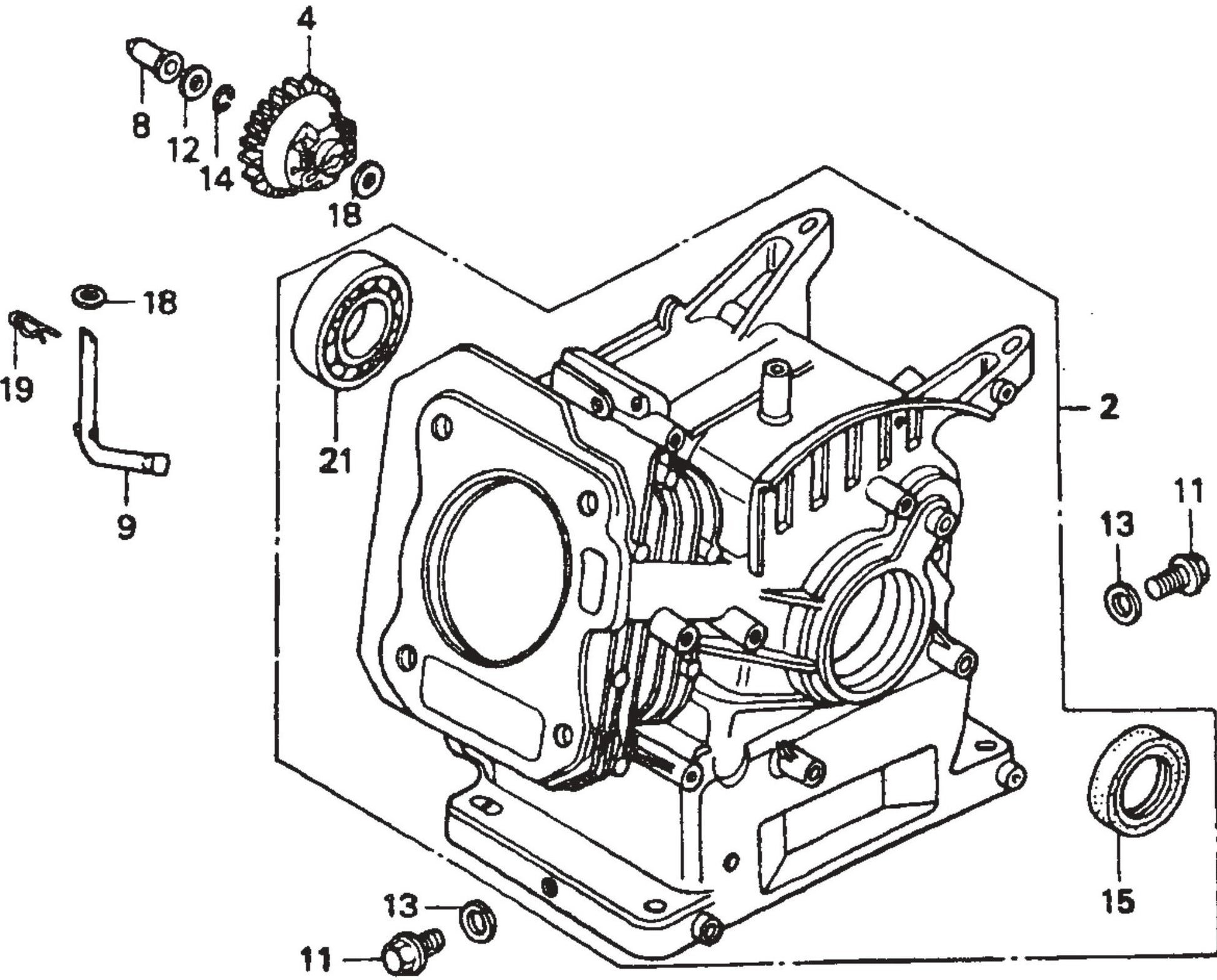

MVC77 Honda GX160K1QX2 Cylinder Barrel Assembly Parts

MVC77 Honda GX160K1QX2 Cylinder Barrel Assembly Parts

  • MVC77 Honda GX160K1QX2 Cylinder Barrel Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
2
12000ZH8010 Barrel Assy. Cylinder for Multiquip Mikasa MVC77 Plate Tamper Compactor
$639.16
4
16510ZE1000 Governor Assy for Multiquip Mikasa MVB85H Plate Tamper Compactor
$32.05
8
16531ZE1000 Slider, Governor for Multiquip Mikasa MTX50HD Jumping Jack Rammer
$6.07
9
16541ZE1000 Shaft, Governor Arm for Multiquip Mikasa MVHR60HW Plate Tamper Compactor
$16.74
11
90131ZE1000 Bolt, Drain Plug for Multiquip Mikasa MTR40HF Jumping Jack Rammer
$27.29
12
90451ZE1000 Thrust Washer 6Mm for Multiquip Mikasa MTR40HF Jumping Jack Rammer
$27.29
13
90601ZE1000 Thrust Washer 6Mm for Multiquip Mikasa MTR40HF Jumping Jack Rammer
$27.29
14
90602ZE1000 Clip, Governor Holder for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$27.29
15
91202883005 Oil Seal (25 X 41 X 6) for Multiquip Mikasa MVC70H MVC70HW Plate Tamper / Compactor
$14.59
18
9410106800 Plain Washer 6Mm for Multiquip Mikasa MVC77 Plate Tamper Compactor
$2.19
19
9425108000 Lock Pin 8 Mm for MVH158GH Reversible Plate Compactor by Multiquip Mikasa
$27.29
21
91001ZF1003 Ball Bearing 6205Tmb for Multiquip Mikasa MVC77 Plate Tamper Compactor
$35.59
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
