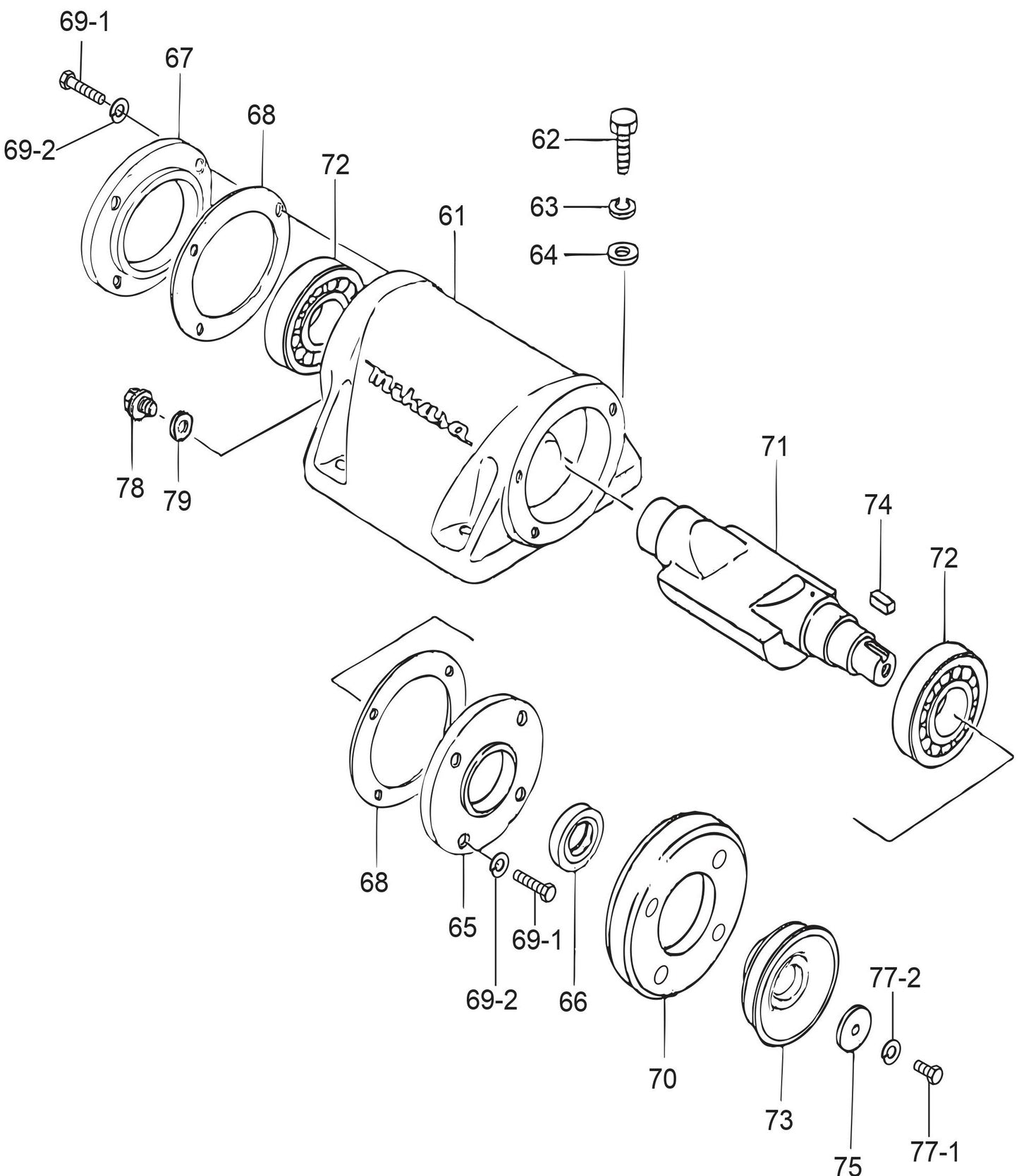

MVC82VH/VHW Vibrator Assembly Parts

MVC82VH/VHW Vibrator Assembly Parts

  • MVC82VH/VHW Vibrator Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
61
418117730 Vibrating Case for Multiquip Mikasa MVC82VH Plate Tamper Compactor
$607.82
62
001221445 Bolt 14X45 for Multiquip Mikasa MVC82VH Plate Tamper Compactor
$4.35
63
030214350 Washer Lock M14 for Multiquip Mikasa MVH308GH Plate Tamper Compactor
$2.19
64
031114260 Washer Flat M14 for Multiquip Mikasa MVH308GH Plate Tamper Compactor
$2.19
65
418456950 Case Cover/Pulley for Multiquip Mikasa MVC82VH Plate Tamper Compactor
Call for Price call for price call for price
66
060403020 Oil Seal for Multiquip Mikasa MVC82VH Plate Tamper Compactor
$27.05
67
418456960 Case Cover/Shut Off for Multiquip Mikasa MVC82VH Plate Tamper Compactor
$28.09
68
418456970 Packing for Multiquip Mikasa MVC82VH Plate Tamper Compactor
$7.98
69-1
014208020 Bolt for Multiquip Mikasa MVH308DZ Plate Tamper Compactor
$4.39
69-2
030208200 Bolt 8X20 T for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$8.66
70
418460130 Cover Seal, Vibrator for Multiquip Mikasa MVC82VH Plate Tamper Compactor
$17.97
71
418343630 Eccentric Rotor Shaft for Multiquip Mikasa MVC82VH Plate Tamper Compactor
$248.93
72
040306307 Bearing 6307C4 for Multiquip Mikasa MVC82VH Plate Tamper Compactor
$30.75
73
418456981 Pulley/Vib. for Multiquip Mikasa MVC82VH Plate Tamper Compactor
$89.65
74
951401920 Key 7X7X30 for Multiquip Mikasa MVC82VH Plate Tamper Compactor
$10.28
75
952403450 Washer 11X35X4.5 for Multiquip Mikasa MVB85H Plate Tamper Compactor
$6.89
77-1
012010030 Bolt 10 X 30 for Multiquip Mikasa MVC90H Plate Tamper Compactor
$3.29
77-2
030210250 Lock Washer for MTX60HD Rammer by Multiquip Mikasa
$2.31
78
953400270 Plug 1/4 X 14 for Multiquip Mikasa MVC77 Plate Tamper Compactor
$18.38
79
953405260 Packing for Multiquip Mikasa MTX80HDR Jumping Jack Rammer
$15.50
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
