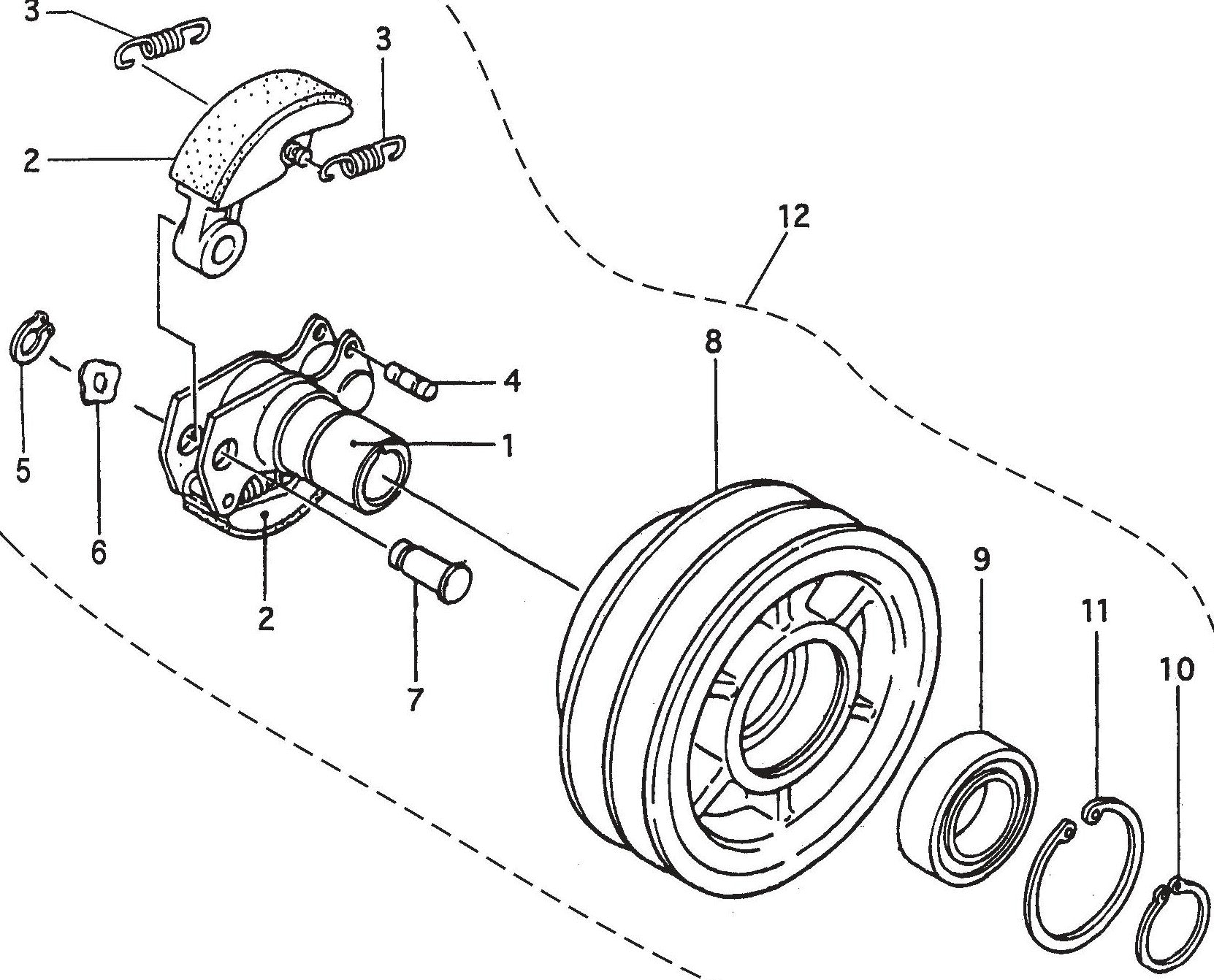

MVC90H Body Clutch Assembly (new type) Parts

MVC90H Body Clutch Assembly (new type) Parts

  • MVC90H Body Clutch Assembly (new type) Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
943040050 Clutch Shaft D:19.05 for Multiquip Mikasa MVC90H Plate Tamper Compactor
$128.06
2
943020030 Clutch Shoe for Multiquip Mikasa MVC90H Plate Tamper Compactor
$58.26
3
943030030 Clutch Spring for Multiquip Mikasa MVC90H Plate Tamper Compactor
$6.85
4
943050080 Spring Pin (A), Clutch for Multiquip Mikasa MVC90H Plate Tamper Compactor
$7.08
5
952010060 Washer, Wave for Multiquip Mikasa MVC90H Plate Tamper Compactor
$3.82
6
080200120 Stop Ring, S-12 for Multiquip Mikasa MVC90H Plate Tamper Compactor
$2.19
7
943050070 Arm Pin, Clutch for Multiquip Mikasa MVC90H Plate Tamper Compactor
$6.83
8
943010030 Pulley Drum /D;143 for Multiquip Mikasa MVC90H Plate Tamper Compactor
$249.91
9
046006006 Bearing 6006Ddu for Multiquip Mikasa MVC90H Plate Tamper Compactor
$32.26
10
080200300 Stop Ring S- 30 for Multiquip Mikasa MVC90H Plate Tamper Compactor
$2.85
11
080100550 Stop Ring R- 55 for Multiquip Mikasa MVC90H Plate Tamper Compactor
$4.99
12
402326850 Clutch Assy, A2- 143- 19 for Multiquip Mikasa MVC90H Plate Tamper Compactor
$318.56
View full details
