MVC90H Honda GX160K1QMX2/GX160U1QMX2 Engine Cylinder Head Assembly Parts

MVC90H Honda GX160K1QMX2/GX160U1QMX2 Engine Cylinder Head Assembly Parts

  • MVC90H Honda GX160K1QMX2/GX160U1QMX2 Engine Cylinder Head Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
12210ZH8000 Cylinder Head for Multiquip Mikasa MVC90H Plate Tamper Compactor
$266.57
1
12210ZH8405 Cylinder Head for Multiquip Mikasa MVC90H Plate Tamper Compactor
$266.57
2
12204ZE1306 Guide, Inlet Valve (O.S.) for Multiquip Mikasa MVB150H Plate Tamper / Compactor
$18.59
3
12205ZE1315 Guide, Ex. Valve (Os) Optional for Multiquip Mikasa MVHR60HW Plate Tamper Compactor
$12.88
4
12216ZE5300 Clip, Valve Guide for Multiquip Mikasa MVC88VTH MVC88CTHW Plate Tampers
$2.50
5
12251ZF1800 Gasket, Cylinder Head for GA25H Portable AC Generator with Honda Gasoline Engine by MQ Multiquip
$28.12
6
12310ZE1010 Cover Comp, Head for GA25H Portable AC Generator with Honda Gasoline Engine by MQ Multiquip
$22.88
7
12391ZE1000 Gasket, Cylinder Head Cover for Multiquip Mikasa MVHR60HW Plate Tamper Compactor
$9.62
8
15721ZH8000 Tube, Breather for Multiquip Mikasa MVB150H Plate Tamper / Compactor
$8.49
9
90016ZE1000 Bolt, Flange (6 X 13) for Multiquip Mikasa MVC90H Plate Tamper Compactor
$27.29
10
90043ZE1020 Bolt, Stud 6X109 for Multiquip Mikasa MVHR60HW Plate Tamper Compactor
$27.29
11
90047ZE1000 Stud Bolt 8X32 for Multiquip Mikasa MVC88VTH MVC88CTHW Plate Tampers
$27.29
12
9430110160 Dowel Pin 10X16 for MVH120VGH Reversible Plate Compactor by Multiquip Mikasa
$27.29
14
957230806000 Bolt, Flange (8 X 60) for Multiquip Mikasa MVC90H Plate Tamper Compactor
$27.29
15
9807955846 Spark Plug (Bpr5Es) (Ngk) for Multiquip Mikasa MVC90H Plate Tamper Compactor
$10.75
15
9807956846 Plug, Spark (Bpr6Es Ngk) for GA25HR Portable Generator with Honda GX160RT2EMAN Gas Engine by MQ Multiquip
$27.29
15
0650140480 Spark Plug (Ey45V) for Multiquip Mikasa MVC90H Plate Tamper Compactor
$15.20
View full details

Frequently asked questions

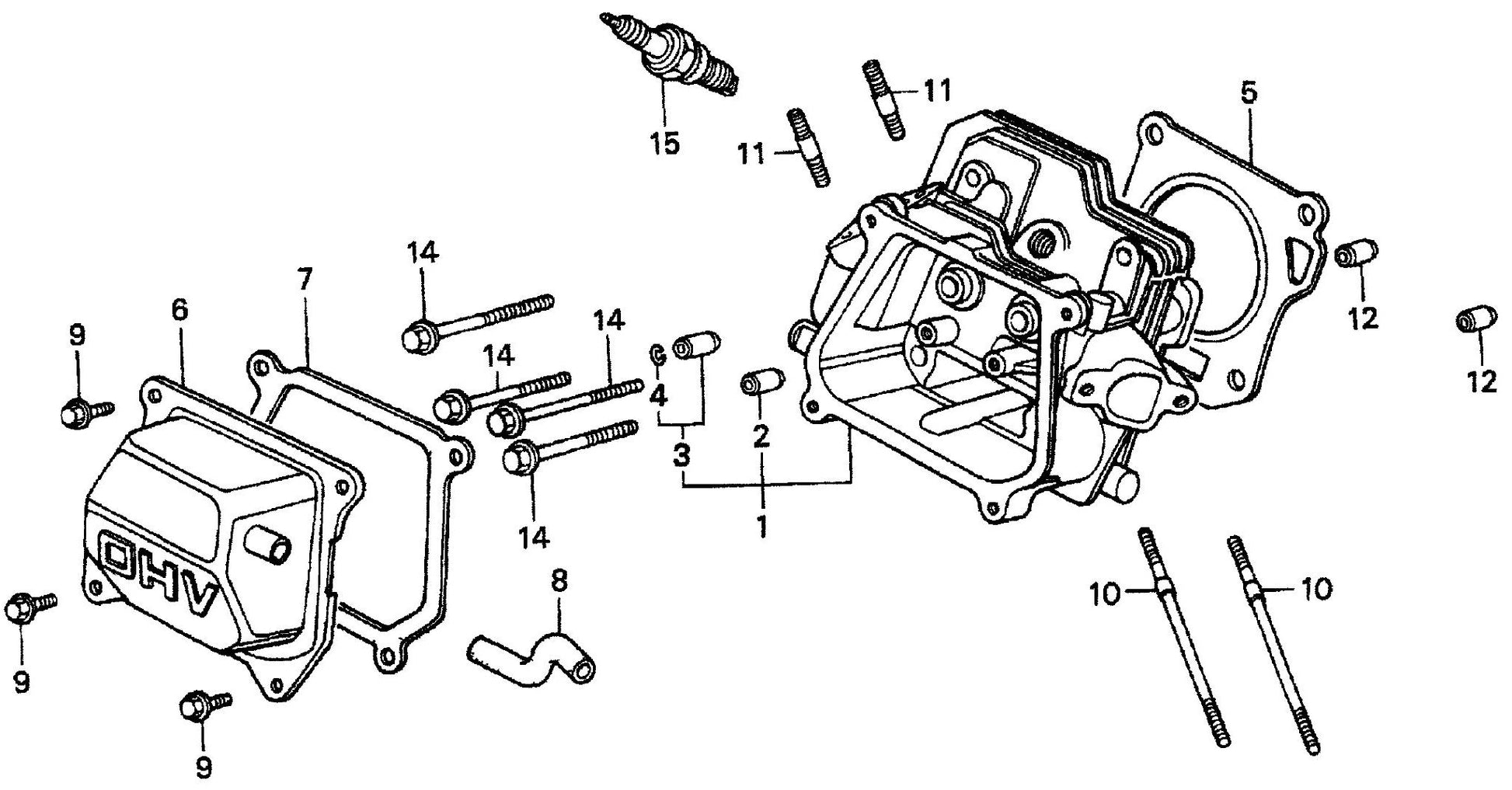

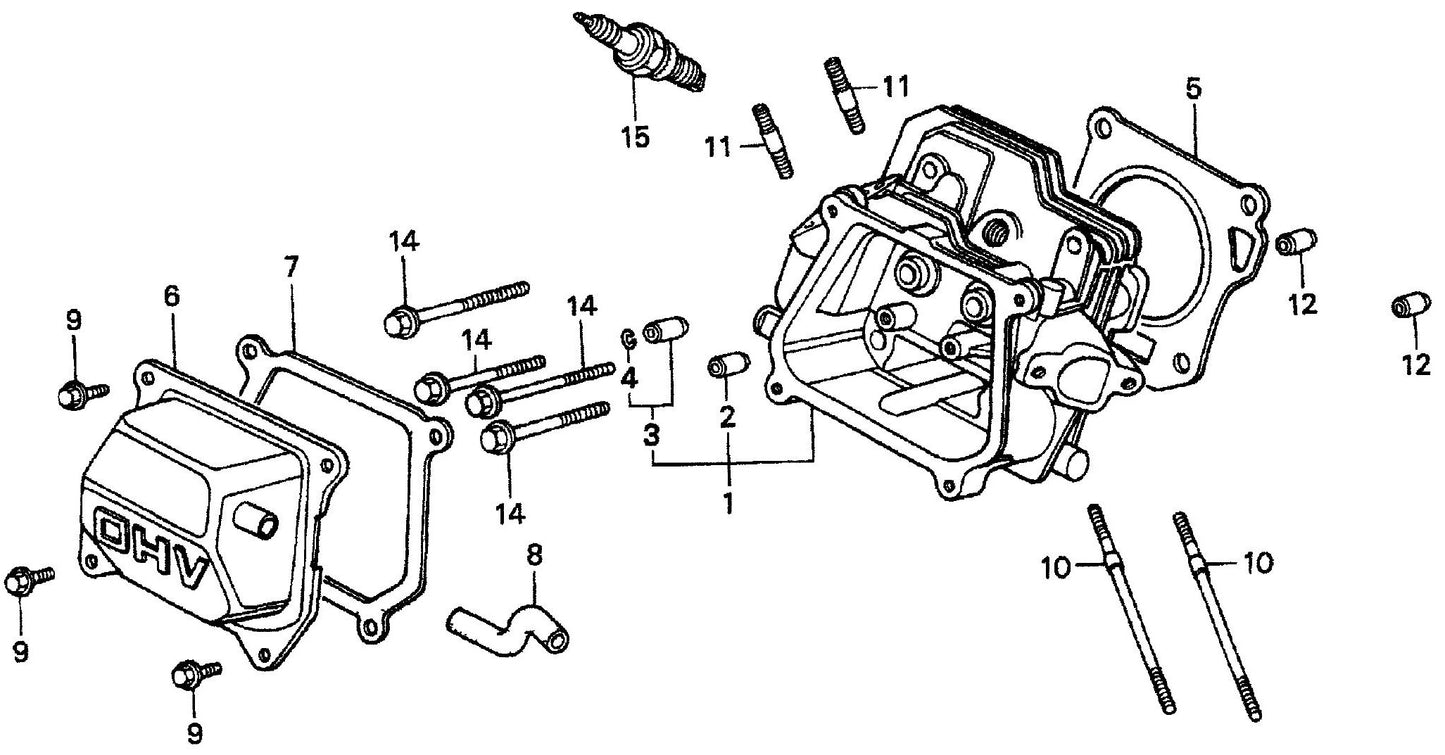

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
