MVC98D2 Vibration Assembly Parts

MVC98D2 Vibration Assembly Parts

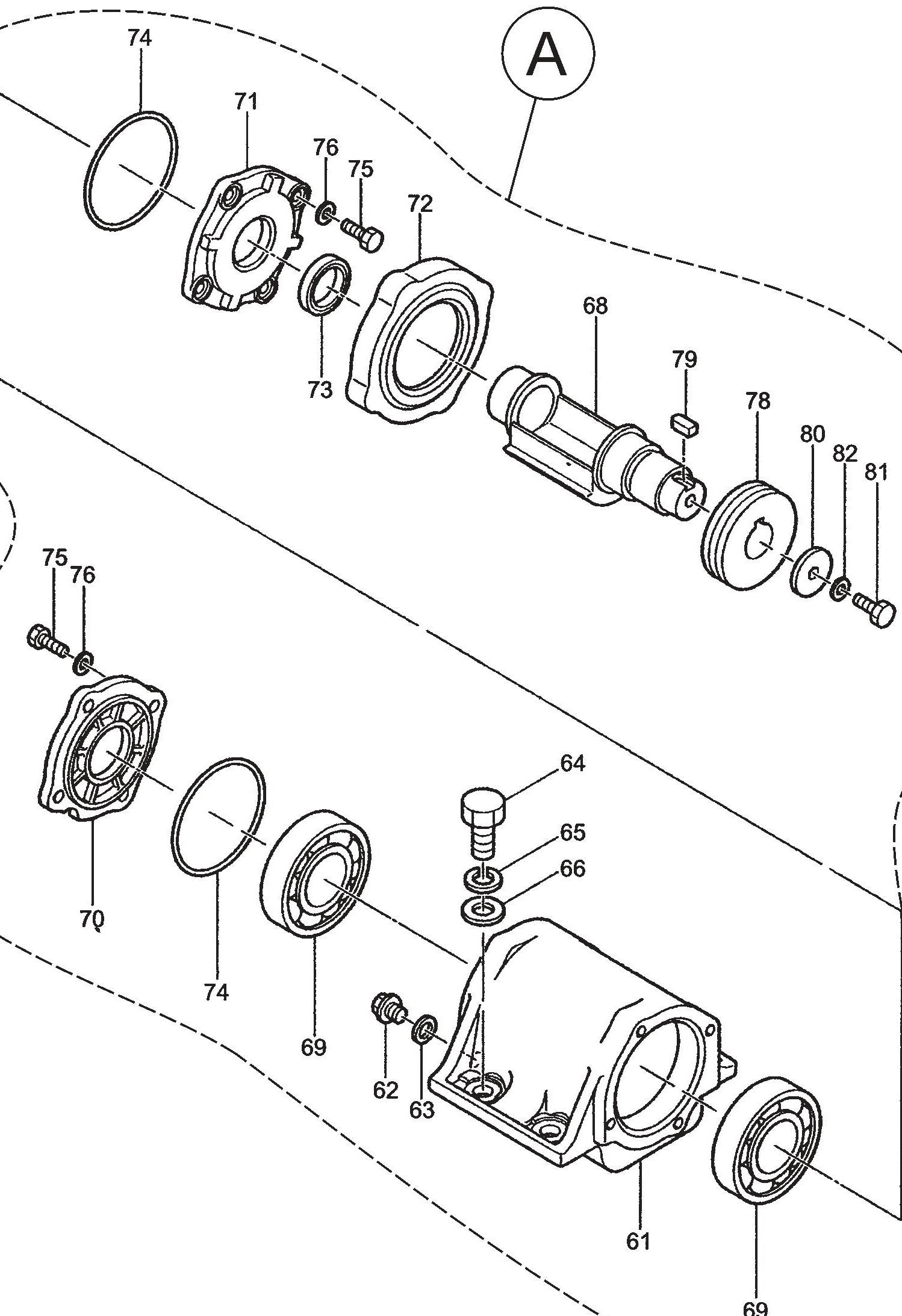

  • MVC98D2 Vibrator Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
A
416910030 Vibrator Assy for Multiquip Mikasa MVC98D2 Plate Tamper Compactor
$1,785.05
61
416115991 Vibrating Case for Multiquip Mikasa MVC98D2 Plate Tamper Compactor
$641.89
62
953400170 Plug 1/4��� X 14 10L for Multiquip Mikasa MVC98D2 Plate Tamper Compactor
$10.67
63
953405260 Packing 1/4 for Multiquip Mikasa MT54F Jumping Jack Rammer
$15.50
64
001221640 Bolt 16 X 40 T for Multiquip Mikasa MVC98D2 Plate Tamper Compactor
$4.35
65
939216499 Washer, Lock M16 for Multiquip Mikasa MVC98D2 Plate Tamper Compactor
$2.19
66
031116260 Washer M16 for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$2.19
68
416215530 Eccentric Rotator for Multiquip Mikasa MVC98D2 Plate Tamper Compactor
$306.55
69
040406211 Bearing 6211C4 for Multiquip Mikasa MVC98D2 Plate Tamper Compactor
$55.81
70
416338900 Case Cover (R) for Multiquip Mikasa MVC98D2 Plate Tamper Compactor
$109.13
71
416338910 Case Cover (L) for Multiquip Mikasa MVC98D2 Plate Tamper Compactor
$137.78
72
416338920 Belt Cover Guard for Multiquip Mikasa MVC98D2 Plate Tamper Compactor
$20.40
73
060803060 Oil Seal Tc- 35488 for Multiquip Mikasa MVC98D2 Plate Tamper Compactor
$9.15
74
050101000 O- Ring G-100 for Multiquip Mikasa MVC98D2 Plate Tamper Compactor
$14.03
75
001220825 Bolt 8 X 25 T for Multiquip Mikasa MVC98D2 Plate Tamper Compactor
$2.19
76
030208200 Bolt 8X20 T for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$8.66
78
416454430 Pulley A1- 28- 81- 20 for Multiquip Mikasa MVC98D2 Plate Tamper Compactor
$74.41
79
951405240 Key 7X7X19 R for Multiquip Mikasa MVC98D2 Plate Tamper Compactor
$12.50
80
952404250 Washer 11 X 40X 4 for Multiquip Mikasa MVC98D2 Plate Tamper Compactor
$6.35
81
001221025 Bolt 10 X 25 T for Multiquip Mikasa MVC98D2 Plate Tamper Compactor
$2.19
82
030210250 Lock Washer for MTX60HD Rammer by Multiquip Mikasa
$2.31
View full details
