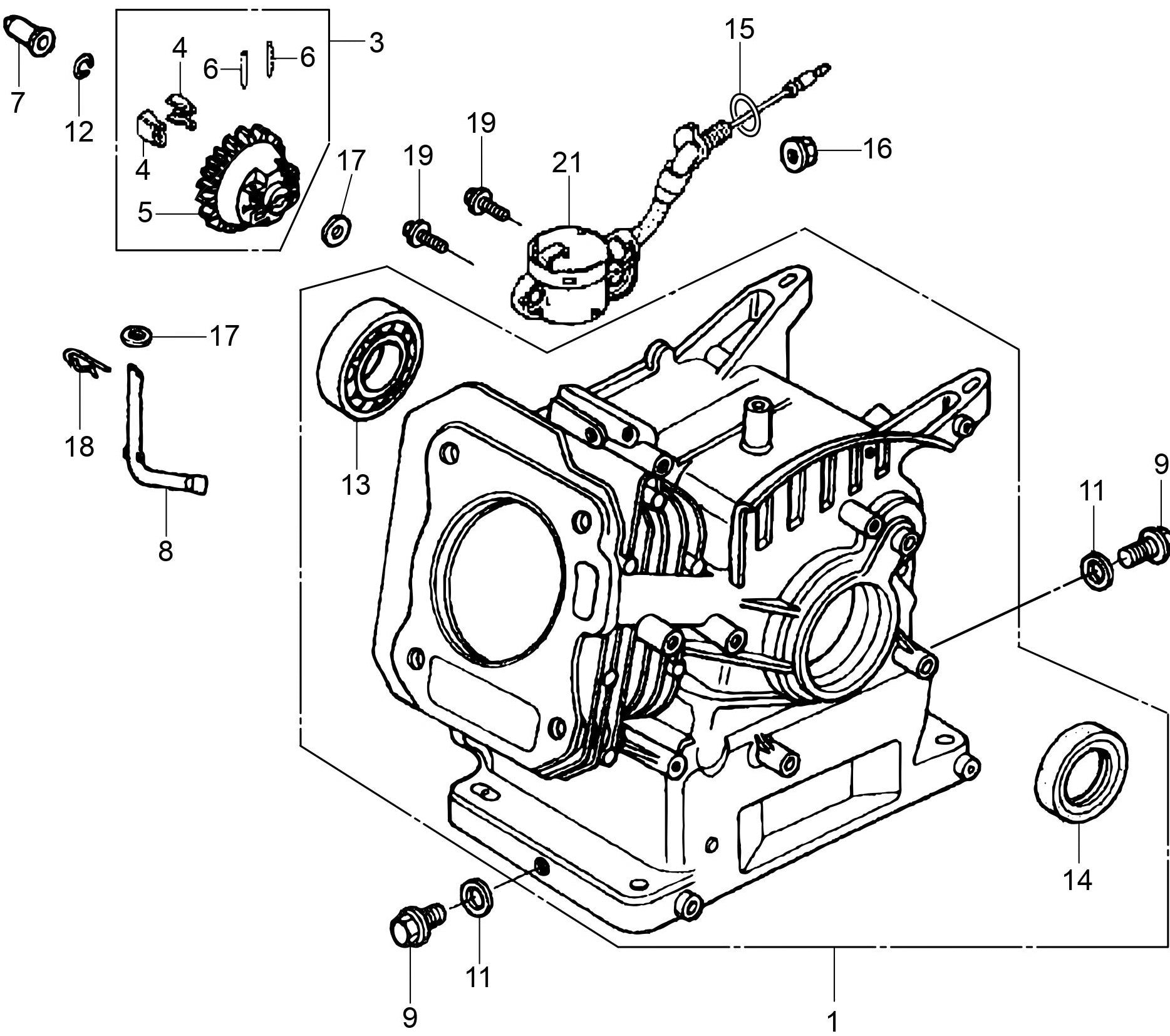

MVH128GH Honda GX160UT2SCM Engine Cylinder Barrel Assembly Parts

MVH128GH Honda GX160UT2SCM Engine Cylinder Barrel Assembly Parts

  • MVH128GH Honda GX160UT2SCM Cylinder Barrel Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
12000Z4M416 Barrel Assembly Cylinder Gx160Ut2Qmxc Gx160Ut2Qcm for Multiquip Mikasa MVC88VTH MVC88CTHW Plate Tampers
$439.55
3
16510Z4M000 Governor Assy for MVH128GH Reversible Plate Compactor by Multiquip Mikasa
$18.21
4%
16511Z4M000 Weight, Governor for Multiquip Mikasa MVC88VTH MVC88CTHW Plate Tampers
$11.81
5%
16512Z4M000 Holder, Governor Weight for Multiquip Mikasa MVB150H Plate Tamper / Compactor
$34.95
6%
16513ZE1000 Pin, Governor Weight for Multiquip Mikasa MVHR60HW Plate Tamper Compactor
$2.87
7
16531Z4M000 Slider, Governor for Multiquip Mikasa MVB150H Plate Tamper / Compactor
$31.20
8
16541Z4M000 Shaft, Governor Arm for Multiquip Mikasa MVB150H Plate Tamper / Compactor
$61.34
9
90131ZE1000 Bolt, Drain Plug for Multiquip Mikasa MTR40HF Jumping Jack Rammer
$27.29
11
90601ZE1000 Washer, Drain Plug for Multiquip Mikasa MVHR60HW Plate Tamper Compactor
$27.29
12
90602ZE1000 Clip, Governor Holder for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$27.29
13$
91001ZF1003 Ball Bearing 6205 for Multiquip Mikasa MVB150H Plate Tamper / Compactor
$35.59
14$
91201Z0T801 Oil Seal 25X41X6 for Multiquip Mikasa MVB150H Plate Tamper / Compactor
$14.88
15
91353671003 O- Ring 13.5X1.5 for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$27.29
16
9405010000 Flange Nut M10 for MVH128GH Reversible Plate Compactor by Multiquip Mikasa
$27.29
17
9410106800 Washer, Flat 6Mm for Multiquip Mikasa MVC88VTH MVC88CTHW Plate Tampers
$2.19
18
9425108000 Lock Pin 8 Mm for MVH158GH Reversible Plate Compactor by Multiquip Mikasa
$27.29
19
957010601200 Bolt Flange (6X12) for GA6H GA6HA Portable Generators for Honda Gasoline Engine by MQ Multiquip
$3.25
21
35480Z0T003 Switch Assy., Oil Level for Multiquip Mikasa MVB150H Plate Tamper / Compactor
$79.00
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
