MVH150D2 YANMAR L48V6 Air Cleaner Assembly Parts

MVH150D2 YANMAR L48V6 Air Cleaner Assembly Parts

  • MVH150D2 YANMAR L48V6 Air Cleaner Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
11429912210 Air Cleaner Gasket for MVH150 D2 Reversible Plate Compactor by Multiquip Mikasa
$8.26
2
11429912300 U- Nut for MVH150 D2 Reversible Plate Compactor by Multiquip Mikasa
$2.95
3
11428812511 Cleaner, Air Assy for MVH150 D2 Reversible Plate Compactor by Multiquip Mikasa
$144.30
4
11465007450 Label, Air Cleaner for MVH150 D2 Reversible Plate Compactor by Multiquip Mikasa
$4.95
5
11428812520 Cover Compl. for MVH150 D2 Reversible Plate Compactor by Multiquip Mikasa
$60.28
6
11428812532 Case, Air Cleaner for MVH150 D2 Reversible Plate Compactor by Multiquip Mikasa
$46.08
7
11425212560 Seal Washer M8 for MVH150 D2 Reversible Plate Compactor by Multiquip Mikasa
$4.95
8
11465012590 Element W/ Pre- Filter for MVH150 D2 Reversible Plate Compactor by Multiquip Mikasa
$40.24
10
11465012550 Pre- Filter for MVH150 D2 Reversible Plate Compactor by Multiquip Mikasa
$12.62
11
11425212550 Wing Nut M8 for MVH150 D2 Reversible Plate Compactor by Multiquip Mikasa
$3.25
13
11477112010 Intake Manifold for MVH150 D2 Reversible Plate Compactor by Multiquip Mikasa
$56.15
14
11477112200 Air Intake Gasket for Multiquip Mikasa MT86D2 Jumping Jack Rammer
$4.99
15
26106060252 Bolt M 6X 25 Plated for Multiquip Mikasa MT76D2 Jumping Jack Rammer
$2.99
16
26226060142 Stud M 6X14 Plated for MVH150 D2 Reversible Plate Compactor by Multiquip Mikasa
$2.95
17
26226060552 Stud M 6X 55 for MVH150 D2 Reversible Plate Compactor by Multiquip Mikasa
$2.95
View full details

Frequently asked questions

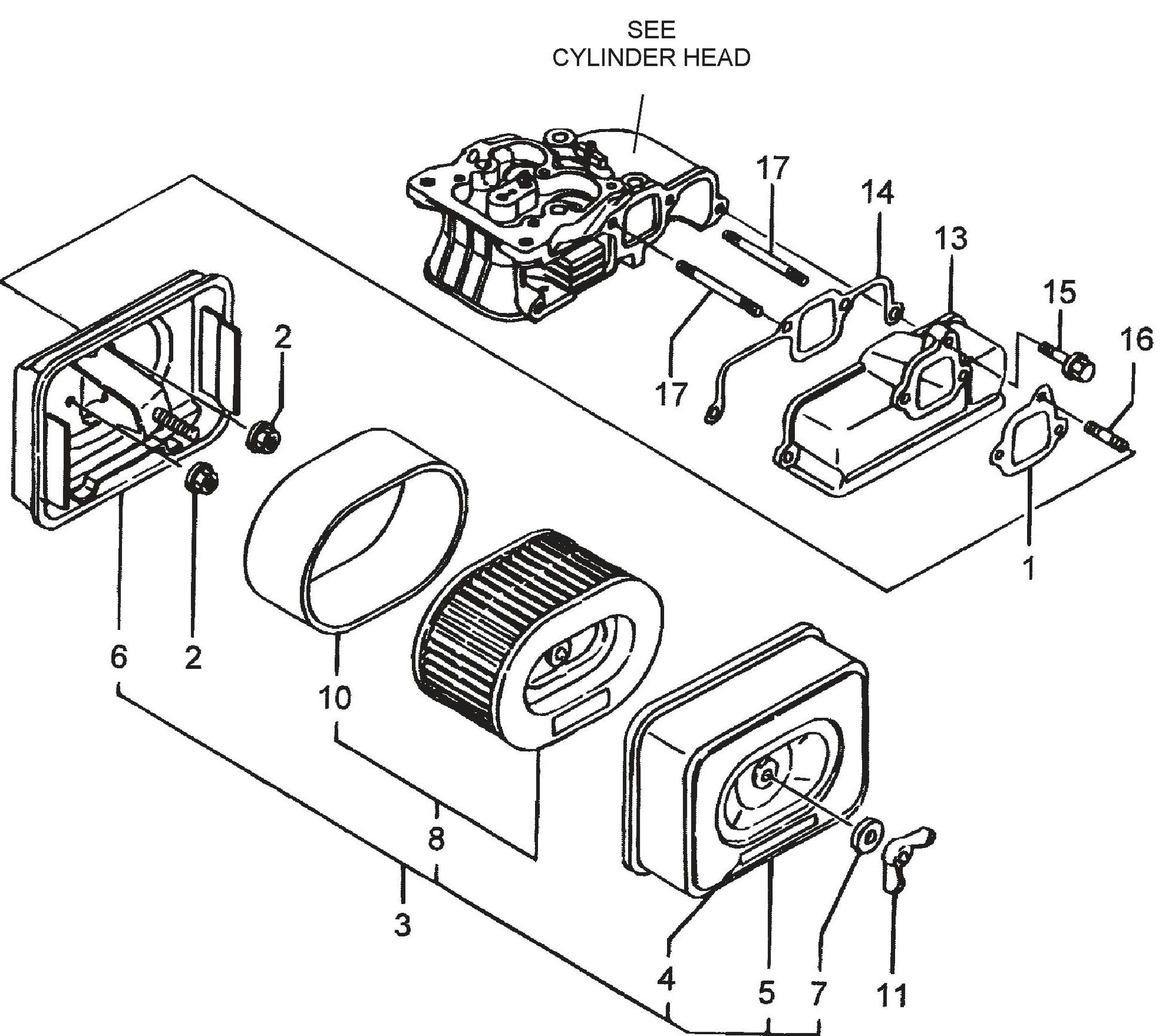

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
