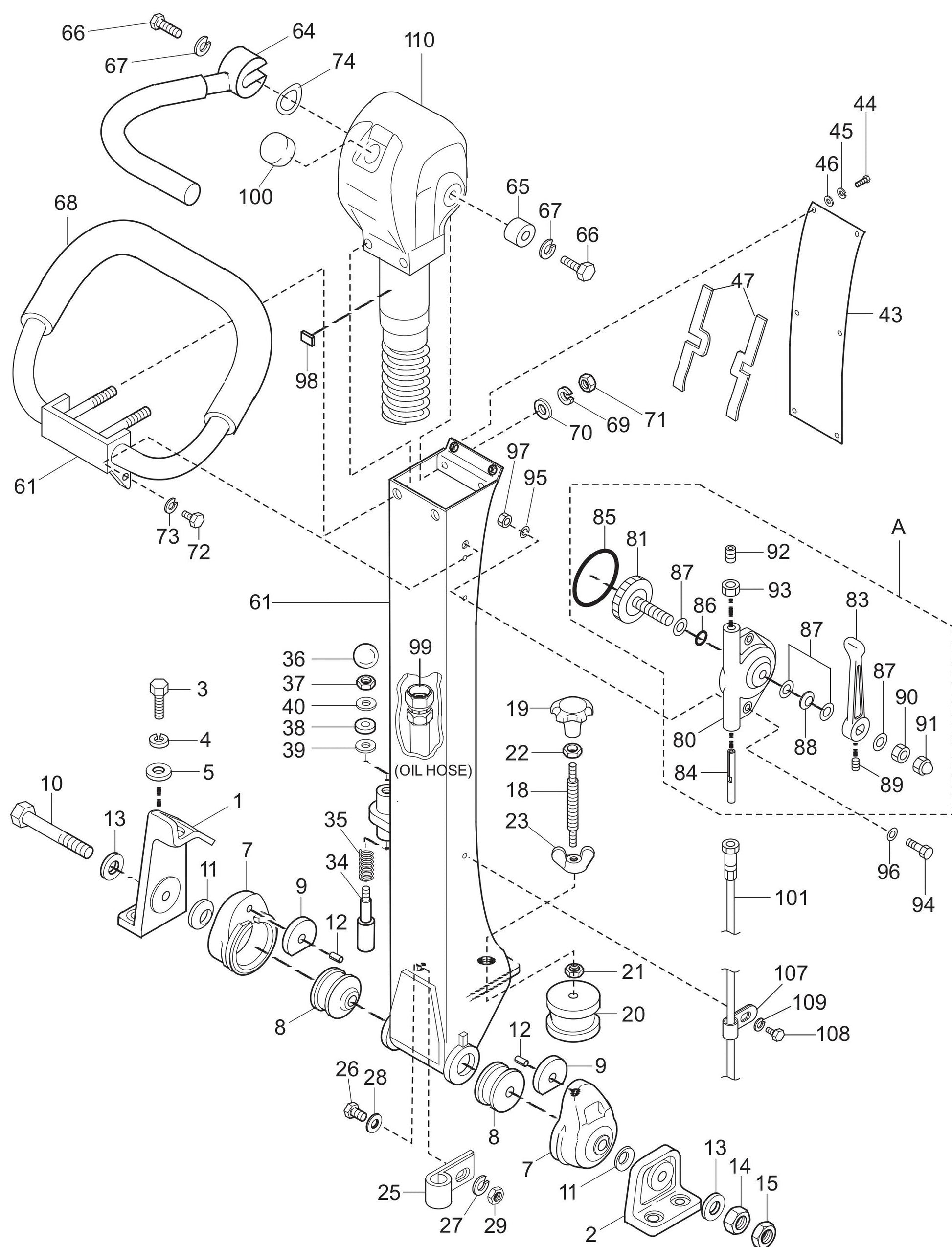

MVH206D Control Assembly Parts

MVH206D Control Assembly Parts

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
A
362910060 Throttle Lever Assembly for MT77FR Jumping Jack Rammer Multiquip Mikasa
$69.41
1
464343680 Handle Bracket for MVH206D Reversible Plate Compactor by Multiquip Mikasa
$109.96
2
456336420 Handle Bracket (R) for Multiquip Mikasa MVH306D Plate Tamper Compactor
$94.23
3
001221235 Bolt 12X35 T for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$5.49
4
030212300 Washer Sw M12 for Multiquip Mikasa MT75HS Jumping Jack Rammer
$1.21
5
031112230 Drain Washer for Multiquip Mikasa MRH800GS Walk Behind Tandem Roller
$2.19
7
456336400 Rubber Coupling for Multiquip Mikasa MVH306D Plate Tamper Compactor
$74.41
8
456449940 Shock Absorber for Multiquip Mikasa MVH306D Plate Tamper Compactor
$69.41
9
456449930 Rubber Plate for Multiquip Mikasa MVH306D Plate Tamper Compactor
$9.77
10
001221681 Bolt 16X250 for Multiquip Mikasa Plate Tamper Compactor
$57.48
11
032124400 Conical Spring Washer M24 for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$19.83
12
025406016 Spring Pin 6X16 for MVH206D Reversible Plate Compactor by Multiquip Mikasa
$2.19
13
031116260 Washer M16 for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$2.19
14
020316130 Nut M16 for Multiquip Mikasa MVH306D Plate Tamper Compactor
$2.19
15
020416100 Nut for Multiquip Mikasa MVH308DZ Plate Tamper Compactor
$4.35
18
455434950 Spindle for Multiquip Mikasa MVH306D Plate Tamper Compactor
$84.99
19
455010030 Knob for Multiquip Mikasa MVH306D Plate Tamper Compactor
$49.40
20
939010060 Shock Absorber for Multiquip Mikasa MVH306D Plate Tamper Compactor
$55.02
21
020410060 Nut M10 ,H=6 for Multiquip Mikasa MT86D2 Jumping Jack Rammer
$3.29
37
020410060 Nut M10 ,H=6 for Multiquip Mikasa MT86D2 Jumping Jack Rammer
$3.29
90
020410060 Nut M10 ,H=6 for Multiquip Mikasa MT86D2 Jumping Jack Rammer
$3.29
22
020412070 Nut M12 for Multiquip Mikasa MVH402DSB Plate Tamper Compactor
$3.29
23
022411635 Wing Nut M16 for Multiquip Mikasa MVH306D Plate Tamper Compactor
$19.11
25
954404230 Clamp Sa120- 18 for Multiquip Mikasa MVH402DSB Plate Tamper Compactor
$4.99
26
001220620 Bolt 6X20 for Multiquip Mikasa MTX80HDR Jumping Jack Rammer
$2.19
27
030206150 Lock Washer for Multiquip Mikasa MVC88VTH MVC88CTHW Plate Tampers
$3.85
45
030206150 Lock Washer for Multiquip Mikasa MVC88VTH MVC88CTHW Plate Tampers
$3.85
109
030206150 Lock Washer for Multiquip Mikasa MVC88VTH MVC88CTHW Plate Tampers
$3.85
28
031106100 Pw M6 for MVH200GH Reversible Plate Compactor by Multiquip Mikasa
$2.19
46
031106100 Pw M6 for MVH200GH Reversible Plate Compactor by Multiquip Mikasa
$2.19
29
020306050 Nut M6 for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$2.19
97
020306050 Nut M6 for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$2.19
34
501402870 Handle Stopper for Multiquip Mikasa MVH306D Plate Tamper Compactor
$95.21
35
501402880 Spring/ Handle ( 1.4X18X44 ) for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$18.52
36
959403460 Ball Grip 32D- M10 for Multiquip Mikasa MVH402GHB Plate Tamper Compactor
$26.12
38
456449980 Rubber Packing 9D- 20D- 5T for Multiquip Mikasa MVH402GHB Plate Tamper Compactor
$4.95
39
953405260 Packing 1/4 for Multiquip Mikasa MT54F Jumping Jack Rammer
$15.50
40
031110160 Flat Washer, M10 for Multiquip Mikasa MRH800DS2 Walk Behind Tandem Roller
$2.19
70
031110160 Flat Washer, M10 for Multiquip Mikasa MRH800DS2 Walk Behind Tandem Roller
$2.19
87
031110160 Flat Washer, M10 for Multiquip Mikasa MRH800DS2 Walk Behind Tandem Roller
$2.19
43
466217890 Handle Cover for MVH206D Reversible Plate Compactor by Multiquip Mikasa
$145.43
44
001220615 Bolt 6 X15 for Multiquip Mikasa MVHR60HW Plate Tamper Compactor
$4.39
108
001220615 Bolt 6 X15 for Multiquip Mikasa MVHR60HW Plate Tamper Compactor
$4.39
47
466462010 Packing, Handle Cover for MVH206D Reversible Plate Compactor by Multiquip Mikasa
$4.95
61
466119770 Handle for MVH206D Reversible Plate Compactor by Multiquip Mikasa
$366.50
64
464216630 Travel Lever for MVH206D Reversible Plate Compactor by Multiquip Mikasa
$154.01
65
464457400 Handle Boss for MVH206D Reversible Plate Compactor by Multiquip Mikasa
$24.93
66
001221030 Bolt 10X30 T for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$2.19
67
030210250 Lock Washer for MTX60HD Rammer by Multiquip Mikasa
$2.31
69
030210250 Lock Washer for MTX60HD Rammer by Multiquip Mikasa
$2.31
68
464216620 Grip for MVH206D Reversible Plate Compactor by Multiquip Mikasa
$270.61
71
020310080 Nut for Multiquip Mikasa MVH308DZ Plate Tamper Compactor
$7.69
72
001220825 Bolt 8 X 25 T for Multiquip Mikasa MVC98D2 Plate Tamper Compactor
$2.19
73
030208200 Lock Washer M8 for Multiquip Mikasa MT62HS Jumping Jack Rammer
$8.66
74
952010030 Wave Washer W-20 for MVH206D Reversible Plate Compactor by Multiquip Mikasa
$2.95
80
362341550 Throttle Body for Multiquip Mikasa MT86D2 Jumping Jack Rammer
$19.87
81
362910090 Throttle Gear Cp W/ Bolt for Multiquip Mikasa MT86D2 Jumping Jack Rammer
$13.22
83
362455630 Throttle Lever for Multiquip Mikasa MT86D2 Jumping Jack Rammer
$14.63
84
362455620 Slider for Multiquip Mikasa MVHR60HW Plate Tamper Compactor
$7.99
85
050100450 O- Ring G- 45 for Multiquip Mikasa MT62HS Jumping Jack Rammer
$3.26
86
050200100 O- Ring P- 10 for Multiquip Mikasa MT62HS Jumping Jack Rammer
$3.29
88
032210220 Conical Spring Washer M10 for MVH206D Reversible Plate Compactor by Multiquip Mikasa
$5.45
89
096206006 Socket Head Screw 6 X 6 for Multiquip Mikasa MT84FA Jumping Jack Rammer
$4.35
91
022131008 Cap Nut M10 for Multiquip Mikasa MT86D2 Jumping Jack Rammer
$4.35
92
096208020 Socket Head Screw 8X20 1 for Multiquip Mikasa MT65HA Jumping Jack Rammer
Call for Price call for price call for price
93
020408050 Nut M8 for MT77FR Jumping Jack Rammer Multiquip Mikasa
$2.19
94
001220625 Bolt 6X25 for MVH128GH Reversible Plate Compactor by Multiquip Mikasa
Call for Price call for price call for price
95
030206150 Spring Washer for Multiquip Mikasa MT62HS Jumping Jack Rammer
$2.19
96
031106100 Washer M5 for Multiquip Mikasa MT84FA Jumping Jack Rammer
$2.19
98
464457930 Rubber Piece (T2) for MVH206D Reversible Plate Compactor by Multiquip Mikasa
$5.75
99
954002270 Oil Hose W/ Spring 1/4X920 for MVH206D Reversible Plate Compactor by Multiquip Mikasa
$86.04
100
458451630 Brather Cap for MVH150 D2 Reversible Plate Compactor by Multiquip Mikasa
$5.95
101
956100065 Throttle Wire for MVH206D Reversible Plate Compactor by Multiquip Mikasa
$41.63
107
20675501-01 Clamp Compl for MVH206D Reversible Plate Compactor by Multiquip Mikasa
Call for Price call for price call for price
110
4663-47890 Hand Pump for MVH206D Reversible Plate Compactor by Multiquip Mikasa
Call for Price call for price call for price
