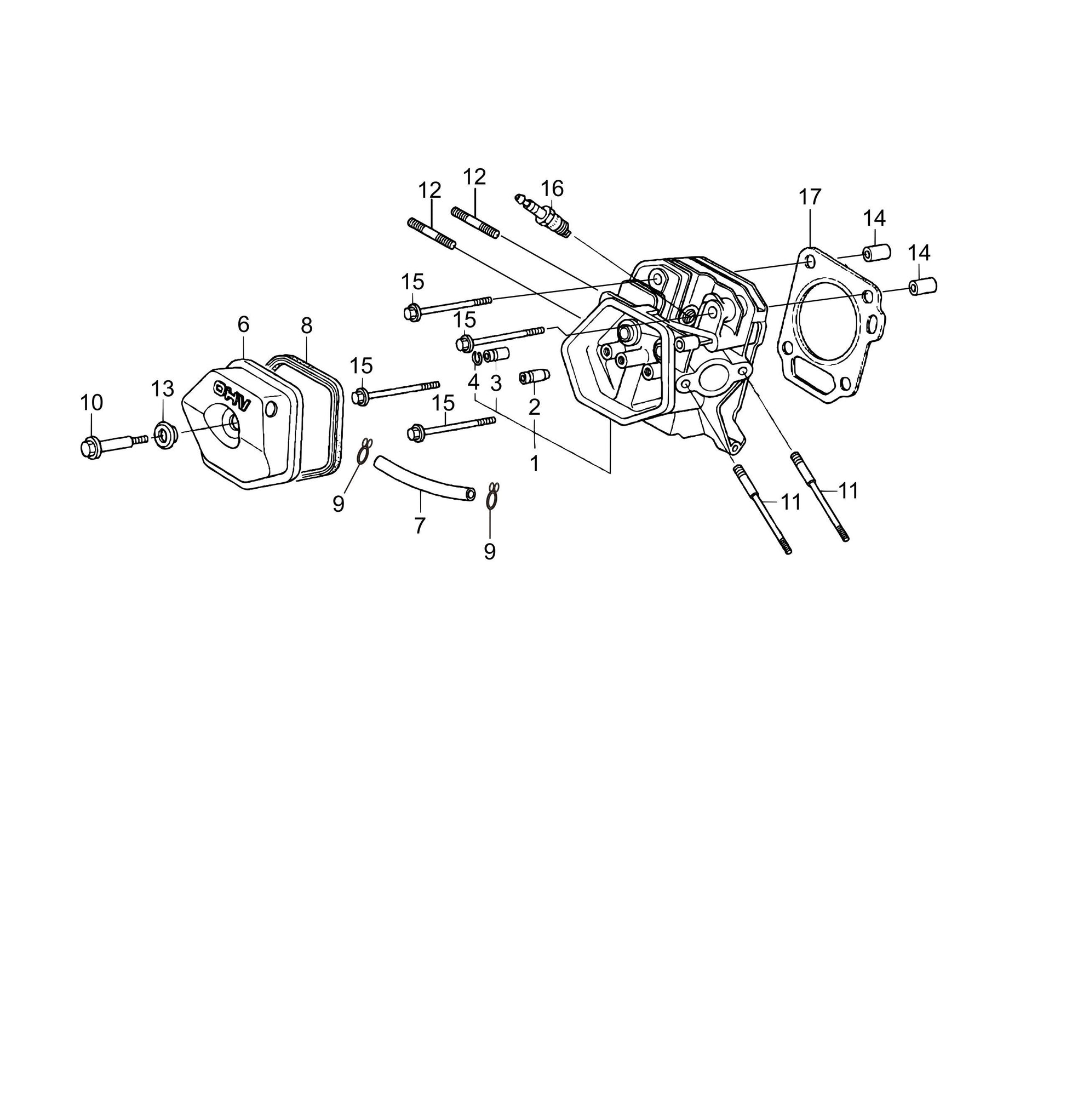

MVH208GH Honda GX240UT2SMXC/GX270UT2SCM Engine Cylinder Head Assembly Parts

MVH208GH Honda GX240UT2SMXC/GX270UT2SCM Engine Cylinder Head Assembly Parts

  • MVH208GH Honda GX240UT2SMXC/GX270UT2SCM Engine Cylinder Head Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
12210Z5K405 Head Comp., Cylinder for GA36HR Portable Generator with Honda GX240RT 2EDN2 Gasoline Engine by MQ Multiquip
$116.68
2
12204ZE2306 Guide, Ex. Valve Os (Optional) for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$19.10
3
12205ZE2305 Guide, Ex. Valve (Oversize) for Multiquip Mikasa MVH308GH Plate Tamper Compactor
$21.21
4
12216ZE2300 Clip, Valve Guide for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$3.95
6
12310ZE3791 Cover Comp., Head for MVH208GH Reversible Plate Compactor by Multiquip Mikasa
$61.91
7
12315ZE3840 Tube, Breather for MVH208GH Reversible Plate Compactor by Multiquip Mikasa
$11.10
8
12391ZE2020 Gasket, Cylinder Head Cover for Multiquip Mikasa MVH402GHB Plate Tamper Compactor
$22.79
9
17316611000 Clip, Breather Tube for MVH208GH Reversible Plate Compactor by Multiquip Mikasa
$11.85
10
90014Z5T000 Bolt, Head Cover for Multiquip Mikasa MVH308GH Plate Tamper Compactor
$27.29
11
90042ZE2000 Bolt, Stud 8X123 for MVH208GH Reversible Plate Compactor by Multiquip Mikasa
$27.29
12
92900080320E Bolt 2, Stud 8X32 for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$5.02
13
90441ZE2010 Washer Comp., Head Cover for Multiquip Mikasa MVH308GH Plate Tamper Compactor
$10.91
14
9430112200 Dowel Pin 12X20 for GA6HR GA6HRS Portable Generators with Honda GX340RT2EDN2 GX340RT2EDE2 Engine by MQ Multiquip
$27.29
15
957011008000 Bolt, Flange (10X80) for GA36HZ GA36H GA36HA Portable Generator with Honda Gasoline Engine by MQ Multiquip
$27.29
16
9807956855 Spark Plug (W20Epr-U) for MVH208GH Reversible Plate Compactor by Multiquip Mikasa
$27.29
16
0650140480 Spark Plug (Bpr6Es for Multiquip Mikasa MVH308GH Plate Tamper Compactor
$15.20
16
9807956846 Plug, Spark (Bpr6Es Ngk) for GA25HR Portable Generator with Honda GX160RT2EMAN Gas Engine by MQ Multiquip
$27.29
17
12251Z5K003 Gasket, Cylinder Head for MVH208GH Reversible Plate Compactor by Multiquip Mikasa
$6.27
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
