MVH304GHB Base And Engine Assembly Parts

MVH304GHB Base And Engine Assembly Parts

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
456115320 Base (Gx340 /390) for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$2,677.59
2
912234002 Engine Ay Gx340 for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$2,258.82
3
456450200 Engine Base (Gx340) E2474- for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$148.73
7
456113830 Belt Cover (In) Gx340 for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$677.60
8
001220825 Bolt 8 X 25 T for Multiquip Mikasa MVC98D2 Plate Tamper Compactor
$2.19
17
001220825 Bolt 8 X 25 T for Multiquip Mikasa MVC98D2 Plate Tamper Compactor
$2.19
60
001220825 Bolt 8 X 25 T for Multiquip Mikasa MVC98D2 Plate Tamper Compactor
$2.19
9
030208200 Lock Washer M8 for Multiquip Mikasa MT62HS Jumping Jack Rammer
$8.66
10
031108160 Pw M8 for Multiquip Mikasa MT55F Jumping Jack Rammer
$2.19
11
456445120 Cover Seal 125D for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$31.18
12
456445721 Spacer 25-32-21 for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$32.02
13
456335600 Clutch Ay W/Fan for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$413.36
14
951400110 Key 7X7X35 for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$7.43
15
455444350 Washer, Clutch for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$13.17
16
030208200 Bolt 8X20 T for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$8.66
18
070200353 V-Belt B-35 Green for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$38.53
19
456113790 Belt Cover (Out) for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$458.37
20
001221052 Bolt 10X60 T for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$4.35
22
030210250 Lock Washer for MTX60HD Rammer by Multiquip Mikasa
$2.31
34
030210250 Lock Washer for MTX60HD Rammer by Multiquip Mikasa
$2.31
47
030210250 Lock Washer for MTX60HD Rammer by Multiquip Mikasa
$2.31
23
031110160 Flat Washer, M10 for Multiquip Mikasa MRH800DS2 Walk Behind Tandem Roller
$2.19
41
031110160 Flat Washer, M10 for Multiquip Mikasa MRH800DS2 Walk Behind Tandem Roller
$2.19
56
031110160 Flat Washer, M10 for Multiquip Mikasa MRH800DS2 Walk Behind Tandem Roller
$2.19
24
456114850 Guard Frame for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$850.53
25
001221230 Bolt 12 X 30 T for MVH150 D2 Reversible Plate Compactor by Multiquip Mikasa
$3.37
26
030212300 Washer Sw M12 for Multiquip Mikasa MT75HS Jumping Jack Rammer
$1.21
30
030212300 Washer Sw M12 for Multiquip Mikasa MT75HS Jumping Jack Rammer
$1.21
27
456335520 Pulley B1-105 W/Fan /Mvh for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$192.76
28
456437920 Washer, Pulley for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$68.40
29
001221235 Bolt 12X35 T for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$5.49
31
301010950 Return Spring for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$4.35
32
456334920 Cover, Oil Tank for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$128.91
33
001221015 Bolt 10X15 T for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$3.29
42
456334630 Pump Cover for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$65.62
43
001520816 Socket Head Bolt 8X16 T for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$3.29
45
456334860 Guard Pipe for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$56.27
46
001221020 Bolt 10X20 T for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$2.19
48
001221030 Bolt 10X30 T for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$2.19
49
020310080 Nut for Multiquip Mikasa MVH308DZ Plate Tamper Compactor
$7.69
55
030210250 Lock Washer, M10 for Multiquip Mikasa MRH800DS2 Walk Behind Tandem Roller
$2.19
57
001221045 Bolt 10X45 T for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$3.29
58
456450820 Rubber Cover, Gx for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$34.72
59
456450800 Plate, Cover for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$24.81
61
031108160 Plain Washer M8 for Multiquip Mikasa MVC77 Plate Tamper Compactor
$2.19
62
022710809 Nut, Nylon M8 for Multiquip Mikasa MVH402GHB Plate Tamper Compactor
$3.29
63
954405510 Clamp Cla-3200 (9D for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$2.19
64
031105080 Washer M5 for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$2.19
View full details

Frequently asked questions

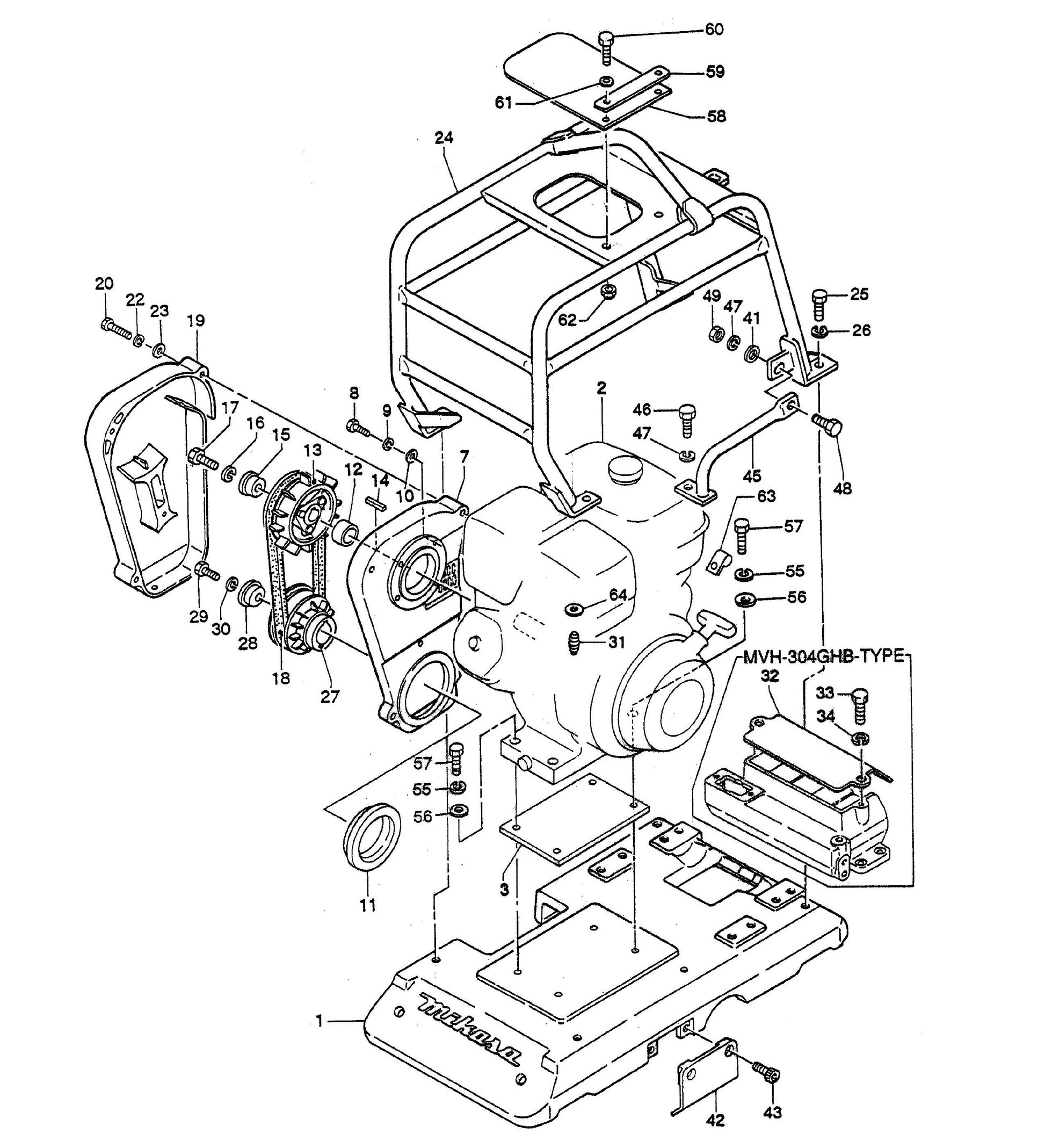

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
