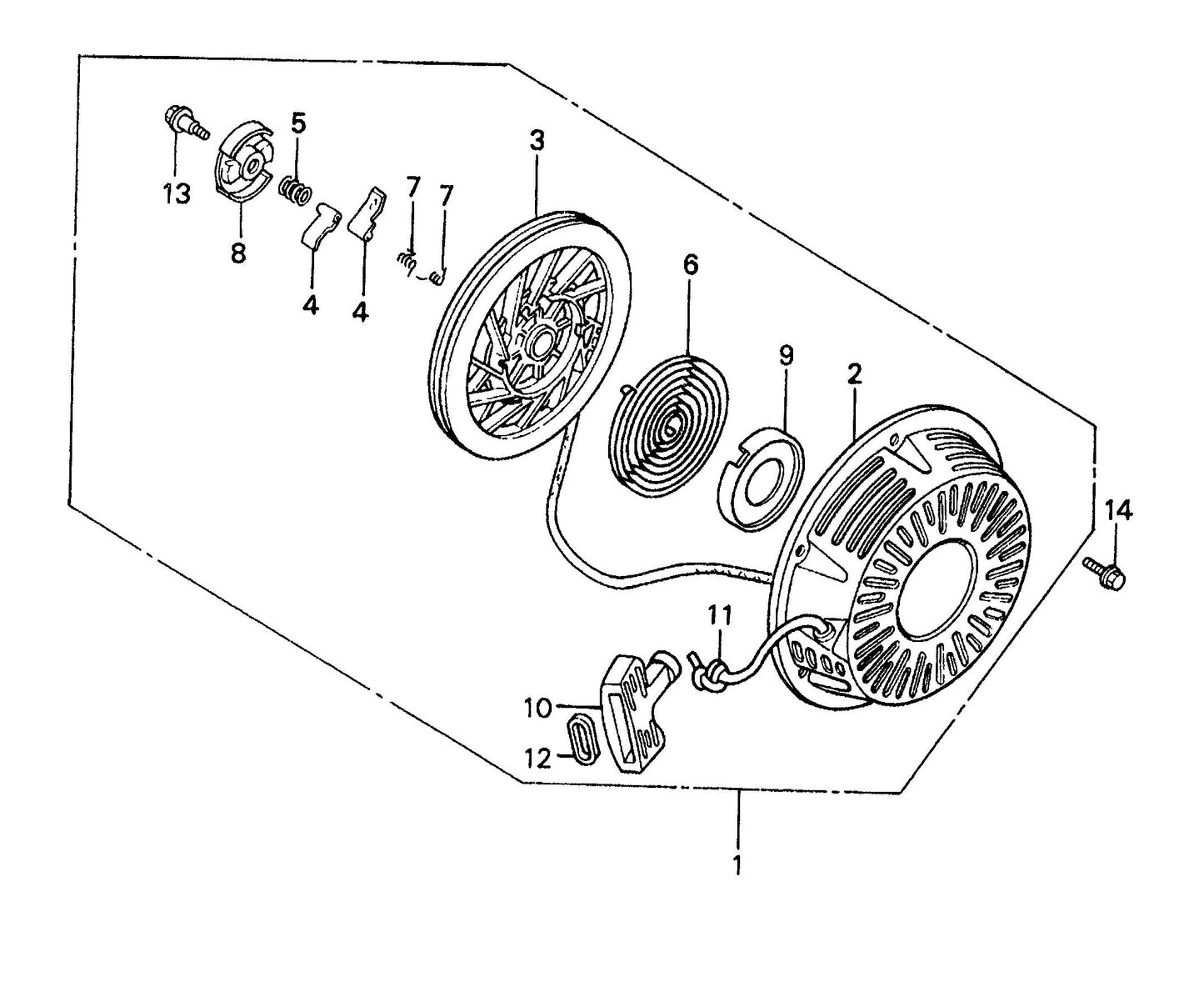

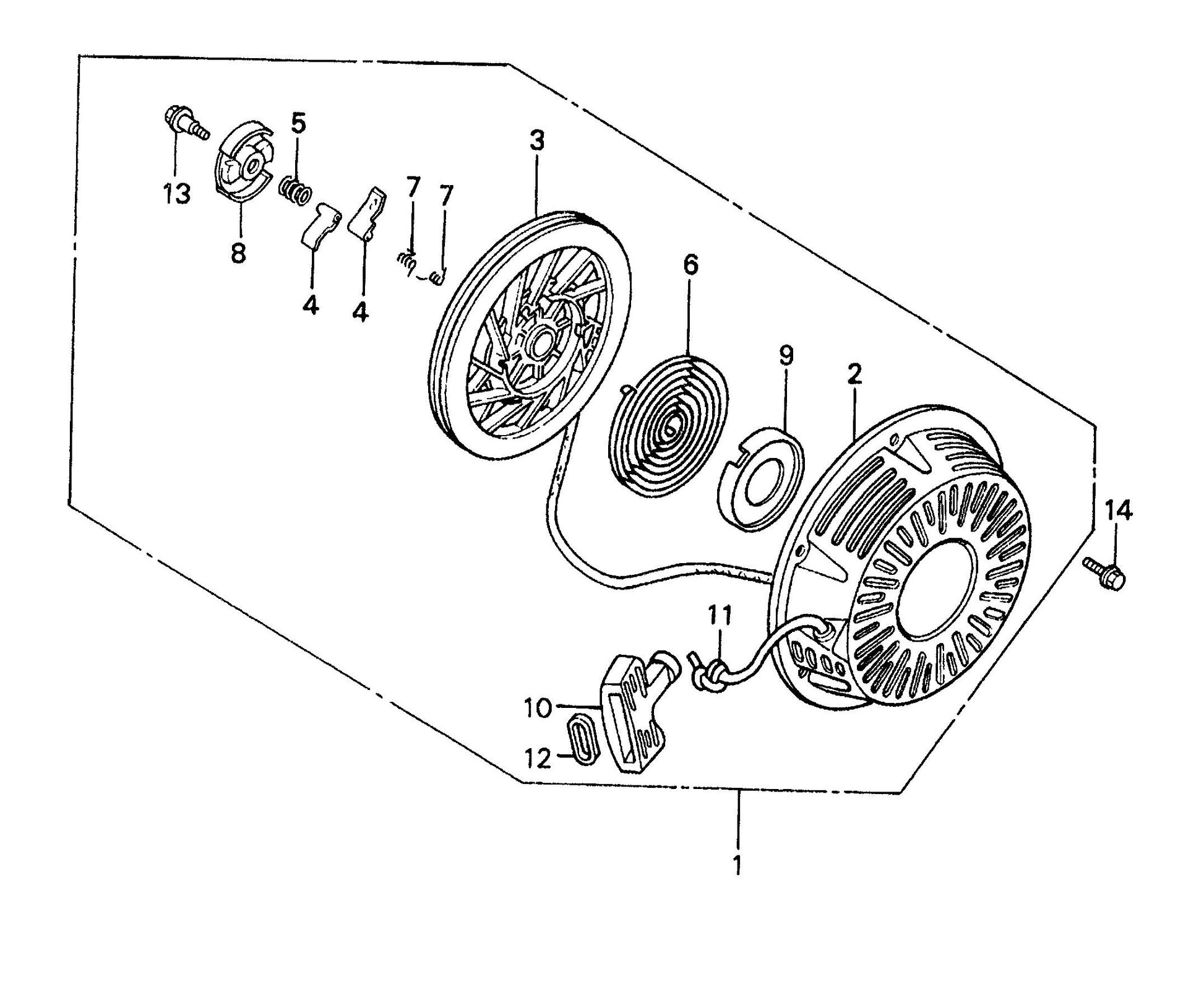

MVH304GHB Honda GX340K1SMX2 Recoil Starter Assembly Parts

MVH304GHB Honda GX340K1SMX2 Recoil Starter Assembly Parts

  • MVH304GHB Honda GX340K1SMX2 Recoil Starter Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
28400ZEW01ZA Starter Assy., Recoil *R8* Bght Red for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$151.18
2
28410ZE3W01ZA Case, Recoil Starter *R8* Bght Red for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$196.42
3
28421ZE3W01 Pulley, Recoil Starter for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$56.81
4
28422ZE2W01 Ratchet, Starter for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$27.29
5
28441ZE2W01 Spring, Friction for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$27.29
6
28442ZE2W01 Spring, Starter Return for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$27.29
7
28443ZE2W01 Spring, Ratchet for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$27.29
8
28444ZE2W01 Retainer, Spring for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$27.29
9
28445ZE2W01 Holder, Spring for GA36HZ GA36H GA36HA Portable Generator with Honda Gasoline Engine by MQ Multiquip
$25.00
10
28461ZE2W02 Grip, Starter for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$14.01
11
28462ZE3W01 Rope, Recoil Starter for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$8.29
12
28469ZE2W01 Grip, Reinforcement for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$27.29
13
90004ZE2W01 Screw, Center for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$27.29
14
957010600800 Bolt, Flange (6 X 8) for Multiquip Mikasa MVC70H MVC70HW Plate Tamper / Compactor
$10.11
