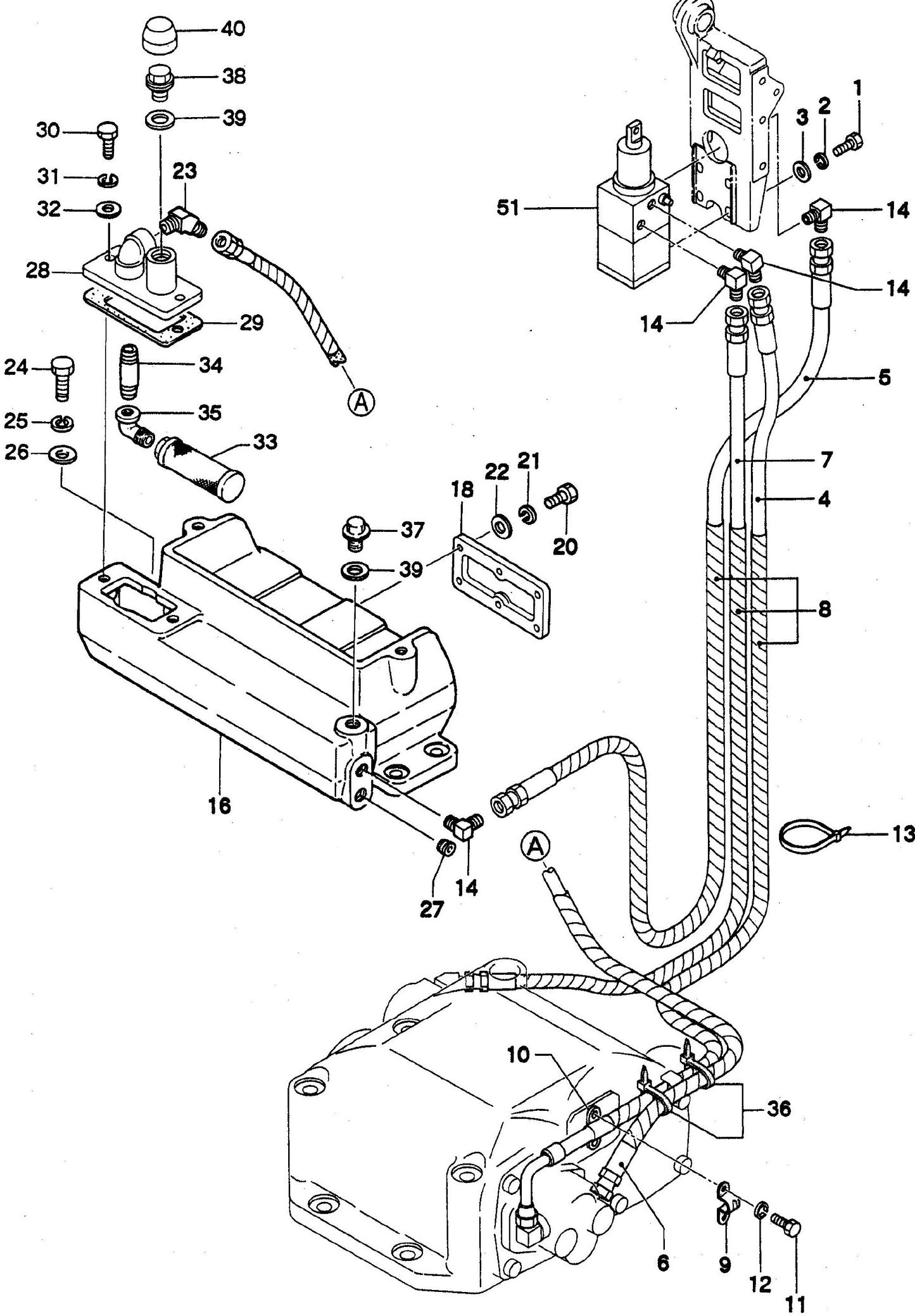

MVH304GHB Hydraulic System Assembly Parts

MVH304GHB Hydraulic System Assembly Parts

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
001220820 Bolt 8 X 20 T for Multiquip Mikasa MVC80VH Plate Tamper Compactor
$2.19
2
030208200 Lock Washer M8 for Multiquip Mikasa MT62HS Jumping Jack Rammer
$8.66
3
031108160 Pw M8 for Multiquip Mikasa MT55F Jumping Jack Rammer
$2.19
4
456451310 Oil Hose 1300L for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
Call for Price call for price call for price
5
456451340 Oil Hose 1100L for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$66.12
6
456451320 Oil Hose 730L for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$69.96
7
456451330 Oil Hose 1050L for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$79.35
8
955404271 Spiral Tube, Sr15-850L for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$19.31
9
954403060 Clamp Hc-40 for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$6.73
10
954403070 Clamp Spacer Hc-40 for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$4.99
11
001220612 Bolt 6X12 T for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$2.19
13
506010070 Clamp for MVH128GH Reversible Plate Compactor by Multiquip Mikasa
$1.99
14
954001160 Elbow 90 Pt1/4-Pf1/4 for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$16.43
16
456114080 Oil Tank for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$679.78
18
456335830 Cover (Slide), Oil Tank for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$63.82
20
001220620 Bolt 6X20 T for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$2.19
22
031106100 Washer M6 for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$2.19
23
954001280 Elbow 45 Pt1/4Xpf3/8 for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$26.75
24
001221230 Bolt 12X30 T for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$4.35
25
030212300 Washer Sw M12 for Multiquip Mikasa MT75HS Jumping Jack Rammer
$1.21
26
031112230 Pw M12 for MVH200GH Reversible Plate Compactor by Multiquip Mikasa
$2.19
27
505015380 Plug Pt1/4 for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$2.19
28
456337460 Upper Cover, Oil Tank for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$39.69
29
457445870 Packing, Oil Tank for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$27.34
30
001200820 Bolt 8X20 for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$4.35
31
030208200 Bolt 8X20 T for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$8.66
32
031108160 Plain Washer M8 for Multiquip Mikasa MVC77 Plate Tamper Compactor
$2.19
34
456447490 Joint Pipe for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$23.35
35
954001720 Elbow Pt1/4 for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$14.26
36
506010060 Clamp Tc-350 for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$5.20
37
953402781 Drain Plug M18 for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$37.07
39
953400020 Packing 19302 for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$5.49
40
457448380 Breather Cap for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
Call for Price call for price call for price
51
456337780 Selector Valve for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$1,071.01
12
030206150 Washer M6 for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$2.19
21
030206150 Washer M6 for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$2.19
33
456449280 Filter, Oil Tank for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$49.11
38
457448680 Breather Plug 1 for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$10.41
