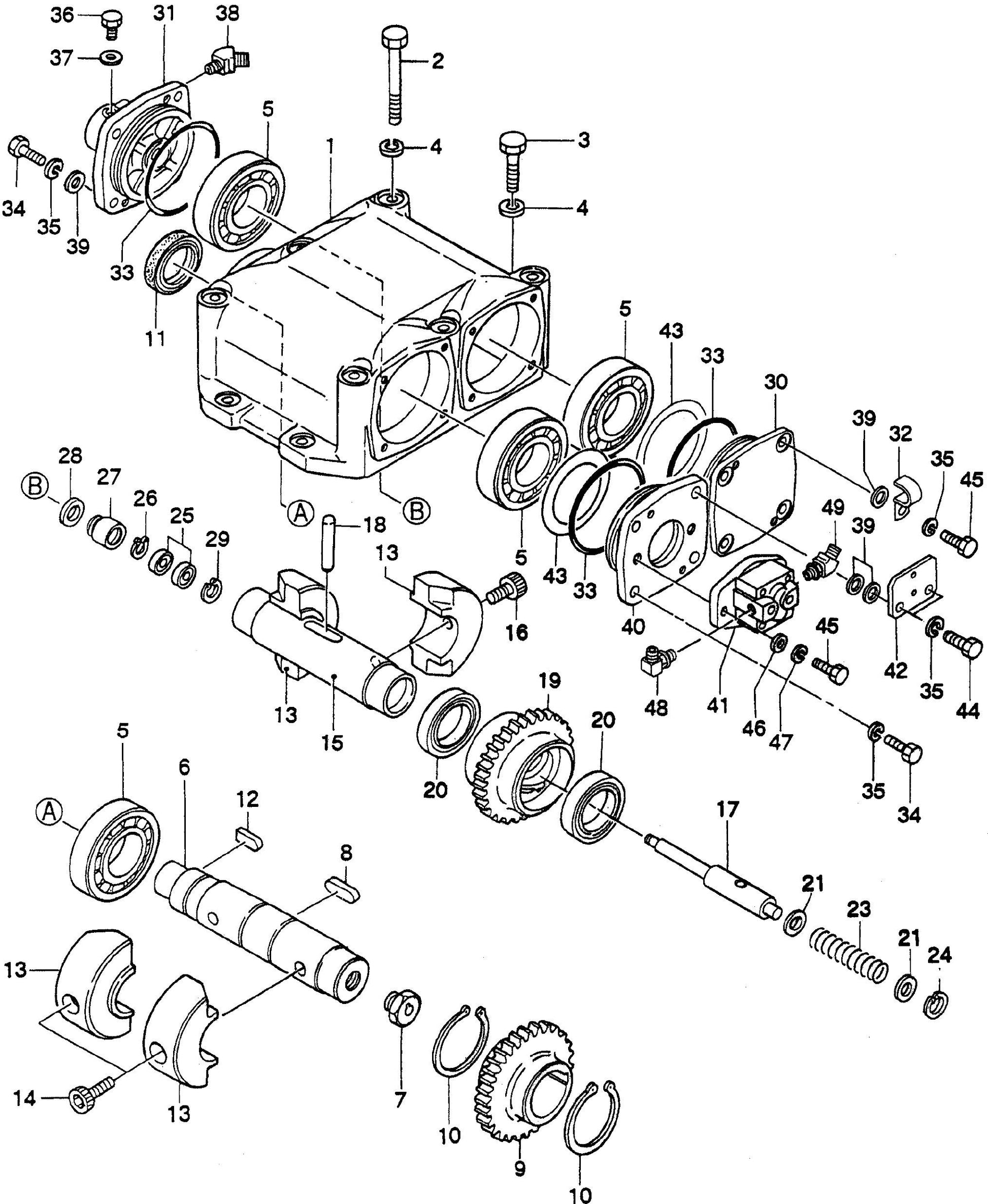

MVH304GHB Vibrator Assembly Parts

MVH304GHB Vibrator Assembly Parts

  • MVH304GHB Vibrator Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
456110250 Vibrating Case for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$1,364.95
2
001221470 Bolt 14X150 T for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$10.18
3
001221450 Bolt 14X50 T for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$5.49
4
030214350 Washer M14 for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$2.19
5
047920060 Roller Bearing Nj310Mc4 for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$222.31
6
457212410 Rotary Shaft, Drive for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$699.71
7
457445830 Adapter, Pump for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$95.55
8
951405370 Key 15X10X39 Rr for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$17.52
9
456327150 Gear, Drive for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$821.01
10
080200550 Stop Ring S-55 for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$8.36
11
060105030 Oil Seal Sb-50729 for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$66.00
12
951404970 Key 12X8X30 R for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$16.87
13
456327170 Eccentric Rotor for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$154.38
14
009120301 Socket Head Bolt 16X40T for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$36.40
15
456337670 Rotary Shaft, Driven for Multiquip Mikasa MVH306D Plate Tamper Compactor
$723.92
16
009120302 Socket Head Bolt 16X30T for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$29.20
17
456337380 Piston Rod for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$208.80
18
456010010 Knock Pin 10X70 for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$10.41
19
456327120 Gear, Driven for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$1,999.90
20
040306911 Bearing 6911C3 for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$81.72
21
455435020 Collar 17X30X3 for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$24.39
23
456451280 Spring 3.2-26.3-102L /304B for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$23.77
24
080100300 Stop Ring R-30 for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$3.29
25
042506000 Bearing 6000Zzsg for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$18.66
26
080200100 Stop Ring S-10 for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$2.19
27
455435051 Piston for Multiquip Mikasa Plate Tamper Compactor
$90.41
28
455010070 Packing for Multiquip Mikasa Plate Tamper Compactor
$27.58
29
080100260 Stop Ring for Multiquip Mikasa MVH308DZ Plate Tamper Compactor
$6.59
30
455327130 Bearing Cover for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$132.76
31
456210646 Cylinder (R) for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$477.16
32
954405550 Clamp 15 R for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$13.27
33
050101050 O-Ring G-105 for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$7.40
34
001221025 Bolt 10X25 T for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$2.19
35
030210250 Lock Washer, M10 for Multiquip Mikasa MRH800DS2 Walk Behind Tandem Roller
$2.19
47
030210250 Lock Washer, M10 for Multiquip Mikasa MRH800DS2 Walk Behind Tandem Roller
$2.19
36
001220812 Bolt 8X12 T for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$2.19
37
953404600 Copper Packing 8X16X2 for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$5.09
38
455010020 Elbow 45 15-0404 for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$17.20
39
031110160 Flat Washer, M10 for Multiquip Mikasa MRH800DS2 Walk Behind Tandem Roller
$2.19
40
457332430 Flange, Pump for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$202.58
41
457010010 Pump Fbl for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
Call for Price call for price call for price
41-1
457010090 Crescent Key 2.5X10 Gear Pump for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$10.41
42
457445840 Bracket, Clamp for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$42.37
43
952405470 Shim 90X110X0.5 for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$16.17
44
001221035 Bolt 10X35 T for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$3.29
45
001221030 Bolt 10X30 T for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$2.19
46
952405540 Washer 10.5-22-3 for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$2.19
48
954010140 Elbow 90 Ues90G02G02 for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$24.43
49
954001780 Elbow 45 Pf3/8-Pf1/4 for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$32.36
