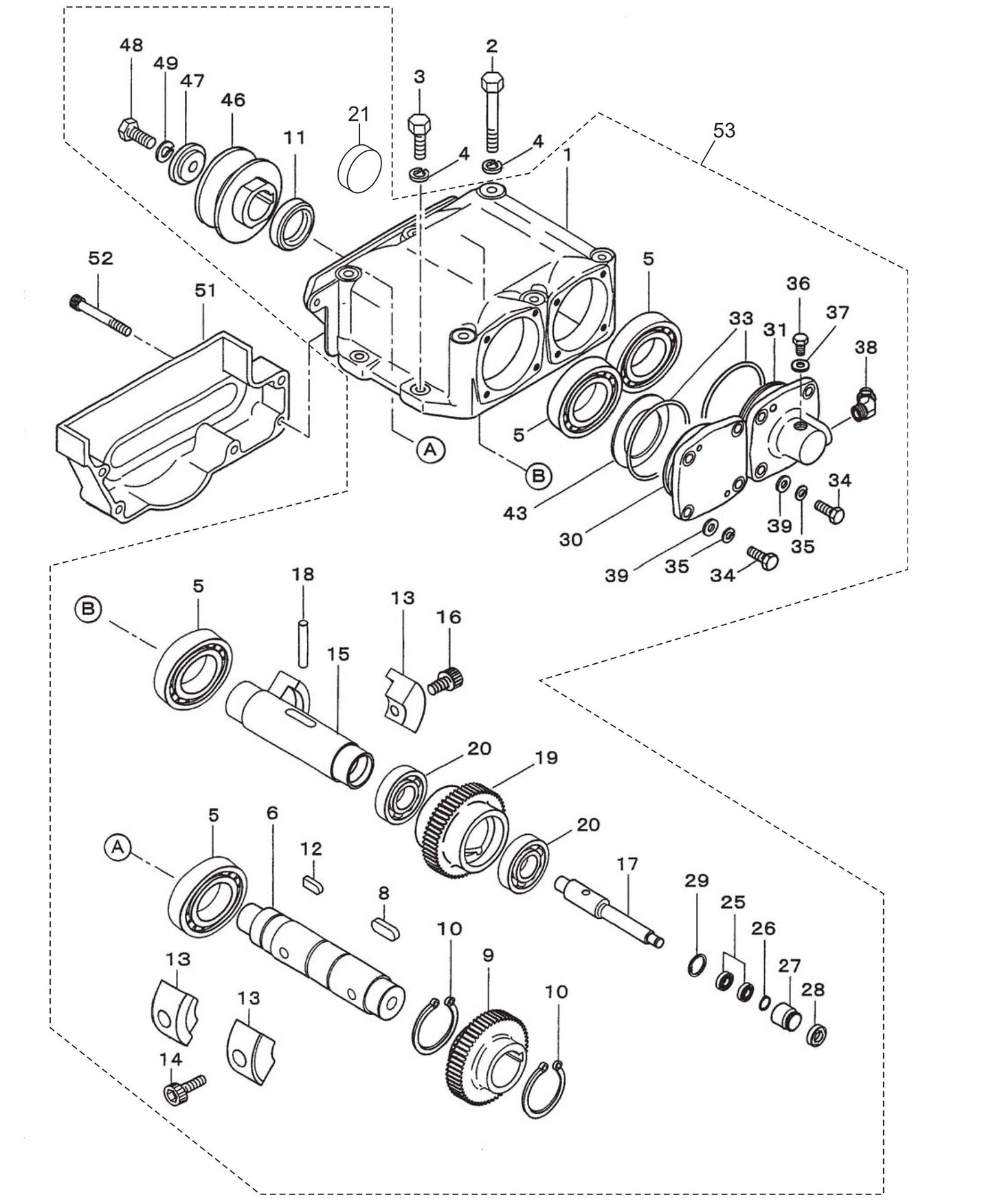

MVH306D Vibrator Assembly Parts

MVH306D Vibrator Assembly Parts

  • MVH306D Vibrator Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
464117880 Vibrating Case for Multiquip Mikasa MVH306D Plate Tamper Compactor
$1,111.46
2
001221470 Bolt 14X150 T for Multiquip Mikasa MVH306D Plate Tamper Compactor
$10.18
3
001221450 Bolt 14X50 T for Multiquip Mikasa MVH306D Plate Tamper Compactor
$5.49
4
030214350 Washer Lock M14 for Multiquip Mikasa MVH308GH Plate Tamper Compactor
$2.19
5
047920120 Roller Bearing Nj310Emc4 for Multiquip Mikasa MVH306D Plate Tamper Compactor
$222.31
6
457212410 Rotary Shaft, Drive for Multiquip Mikasa MVH306D Plate Tamper Compactor
$699.71
8
951405370 Key 15X10X39 for Multiquip Mikasa Plate Tamper Compactor
$17.52
9
456327150 Gear, Drive for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$821.01
10
080200550 Stop Ring S-55 for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$8.36
11
060105030 Oil Seal Sb-50729 for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$66.00
12
951404970 Key 12X8X30 R for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$16.87
13
464343700 Eccentric Rotator for Multiquip Mikasa MVH306D Plate Tamper Compactor
$78.62
14
009120301 Socket Head Bolt 16X40 T for Multiquip Mikasa MVH306D Plate Tamper Compactor
$36.40
15
456337670 Rotary Shaft, Driven for Multiquip Mikasa MVH306D Plate Tamper Compactor
$723.92
16
009120302 Socket Head Bolt 16X30 T for Multiquip Mikasa MVH306D Plate Tamper Compactor
$29.20
17
456337380 Piston Rod for Multiquip Mikasa MVH306D Plate Tamper Compactor
$208.80
18
456010010 Knock Pin 10X70 for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$10.41
19
464343720 Gear (Driven) for Multiquip Mikasa MVH306D Plate Tamper Compactor
$1,047.97
20
040006911 Bearing 6911 for Multiquip Mikasa MVH306D Plate Tamper Compactor
$72.89
21
953010030 Seal Cap/Sc72-8N for Multiquip Mikasa MVH306D Plate Tamper Compactor
$13.97
25
042506000 Bearing 6000Zzsg for Multiquip Mikasa MVH306D Plate Tamper Compactor
$5.49
26
080200100 Stop Ring S-10 for Multiquip Mikasa MVH306D Plate Tamper Compactor
$2.19
27
455435051 Piston for Multiquip Mikasa Plate Tamper Compactor
$90.41
28
455010070 Packing for Multiquip Mikasa Plate Tamper Compactor
$27.58
29
080100260 Stop Ring for Multiquip Mikasa MVH308GH Plate Tamper Compactor
$6.59
30
456327130 Bearing Cover for Multiquip Mikasa MVH306D Plate Tamper Compactor
$122.92
31
456210636 Cylinder (L)/(Ac) for Multiquip Mikasa MVH306D Plate Tamper Compactor
$278.69
33
050101050 O- Ring G- 105 for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$7.02
34
001221025 Bolt 10 X 25 T for Multiquip Mikasa MVC98D2 Plate Tamper Compactor
$2.19
35
030210250 Lock Washer for MTX60HD Rammer by Multiquip Mikasa
$2.31
36
011008015 Bolt 8X12 T for Multiquip Mikasa MVH306D Plate Tamper Compactor
$2.19
37
953404600 Copper Packing 8.2X16X1.6 for MVH158GH Reversible Plate Compactor by Multiquip Mikasa
$5.75
38
455010020 Elbow 45 Deg. 15-0404 for Multiquip Mikasa MVH306D Plate Tamper Compactor
$17.20
39
031110160 Flat Washer, M10 for Multiquip Mikasa MRH800DS2 Walk Behind Tandem Roller
$2.19
43
952405470 Shim 90X110X0.5 for Multiquip Mikasa MVH306D Plate Tamper Compactor
$16.17
46
464343710 Pulley for Multiquip Mikasa MVH306D Plate Tamper Compactor
$122.29
47
464457370 Washer for Multiquip Mikasa MVH306D Plate Tamper Compactor
$8.72
48
012212030 Bolt 12X30 T for Multiquip Mikasa MVH306D Plate Tamper Compactor
$4.35
49
030212300 Spring Washer M12 for Multiquip Mikasa MVC77 Plate Tamper Compactor
$1.99
51
464216600 Belt Cover (Lower) for Multiquip Mikasa MVH306D Plate Tamper Compactor
$288.17
52
001520852 Socket Head Bolt 8X60 T for Multiquip Mikasa MVH306D Plate Tamper Compactor
$4.35
53
464910020 Vibrator Assy. for Multiquip Mikasa MVH306D Plate Tamper Compactor
$5,339.63
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
