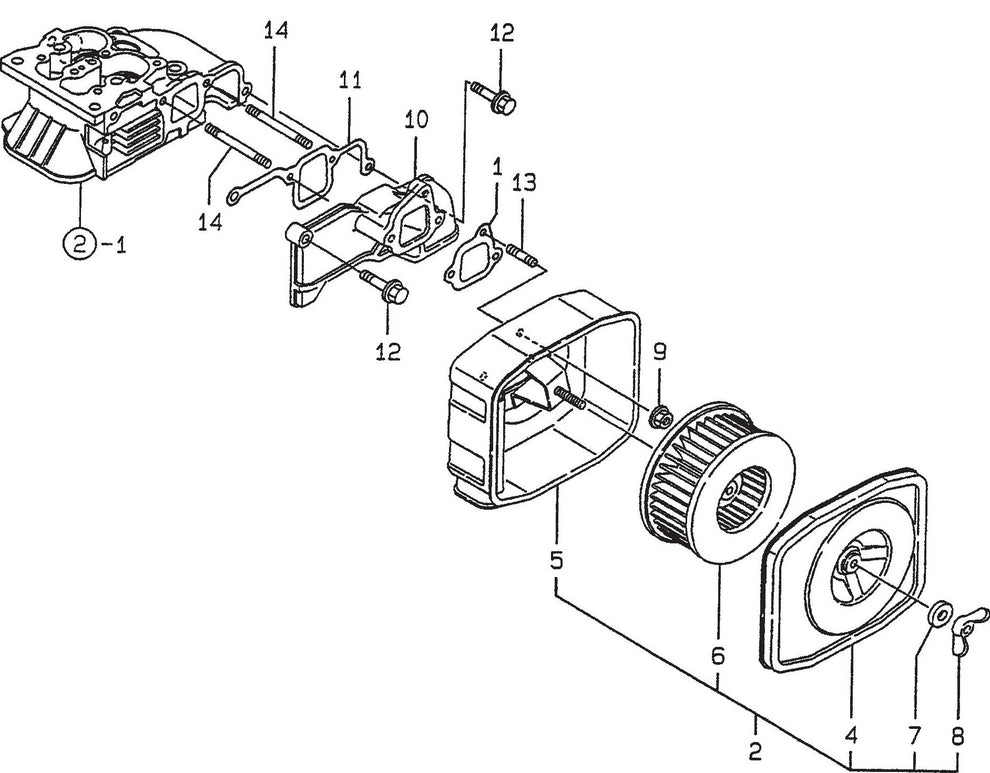

MVH306D Yanmar L-70EE Air Cleaner Assembly Parts

MVH306D Yanmar L-70EE Air Cleaner Assembly Parts

  • MVH306D Yanmar L-70EE Air Cleaner Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
11425012211 Gasket, Air Cleaner for Multiquip Mikasa MVH306D Plate Tamper Compactor
$5.16
2
71425012560 Cleaner Assy, Air for Multiquip Mikasa MVH306D Plate Tamper Compactor
$158.10
4
11425012520 Cover, Air Cleaner for Multiquip Mikasa MVH306D Plate Tamper Compactor
$47.12
5
11425012530 Case, Air Cleaner for Multiquip Mikasa MVH306D Plate Tamper Compactor
$88.42
6
11465012591 Element, Wet Air for Multiquip Mikasa MVH306D Plate Tamper Compactor
$59.58
7
11425012560 Washer M 6, Seal for Multiquip Mikasa MVH306D Plate Tamper Compactor
$3.95
8
11425012550 Wing���Nut,M6 for Multiquip Mikasa MVH306D Plate Tamper Compactor
$3.95
9
11425012300 U���Nut for Multiquip Mikasa MVH306D Plate Tamper Compactor
$2.99
10
11439912010 Pipe, Air Intake for Multiquip Mikasa MVH306D Plate Tamper Compactor
Call for Price call for price call for price
11
11435012202 Gasket, Air Intake for Multiquip Mikasa MVH306D Plate Tamper Compactor
$5.49
12
26106060252 Bolt M 6X 25 Plated for Multiquip Mikasa MT76D2 Jumping Jack Rammer
$2.99
13
26226060142 Stud M 6X 14 Plated for Multiquip Mikasa MVH306D Plate Tamper Compactor
$2.99
14
26226060552 Stud M 6X55 for MVH206D Reversible Plate Compactor by Multiquip Mikasa
$2.95
View full details

Frequently asked questions

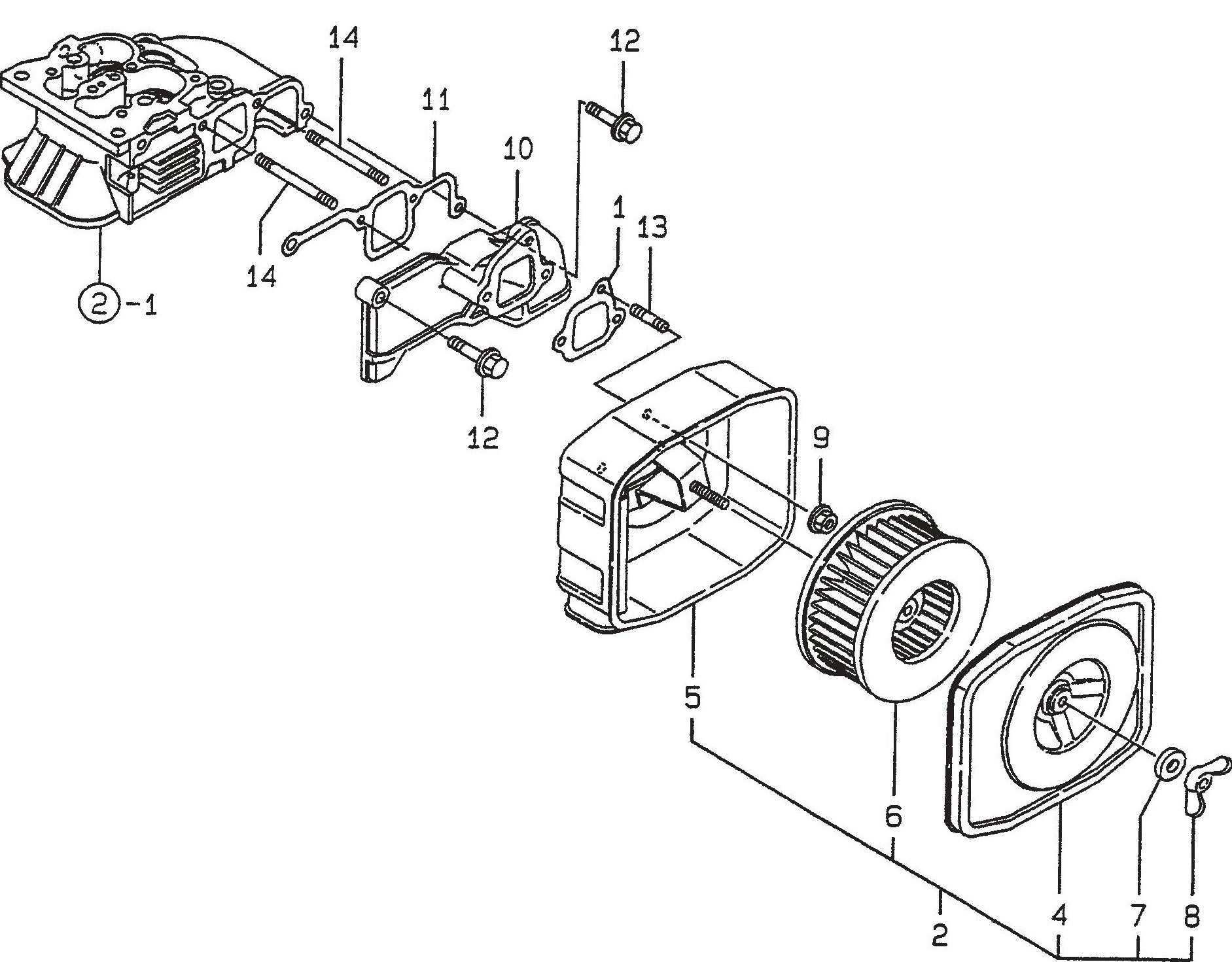

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
