MVH308DZ HATZ 1B30 Engine Crankcase Assembly Parts

MVH308DZ HATZ 1B30 Engine Crankcase Assembly Parts

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
A
50223001 Loctite Activator N, 500 Ml for Multiquip Mikasa MVH308DZ Plate Tamper Compactor
$266.27
B
50223101 Loctite 574, 50 Ml for Multiquip Mikasa MVH308DZ Plate Tamper Compactor
Call for Price call for price call for price
D
70018918 Loctite 243 50Ml for Multiquip Mikasa MVH308DZ Plate Tamper Compactor
Call for Price call for price call for price
E
50223400 Loctite 648 for Multiquip Mikasa MVH308DZ Plate Tamper Compactor
$38.03
H
70018944 Teroson Terostat 63 for Multiquip Mikasa Plate Tamper Compactor
Call for Price call for price call for price
1
01582720 Crankcase Assy for Multiquip Mikasa MVH308DZ Plate Tamper Compactor
Call for Price call for price call for price
5
40002600 Blind Rivet for Multiquip Mikasa MVH308DZ Plate Tamper Compactor
$3.95
6
01333111 Cover Sheet for Multiquip Mikasa MVH308DZ Plate Tamper Compactor
Call for Price call for price call for price
7
50502801 Cylinder Pin for Multiquip Mikasa MVH308DZ Plate Tamper Compactor
$4.99
8
50440300 O-Ring for Multiquip Mikasa MVH308DZ Plate Tamper Compactor
$3.61
9
50249102 Z Cylinder Pin for Multiquip Mikasa MVH308DZ Plate Tamper Compactor
$2.80
10
50062400 Joint A for Multiquip Mikasa MVH308DZ Plate Tamper Compactor
$2.19
11
50469101 Oil Pressure Switch for Multiquip Mikasa MVH308DZ Plate Tamper Compactor
$58.28
14
50449800 Oil Seal for Multiquip Mikasa MVH308DZ Plate Tamper Compactor
$47.45
15
04198700 Grub Screw Carb/Epa for Multiquip Mikasa MVH308DZ Plate Tamper Compactor
Call for Price call for price call for price
16
01316000 Dipstick Assy for Multiquip Mikasa MVH308DZ Plate Tamper Compactor
$17.52
17
04125000 Sealing Ring, Dipstick for Multiquip Mikasa MVH308DZ Plate Tamper Compactor
$5.49
19
50208500 Lock Washer 8 for Multiquip Mikasa MVH502DSB Plate Tamper Compactor
$7.39
20
04121900 Allen Screw for Multiquip Mikasa MVH308DZ Plate Tamper Compactor
Call for Price call for price call for price
21
04099302 Engine Bracke for Multiquip Mikasa MVH308DZ Plate Tamper Compactor
$44.79
22
04105710 Tube F. Oil Filter for Multiquip Mikasa MVH308DZ Plate Tamper Compactor
Call for Price call for price call for price
23
01542704 Oil Suction Filter Assy for Multiquip Mikasa MVH308DZ Plate Tamper Compactor
$79.09
24
50373100 Drain Plg. Magnetic M22 for Multiquip Mikasa MVH308DZ Plate Tamper Compactor
$32.48
25
50001600 Gasket for Multiquip Mikasa MVH308DZ Plate Tamper Compactor
$6.68
26
05036900 Hose Clip for Multiquip Mikasa MVH308DZ Plate Tamper Compactor
$7.61
27
04163000 T-Piece for Multiquip Mikasa MVH308DZ Plate Tamper Compactor
$21.25
29
50449700 Groove Ballbearing for Multiquip Mikasa MVH308DZ Plate Tamper Compactor
$130.43
30
04094400 Plate for Multiquip Mikasa MVH308DZ Plate Tamper Compactor
Call for Price call for price call for price
31
50564300 Countersunk Screw for Multiquip Mikasa MVH308DZ Plate Tamper Compactor
$2.19
32
01555800 Cover for Multiquip Mikasa MVH308DZ Plate Tamper Compactor
$8.33
33
03568701 Oil Supplement Plug for Multiquip Mikasa MVH308DZ Plate Tamper Compactor
$46.98
36
50475901 O-Ring for Multiquip Mikasa MVH308DZ Plate Tamper Compactor
$10.77
37
05148200 Plate Spring for Multiquip Mikasa MVH308DZ Plate Tamper Compactor
$5.49
38
50170700 Allen Screw for Multiquip Mikasa MVH308DZ Plate Tamper Compactor
$3.95
42
04042000 Washer for Multiquip Mikasa MVH308DZ Plate Tamper Compactor
$4.35
View full details

Frequently asked questions

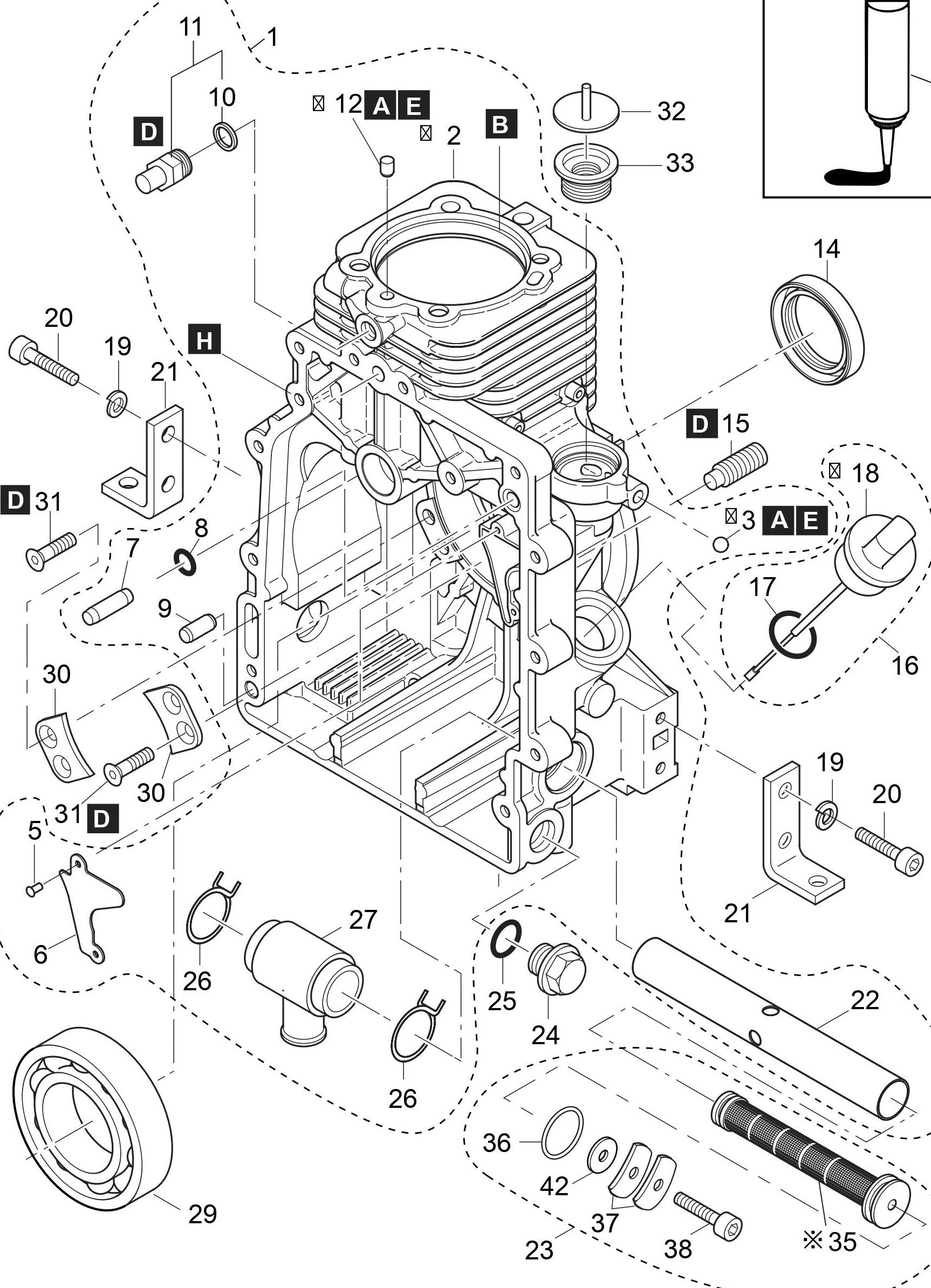

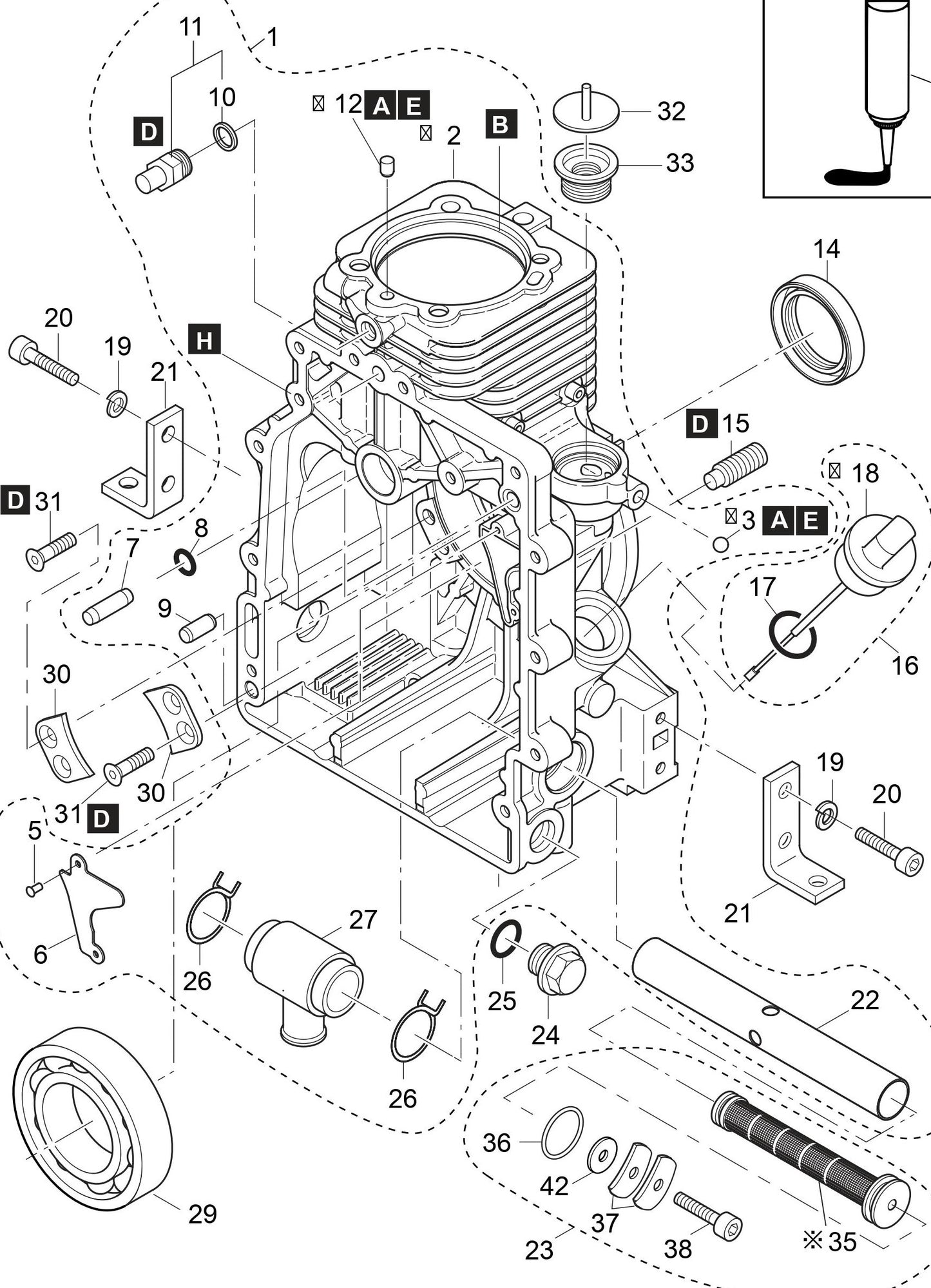

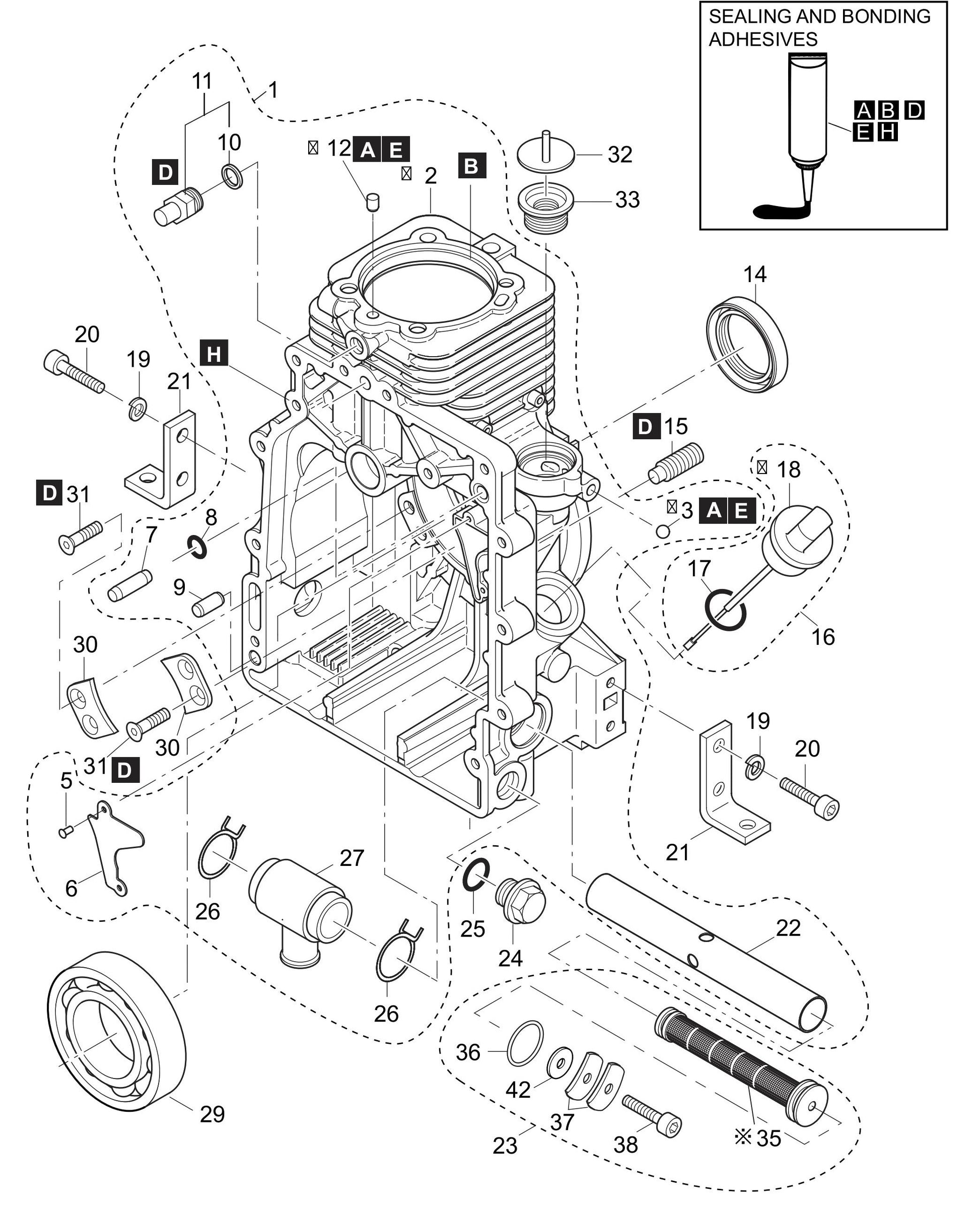

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
