MVH308GH Honda GX270UT2SMXC/SCM Engine Carburetor Assembly Parts

MVH308GH Honda GX270UT2SMXC/SCM Engine Carburetor Assembly Parts

  • MVH308GH Honda GX270UT2SMXC/SCM Carburetor Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
16010ZE2812 Gasket Set for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$32.32
2
16011ZA0931 Valve Set, Float for Multiquip Mikasa MVH308GH Plate Tamper Compactor
$56.27
3
16013Z1C003 Float Set for Multiquip Mikasa MVH308GH Plate Tamper Compactor
$52.04
4
16015Z5T901 Chamber Set, Float . for Multiquip Mikasa MVH308GH Plate Tamper Compactor
$64.70
5
16016ZH7W01 Screw Set for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$26.82
6
16024Z5T901 Screw Set, Drain for Multiquip Mikasa MVH308GH Plate Tamper Compactor
$18.09
7
16028Z5T901 Screw Set for Multiquip Mikasa MVH308GH Plate Tamper Compactor
$14.84
8
16044ZE2005 Choke Set for Multiquip Mikasa MVH308GH Plate Tamper Compactor
$43.93
9
16100Z5K702 Caburetor Assy. Be75N A (��� Engine) for Multiquip Mikasa MVH308GH Plate Tamper Compactor
$104.31
9
16100Z5K781 Caburetor Assy. Be75T A (��� Engine) for Multiquip Mikasa MVH308GH Plate Tamper Compactor
$147.39
10
16124ZE0005 Screw, Throttle Stop for Multiquip Mikasa MVH308GH Plate Tamper Compactor
$25.93
11
16166Z5K701 Nozzle Main for Multiquip Mikasa MVH308GH Plate Tamper Compactor
$5.90
13
16955283000 Packing, Cup for Multiquip Mikasa MVC88VTH MVC88CTHW Plate Tampers
$9.63
14
16211ZE2010 Insulator, Carburetor for Multiquip Mikasa MVH308GH Plate Tamper Compactor
$17.01
15
16220ZA0702 Spacer Comp., Carburetor for Multiquip Mikasa MVH308GH Plate Tamper Compactor
$20.27
16
16221Z5K000 Packing, Carburetor for Multiquip Mikasa MVH308GH Plate Tamper Compactor
$2.19
17
16212Z5K000 Packing, Insulator for Multiquip Mikasa MVH308GH Plate Tamper Compactor
$2.19
18
16610ZE1000 Choke Lever Comp. for Multiquip Mikasa MVH308GH Plate Tamper Compactor
$19.10
19
16953ZE1812 Lever, Cock for Multiquip Mikasa MVH308GH Plate Tamper Compactor
$17.52
20
16954ZE1812 Plate, Lever Setting for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$7.39
21
16956ZE1811 Spring, Cock Lever for Multiquip Mikasa MVH308GH Plate Tamper Compactor
$7.24
22
16957ZE1812 Gasket, Valve for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$7.65
23
16967ZE0811 Cup, Fuel Strainer for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$33.19
24
93500030060H Screw 3X6 for Multiquip Mikasa MVH308GH Plate Tamper Compactor
$27.29
25
9430520122 Pin, Spring (2 X 12) for Multiquip Mikasa MVHR60HW Plate Tamper Compactor
$27.29
26
99101ZH80950 Jet, Main #95 for Multiquip Mikasa MVH308GH Plate Tamper Compactor
$27.29
27
99204ZE20380 Jet Set, Pilot, #38 for Multiquip Mikasa MVH308GH Plate Tamper Compactor
$27.29
37
16959Z5T901 Filter, Cup for Multiquip Mikasa MVH308GH Plate Tamper Compactor
$25.82
38
16141Z0S003 Washer, Flat. for Multiquip Mikasa MVH308GH Plate Tamper Compactor
$2.19
26
99101ZH80920 Jet, Main #92 for Multiquip Mikasa MVH308GH Plate Tamper Compactor
$9.98
View full details

Frequently asked questions

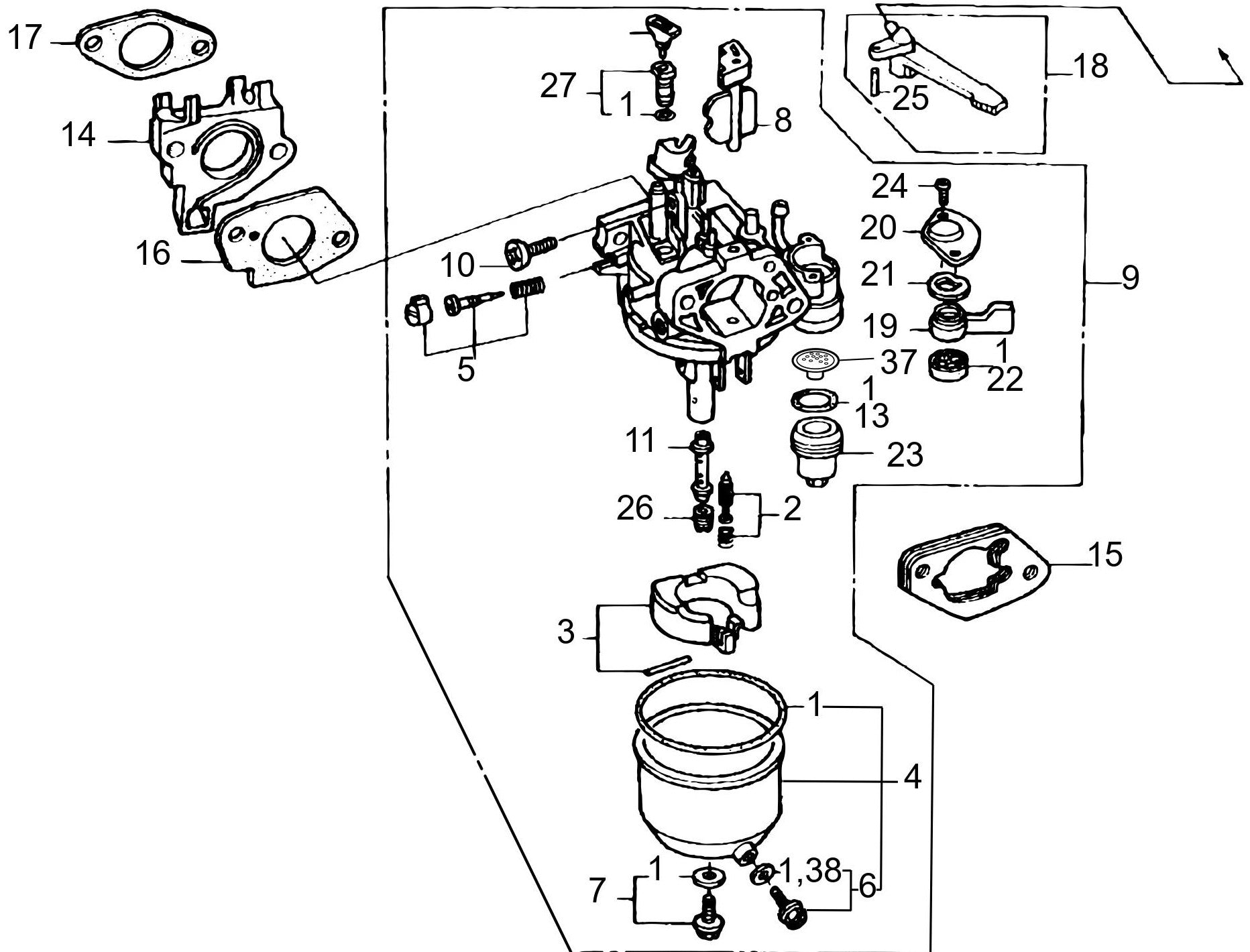

How do I use this diagram?
