MVH308GH Honda GX270UT2SMXC/SCM Engine Cylinder Barrel Assembly Parts

MVH308GH Honda GX270UT2SMXC/SCM Engine Cylinder Barrel Assembly Parts

  • MVH308GH Honda GX270UT2SMXC/SCM Cylinder Barrel Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
12000Z5K406 Barrel Assy., Cylinder for Multiquip Mikasa MVH308GH Plate Tamper Compactor
$257.70
3
16541ZE2010 Shaft, Governor Arm for Multiquip Mikasa MVH308GH Plate Tamper Compactor
$15.47
6
90131896650 Bolt, Drain Plug for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$27.29
7
90446KE1000 Washer, 8.2X17X0.8 for Multiquip Mikasa MVH308GH Plate Tamper Compactor
$27.29
8
91201Z1D003 Oil Seal, 30X46X8 for Multiquip Mikasa MVH308GH Plate Tamper Compactor
$19.07
9
91353671003 O- Ring 13.5X1.5 for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$27.29
10
9405010000 Flange Nut M10 for Multiquip Mikasa MVB150H Plate Tamper / Compactor
$27.29
11
031112230 Drain Washer for Multiquip Mikasa MRH800GS Walk Behind Tandem Roller
$2.19
12
9425110000 Pin, Lock (10 Mm) for GA36HZ GA36H GA36HA Portable Generator with Honda Gasoline Engine by MQ Multiquip
$2.95
13
957010601200 Bolt Flange (6X12) for GA36HZ GA36H GA36HA Portable Generator with Honda Gasoline Engine by MQ Multiquip
$3.25
16
354800ZF6003 Switch Assy., Oil Level for Multiquip Mikasa MVH308GH Plate Tamper Compactor
$81.71
View full details

Frequently asked questions

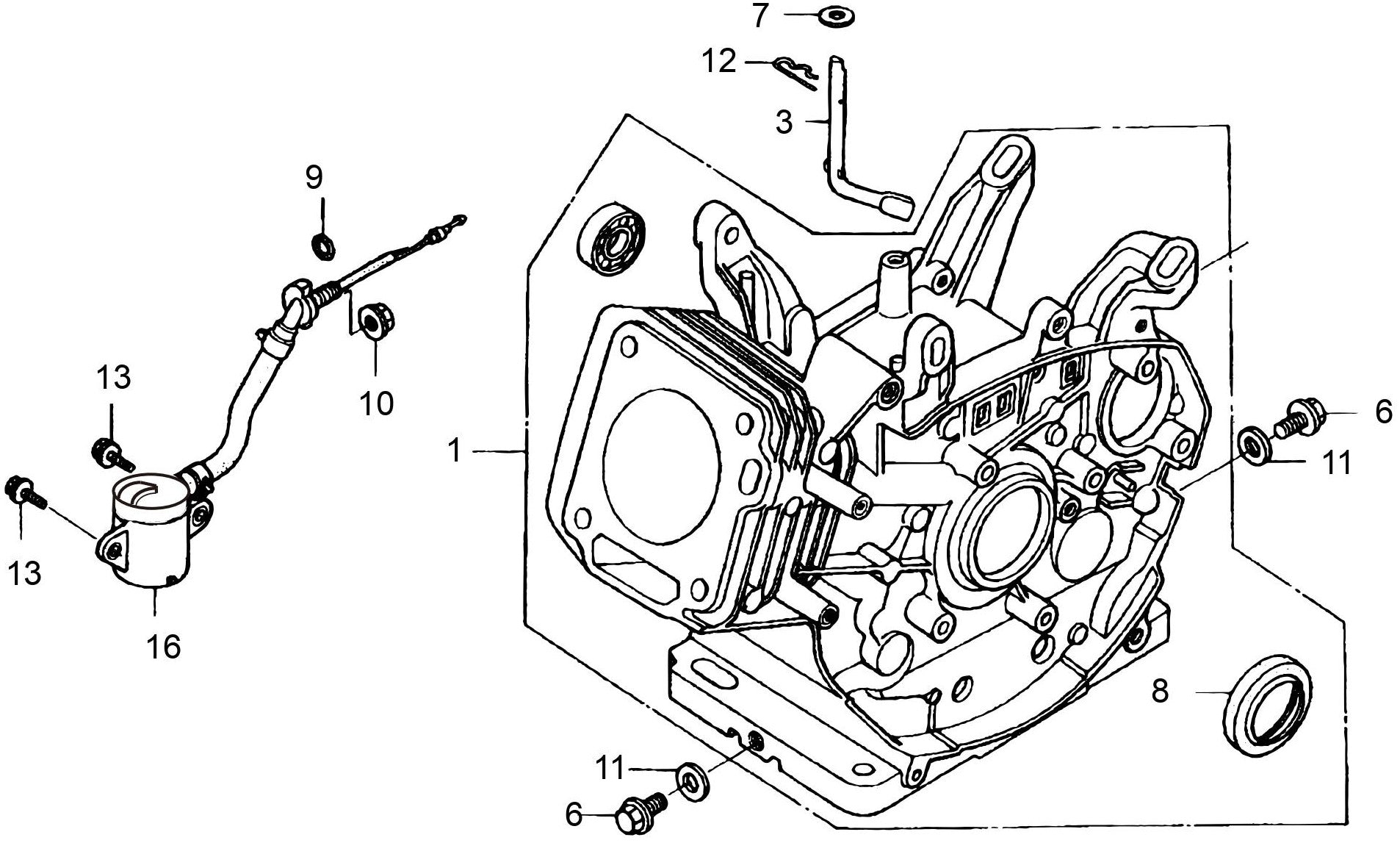

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
