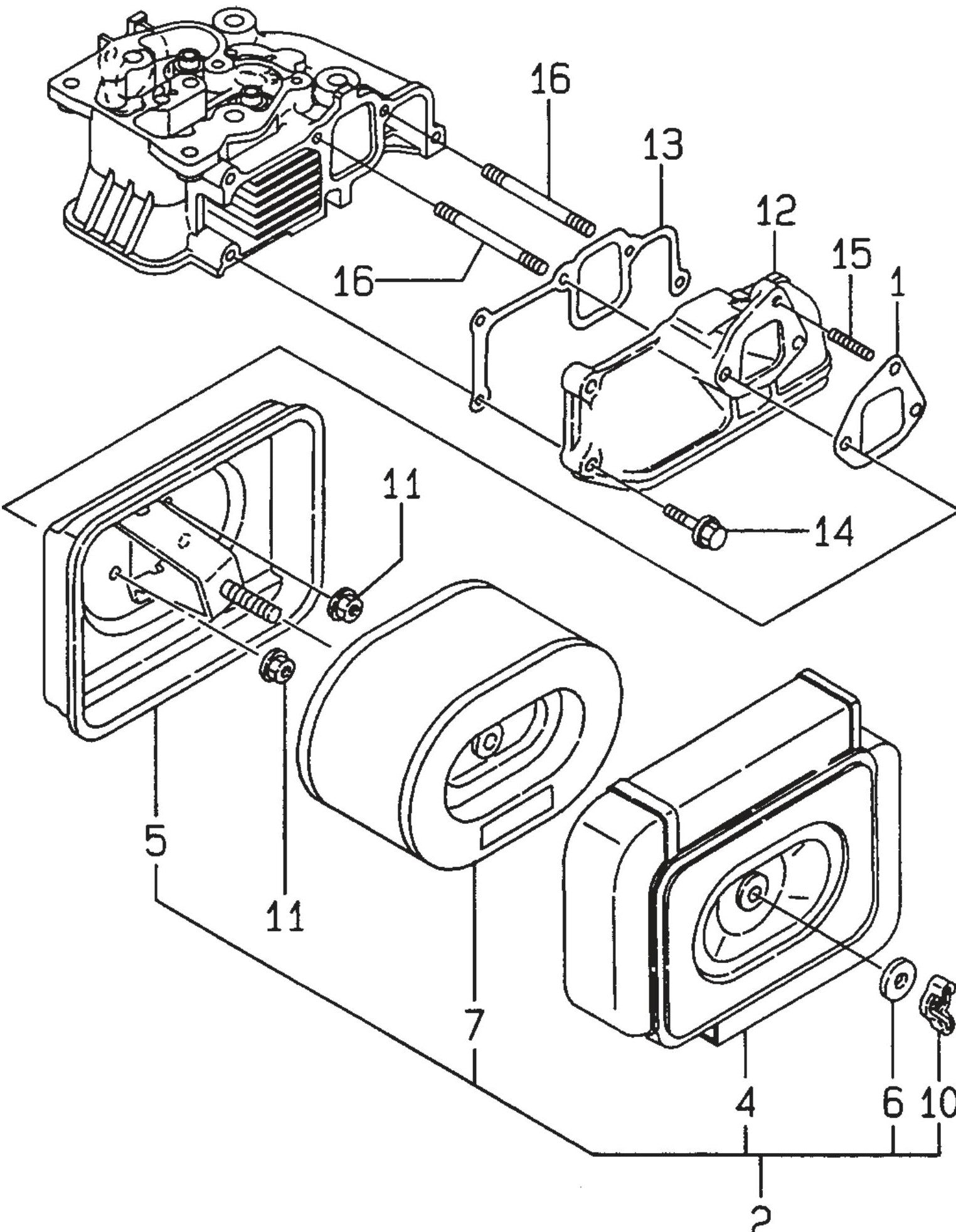

MVH402DSB YANMAR L100EE-DEVMK1 Air Cleaner Assembly Parts

MVH402DSB YANMAR L100EE-DEVMK1 Air Cleaner Assembly Parts

  • MVH402DSB YANMAR L100EE-DEVMK1 Air Cleaner Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
11465012211 Gasket, Air Cleaner for Multiquip Mikasa MVH402DSB Plate Tamper Compactor
$7.99
2
71465012560 Cleaner Assy. Air for Multiquip Mikasa MVH402DSB Plate Tamper Compactor
$196.59
4
11465012520 Cover, Air Cleaner for Multiquip Mikasa MVH402DSB Plate Tamper Compactor
$90.40
5
11465012530 Case, Air Cleaner for Multiquip Mikasa MVH402DSB Plate Tamper Compactor
$93.15
6
11425212560 Washer M 8, Seal for Multiquip Mikasa MVH402DSB Plate Tamper Compactor
$4.99
7
11465012590 Element W/Pre-Filter for Multiquip Mikasa MVH402DSB Plate Tamper Compactor
$40.24
10
11425212550 Wing, Nut M 8 for Multiquip Mikasa MVH402DSB Plate Tamper Compactor
$3.29
11
11425012300 U- Nut for Multiquip Mikasa MVH402DSB Plate Tamper Compactor
$2.99
12
11469912020 Pipe, Air Intake for Multiquip Mikasa MVH402DSB Plate Tamper Compactor
$43.75
13
11465012301 Gasket, Air Intake for Multiquip Mikasa MVH402DSB Plate Tamper Compactor
$5.07
14
26106060252 Bolt M 6X 25 Plated for Multiquip Mikasa MT76D2 Jumping Jack Rammer
$2.99
15
26226060142 Stud M 6X 14 Plated for Multiquip Mikasa MVH306D Plate Tamper Compactor
$2.99
16
26226060752 Studm6X75 for Multiquip Mikasa MVH402DSB Plate Tamper Compactor
$2.99
View full details
