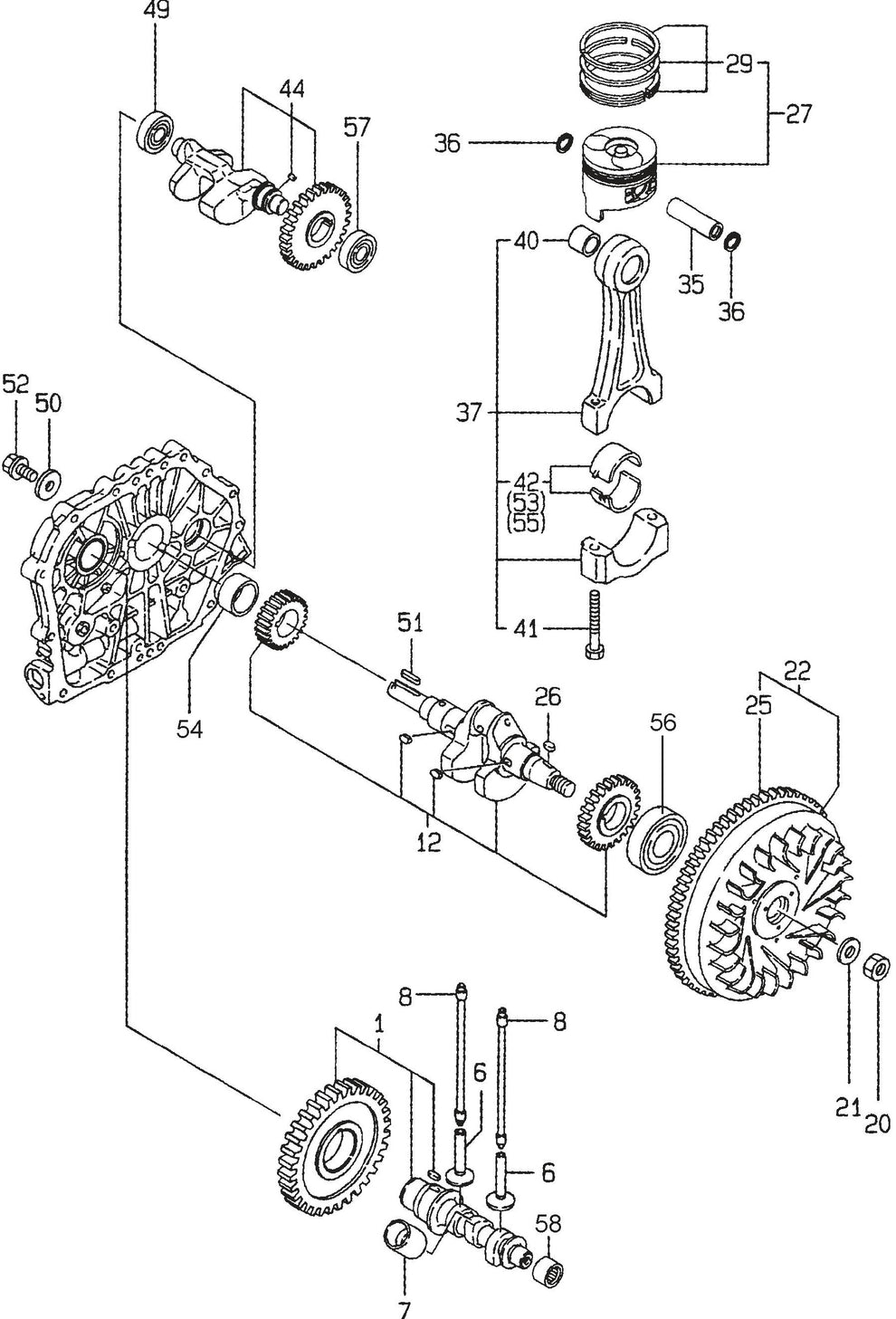

MVH402DSB YANMAR L100EE-DEVMK1 Crankshaft, Piston And Camshaft Assembly Parts

MVH402DSB YANMAR L100EE-DEVMK1 Crankshaft, Piston And Camshaft Assembly Parts

  • MVH402DSB YANMAR L100EE-DEVMK1 Crankshaft, Piston And Camshaft Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
71466014100 Camshaft Assy., D for Multiquip Mikasa MVH402DSB Plate Tamper Compactor
$321.38
6
11465014200 Tappet for Multiquip Mikasa MVH402DSB Plate Tamper Compactor
$33.51
7
11477114260 Tappet, F.O for Multiquip Mikasa MVH402DSB Plate Tamper Compactor
$56.49
8
11465014401 Rod, Push for Multiquip Mikasa MVH402DSB Plate Tamper Compactor
$26.19
12
71465421730 Crankshaft Assy. for Multiquip Mikasa MVH402DSB Plate Tamper Compactor
$654.31
20
12271001220 Nut, M18 for Multiquip Mikasa MVH402DSB Plate Tamper Compactor
$19.38
21
11465021551 Washer, Flywheel for Multiquip Mikasa MVH402DSB Plate Tamper Compactor
$10.51
22
11466221593 Flywheel, Dej., W/Gear for Multiquip Mikasa MVH402DSB Plate Tamper Compactor
Call for Price call for price call for price
25
11466221601 Gear, Ring for Multiquip Mikasa MVH402DSB Plate Tamper Compactor
$225.99
26
22512050140 Key,5X14 for Multiquip Mikasa MVH402DSB Plate Tamper Compactor
$3.95
27
71465222720 Piston, W/Rings for Multiquip Mikasa MVH402DSB Plate Tamper Compactor
$227.06
29
71497022500 Ring Set, Piston for Multiquip Mikasa MVH402DSB Plate Tamper Compactor
$86.03
35
11469922300 Pin, Piston D=23 for Multiquip Mikasa MVH402DSB Plate Tamper Compactor
$46.00
36
12979222400 Circlip 23 for Multiquip Mikasa MVH402DSB Plate Tamper Compactor
$3.95
37
71465023100 Rod Assy., Connecting for Multiquip Mikasa MVH402DSB Plate Tamper Compactor
$258.39
40
12406023100 Bush, Piston Pin for Multiquip Mikasa MVH402DSB Plate Tamper Compactor
$12.91
41
10530023200 Bolt, Rod for Multiquip Mikasa MVH402DSB Plate Tamper Compactor
$8.35
42
71465023600 Bearing, Crankpin for Multiquip Mikasa MVH402DSB Plate Tamper Compactor
$31.76
44
71497028100 Shaft Assy., Balancer for Multiquip Mikasa MVH402DSB Plate Tamper Compactor
$208.96
49
24101062034 Ball Bearing for Multiquip Mikasa MVH402DSB Plate Tamper Compactor
$17.42
50
16031014550 Washer for Multiquip Mikasa MVH402DSB Plate Tamper Compactor
$16.65
51
22512070360 Key7X36 for Multiquip Mikasa MVH402DSB Plate Tamper Compactor
$4.99
52
26106080202 Bolt M 8 X 20 Plated for Multiquip Mikasa MRH800DS2 Walk Behind Tandem Roller
$2.95
53
71465023610 Bearing, Pin U.S=0.25 for Multiquip Mikasa MVH402DSB Plate Tamper Compactor
$31.63
55
71465023620 Bearing, Pin U.S=0.50 for Multiquip Mikasa MVH402DSB Plate Tamper Compactor
$29.57
57
24101063034 Ball Bearing for Multiquip Mikasa MVH402DSB Plate Tamper Compactor
$14.74
54
11465002100 Bearing, Main for Multiquip Mikasa MVH402DSB Plate Tamper Compactor
$13.83
56
11465002150 Ball Bearing for Multiquip Mikasa MVH402DSB Plate Tamper Compactor
$84.55
58
24162152112 Needle Bearing for Multiquip Mikasa MT86D2 Jumping Jack Rammer
$29.50
