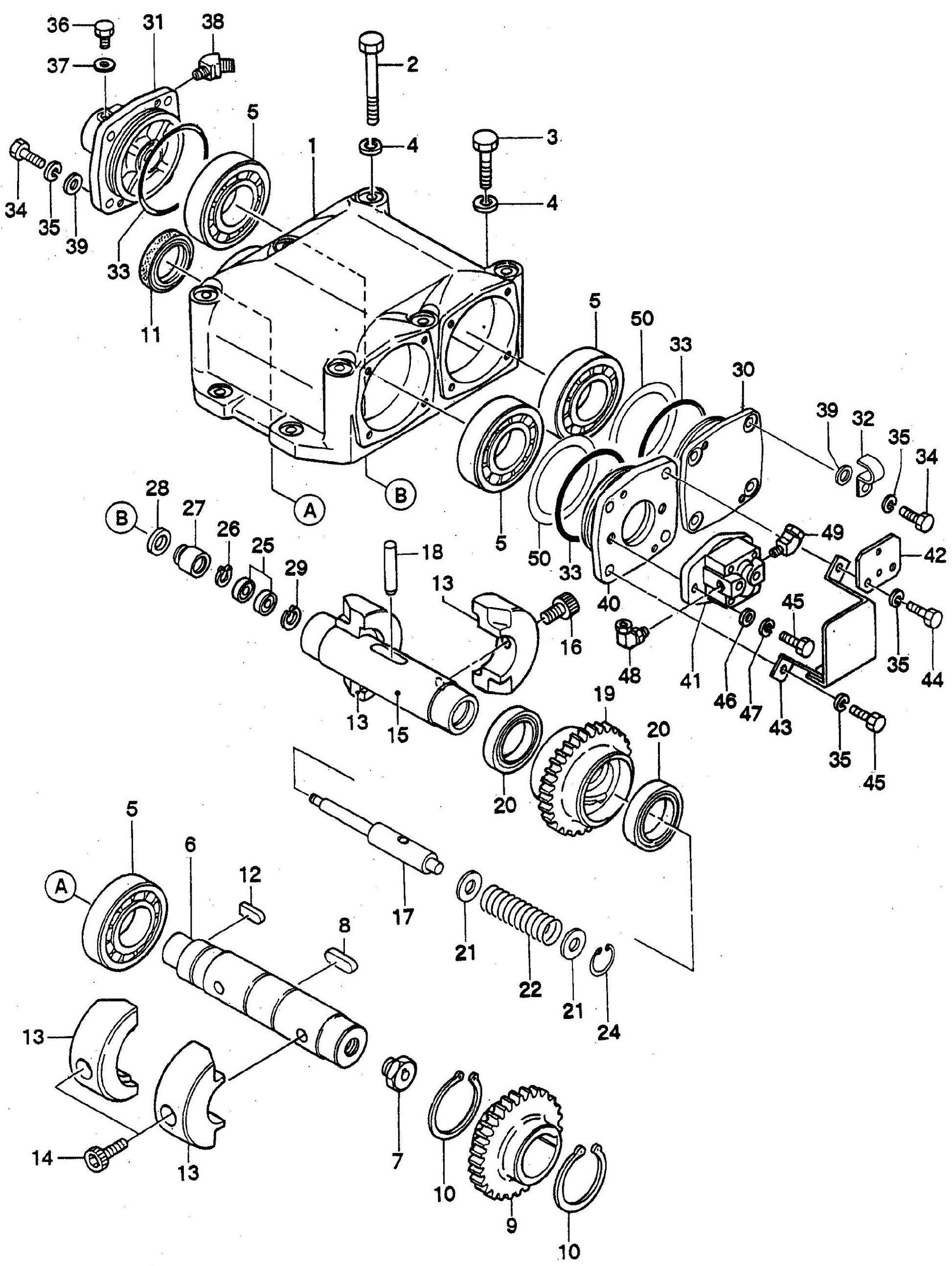

MVH402GHB Vibrator Assembly Parts

MVH402GHB Vibrator Assembly Parts

  • MVH402GHB Vibrator Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
457112460 Vibrating Case for Multiquip Mikasa MVH402GHB Plate Tamper Compactor
$1,160.97
2
001221470 Bolt 14X150 T for Multiquip Mikasa MVH402GHB Plate Tamper Compactor
Call for Price call for price call for price
3
001221450 Bolt 14X50 T for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$5.49
4
030214350 Washer M14 for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$2.19
5
047920060 Roller Bearing Nj310Mc4 for Multiquip Mikasa MVH402GHB Plate Tamper Compactor
$222.31
6
457212410 Rotary Shaft, Drive for Multiquip Mikasa MVH402GHB Plate Tamper Compactor
$699.71
7
457445830 Adapter, Pump for Multiquip Mikasa MVH402GHB Plate Tamper Compactor
$95.55
7
457445831 Adapter, Pump (30L) for Multiquip Mikasa MVH402GHB Plate Tamper Compactor
$95.55
8
951405370 Key 15X10X39 Rr for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$17.52
9
456327150 Gear, Drive for Multiquip Mikasa MVH402GHB Plate Tamper Compactor
$821.01
10
080200550 Stop Ring S-55 for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$8.36
11
060105030 Oil Seal Sb- 50729 for Multiquip Mikasa MVH402GHB Plate Tamper Compactor
$66.00
12
951404970 Key 12X8X30 R for Multiquip Mikasa MVH402GHB Plate Tamper Compactor
$16.87
13
457332420 Eccentric Rotor for Multiquip Mikasa MVH402GHB Plate Tamper Compactor
$150.05
14
009120301 Socket Head Bolt 16X40 for Multiquip Mikasa Plate Tamper Compactor
$36.40
15
456337670 Rotary Shaft, Driven for Multiquip Mikasa MVH402GHB Plate Tamper Compactor
$723.92
16
009120302 Socket Head Bolt 16X30 for Multiquip Mikasa Plate Tamper Compactor
$29.20
17
456337380 Piston Rod for Multiquip Mikasa MVH402GHB Plate Tamper Compactor
$208.80
18
456010010 Knock Pin 10X70 for Multiquip Mikasa MVH402GHB Plate Tamper Compactor
$10.41
19
456327120 Gear, Driven for Multiquip Mikasa MVH402GHB Plate Tamper Compactor
$1,999.90
20
040006911 Bearing 6911 for Multiquip Mikasa MVH402GHB Plate Tamper Compactor
$72.89
21
455435020 Collar 17X30X3 for Multiquip Mikasa MVH402GHB Plate Tamper Compactor
$24.39
22
456451280 Spring 3.2-26.3-102L for Multiquip Mikasa MVH402GHB Plate Tamper Compactor
$23.77
24
080100300 Stop Ring R- 30 for Multiquip Mikasa MVH402GHB Plate Tamper Compactor
$3.29
25
042506000 Bearing 6000Zzsg for Multiquip Mikasa MVH402GHB Plate Tamper Compactor
$18.66
26
080200100 Stop Ring S-10 for Multiquip Mikasa MVH402GHB Plate Tamper Compactor
$2.19
27
455435051 Piston for Multiquip Mikasa Plate Tamper Compactor
$90.41
28
455010070 Packing for Multiquip Mikasa Plate Tamper Compactor
$27.58
29
080100260 Stop Ring for Multiquip Mikasa Plate Tamper Compactor
$6.59
30
456327130 Bearing Cover for Multiquip Mikasa MVH402GHB Plate Tamper Compactor
$122.92
31
456210646 Cylinder (R) for Multiquip Mikasa MVH402GHB Plate Tamper Compactor
$477.16
32
954405550 Clamp 15R for Multiquip Mikasa MVH402GHB Plate Tamper Compactor
$13.27
33
050101050 O-Ring G-105 for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$7.40
34
001221025 Bolt 10X25 T for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$2.19
35
030210250 Lock Washer for MTX60HD Rammer by Multiquip Mikasa
$2.31
47
030210250 Lock Washer for MTX60HD Rammer by Multiquip Mikasa
$2.31
36
001220812 Bolt 8X12 T for Multiquip Mikasa MVH402GHB Plate Tamper Compactor
$2.19
37
953404600 Copper Packing 8 X 16 X 2 for MVH200GH Reversible Plate Compactor by Multiquip Mikasa
$5.75
38
455010020 Elbow 45 15-0404 for Multiquip Mikasa MVH402GHB Plate Tamper Compactor
$17.20
39
031110160 Flat Washer, M10 for Multiquip Mikasa MRH800DS2 Walk Behind Tandem Roller
$2.19
40
457332430 Flange, Pump for Multiquip Mikasa MVH402GHB Plate Tamper Compactor
$202.58
41
457010010 Pump Fbl for Multiquip Mikasa MVH402GHB Plate Tamper Compactor
Call for Price call for price call for price
42
457445840 Bracket, Clamp for Multiquip Mikasa MVH402GHB Plate Tamper Compactor
$42.37
43
457212420 Pump Cover for Multiquip Mikasa MVH402GHB Plate Tamper Compactor
$109.35
44
001221035 Bolt 10X35 T for Multiquip Mikasa MVH304GHB Plate Tamper Compactor
$3.29
45
001221030 Bolt 10 X 30 T for MVH200GH Reversible Plate Compactor by Multiquip Mikasa
$2.19
46
952405540 Washer 10.5- 22- 3 for Multiquip Mikasa MVH402GHB Plate Tamper Compactor
$2.19
48
954010140 Elbow 90 Ues90G02G02 for Multiquip Mikasa MVH402GHB Plate Tamper Compactor
$24.43
49
954001780 Elbow 45 Pf3/8- Pf1/4 for Multiquip Mikasa MVH402GHB Plate Tamper Compactor
$32.36
50
952405470 Shim 90X110X0.5 for Multiquip Mikasa MVH402GHB Plate Tamper Compactor
$16.17
